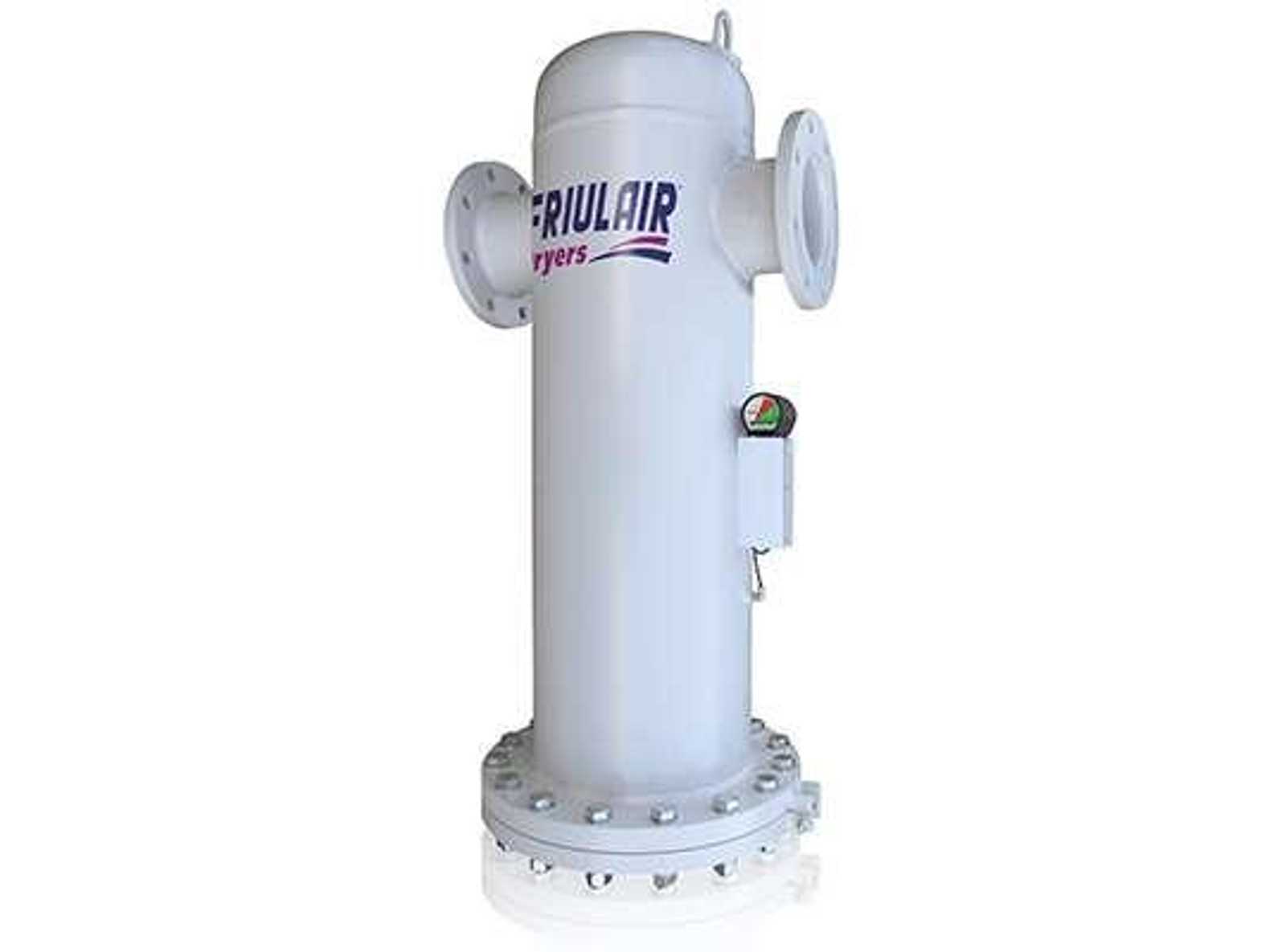

FW
FLANGED FILTERS FOR COMPRESSED AIR
Flow rate: 1 368 ÷ 24 620 m3/h
The FW filter range is suitable for maxi flow rates with four filtration types to meet air quality requirements, under ISO 8573.1.
Share
The FW filter range is suitable for maxi flow rates with four filtration types to meet air quality requirements, under ISO 8573.1. The carbon steel body is treated to resist internal and external corrosion; the lower flange, hinged to the body, allows easy replacement of filter elements by a single operator. A differential pressure gauge is supplied as standard on all sizes for easy filter status monitoring. Different cartridge colours identify their filtration degree. Automatic drain as standard (manual on activated carbon Z range).
Main components
- Vessel CE marked in accordance with PED 2014/68/EU Directive. ASME Section VIII Div. 1 standard is also available.
- Differential pressure gauge and
- Condensate drain
- Filter body is pre-treated with electrophoretic coating
- Lower flange provided with a hinge and handle mechanism
Vessel design conditions:
- Pressure: 16 barg
- Temperature: + 120°C
Recommended working temperature
- 1,5 ÷ 65°C with cartridge P (3 micron); S (1 micron); X (0.01 micron)
- 1,5 ÷ 45°C with cartridge Z (carbon attivo)
Data refer to the following nominal condition: inlet air temperature +35 °C, inlet air pressure 7 barg.
[*] Filtration grade: P (3 micron); S (1 micron); X (0.01 micron) and Z (carbon attivo).
| Filtration Grade | Air Quality | Application example |
| P SERIES | Filter capable to separate emulsion and particles down to 3 micron | Normally installed on the inlet of dryers. Ideal as pre-filter for on-line filters (series S-X-Z), and for vacuum pumps, pneumatic blowing plants. |
| S SERIES | Filter capable to separate particles down to 1 micron, liquid and oil included. Maximum contents of residual oil 0,1 mg/m 3 | Normally used on outlet of dryers as X grade pre-filter. Used to prevent the deterioration of the pipes of compressed air plants, for surface treatment, on vacuum pump exhaust, on compressed air motors. and as post-filter for adsorption dryers. |
| X SERIES 0.01 MICRON | Oil removing filter capable to separate residual oil and extremely small particles down to 0,01 mg/m3. 3It produces air technical free from oil. | Normally used as a pre filter at the entrance of the dryer by absorption and active carbon filters; post filter at the delivery of the frigorific cycle dryers. Also ideal for the protection of the control systems, pneumatic transport, varnishing systems, etc. |
| Z SERIES Activated carbon | Activated carbon filter for the elimination of oil vapours and odour. It lowers the maximum contents of residual oil to 0,005 mg/m3.3 | Used in the pharmaceutical industry, for dental applications, in photographic workshops, packaging and galvanic treatments. |
MDR04
Manual condensate drain
SCG20
Automatic float condensate drain
SCE02
Automatic timed condensate drain
SCE05
Automatic timed condensate drain
SEC11
Zero Loss Drain
DIG02
High accuracy differential gauge
DIG04
Differential gauge
DIG06
Differential gauge with volt free electric contact (cable L. 1,80 m)
Main features

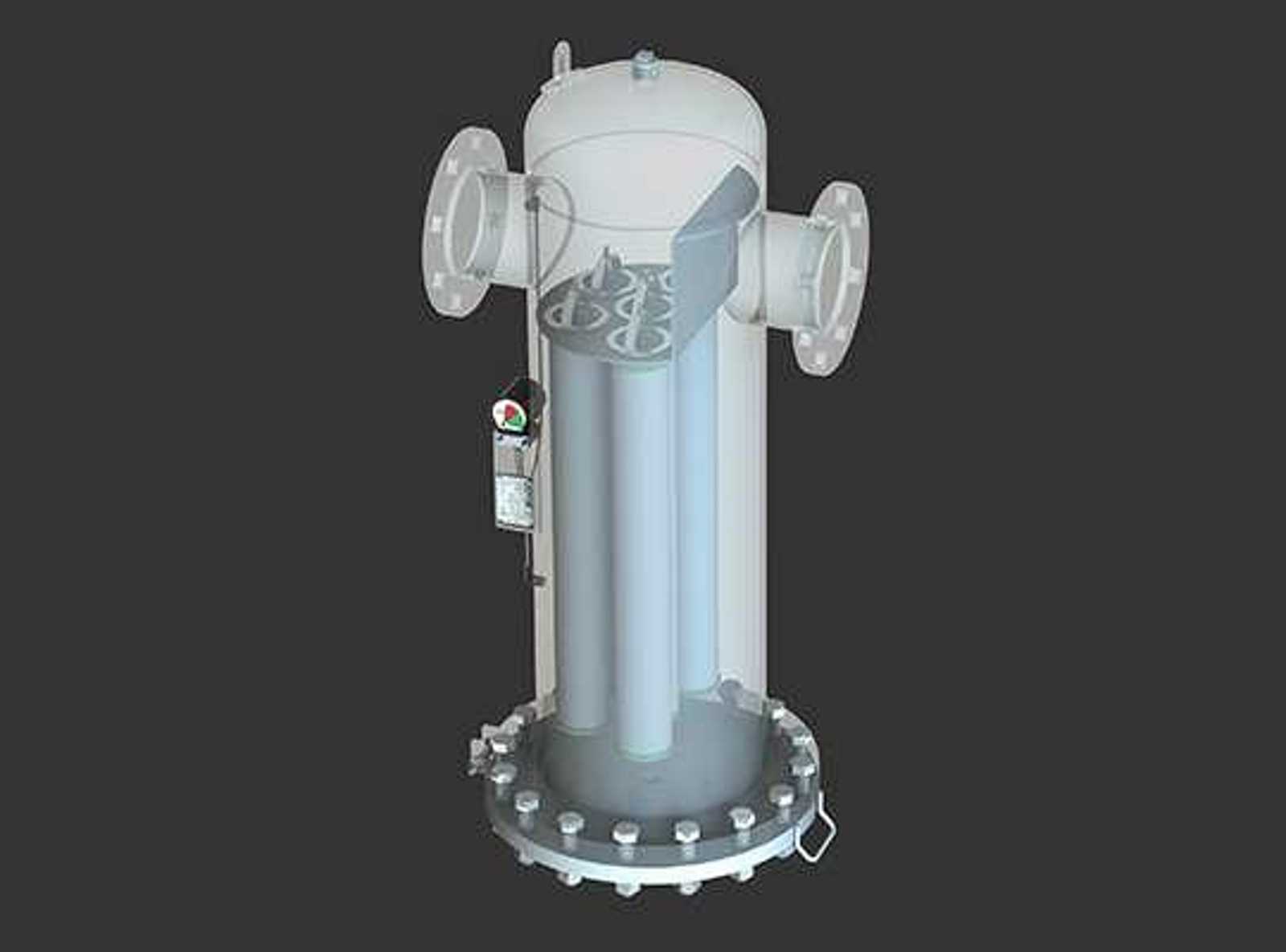

The FW filter range is suitable for maxi flow rates with four filtration types to meet air quality requirements, under ISO 8573.1. The carbon steel body is treated to resist internal and external corrosion; the lower flange, hinged to the body, allows easy replacement of filter elements by a single operator. A differential pressure gauge is supplied as standard on all sizes for easy filter status monitoring. Different cartridge colours identify their filtration degree. Automatic drain as standard (manual on activated carbon Z range).
Main components
- Vessel CE marked in accordance with PED 2014/68/EU Directive. ASME Section VIII Div. 1 standard is also available.
- Differential pressure gauge and
- Condensate drain
- Filter body is pre-treated with electrophoretic coating
- Lower flange provided with a hinge and handle mechanism
Vessel design conditions:
- Pressure: 16 barg
- Temperature: + 120°C
Recommended working temperature
- 1,5 ÷ 65°C with cartridge P (3 micron); S (1 micron); X (0.01 micron)
- 1,5 ÷ 45°C with cartridge Z (carbon attivo)
Technical Data
Data refer to the following nominal condition: inlet air temperature +35 °C, inlet air pressure 7 barg.
[*] Filtration grade: P (3 micron); S (1 micron); X (0.01 micron) and Z (carbon attivo).
Filtration Grade
| Filtration Grade | Air Quality | Application example |
| P SERIES | Filter capable to separate emulsion and particles down to 3 micron | Normally installed on the inlet of dryers. Ideal as pre-filter for on-line filters (series S-X-Z), and for vacuum pumps, pneumatic blowing plants. |
| S SERIES | Filter capable to separate particles down to 1 micron, liquid and oil included. Maximum contents of residual oil 0,1 mg/m 3 | Normally used on outlet of dryers as X grade pre-filter. Used to prevent the deterioration of the pipes of compressed air plants, for surface treatment, on vacuum pump exhaust, on compressed air motors. and as post-filter for adsorption dryers. |
| X SERIES 0.01 MICRON | Oil removing filter capable to separate residual oil and extremely small particles down to 0,01 mg/m3. 3It produces air technical free from oil. | Normally used as a pre filter at the entrance of the dryer by absorption and active carbon filters; post filter at the delivery of the frigorific cycle dryers. Also ideal for the protection of the control systems, pneumatic transport, varnishing systems, etc. |
| Z SERIES Activated carbon | Activated carbon filter for the elimination of oil vapours and odour. It lowers the maximum contents of residual oil to 0,005 mg/m3.3 | Used in the pharmaceutical industry, for dental applications, in photographic workshops, packaging and galvanic treatments. |
Brochure
Options and Accesories

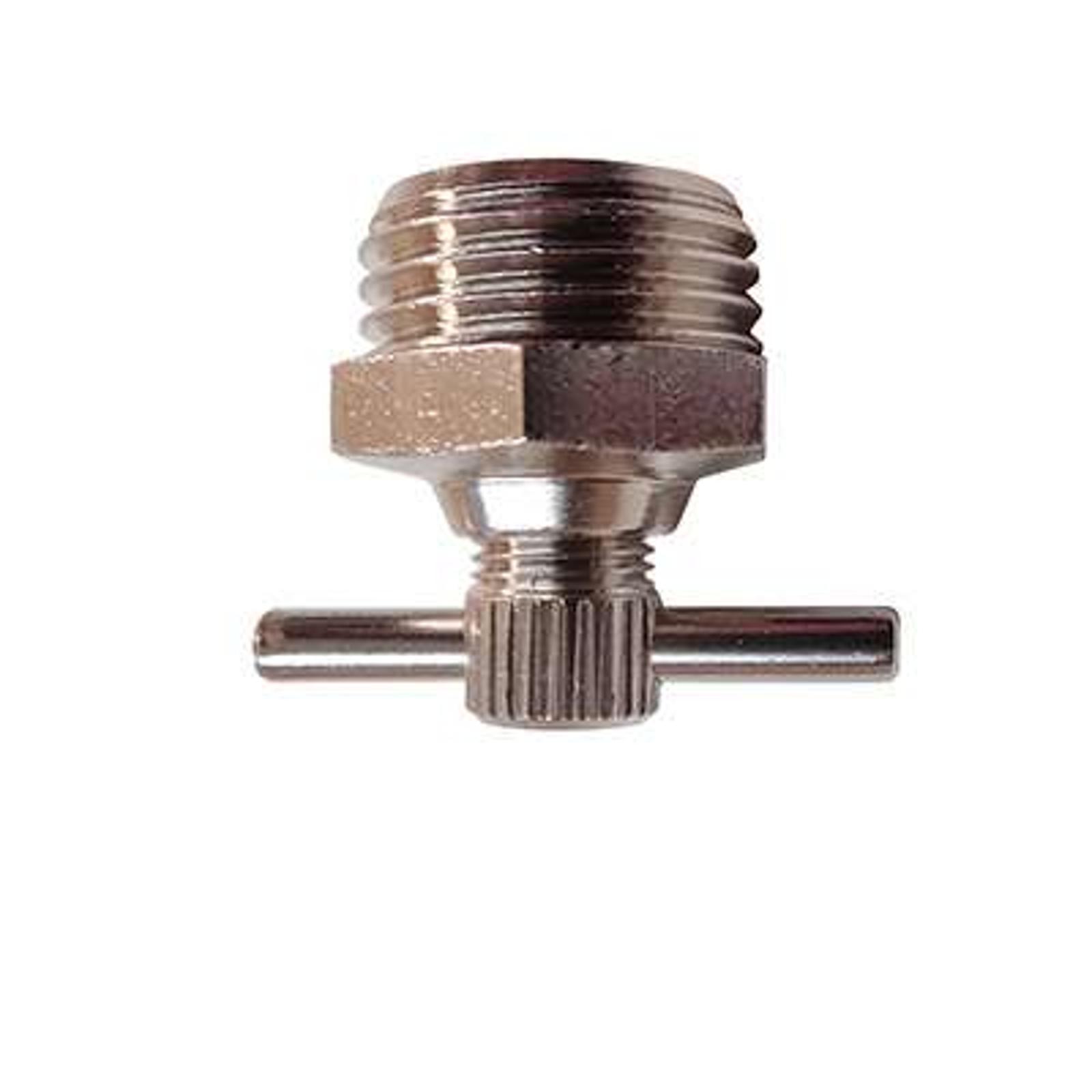

MDR04
Manual condensate drain
SCG20
Automatic float condensate drain
SCE02
Automatic timed condensate drain
SCE05
Automatic timed condensate drain

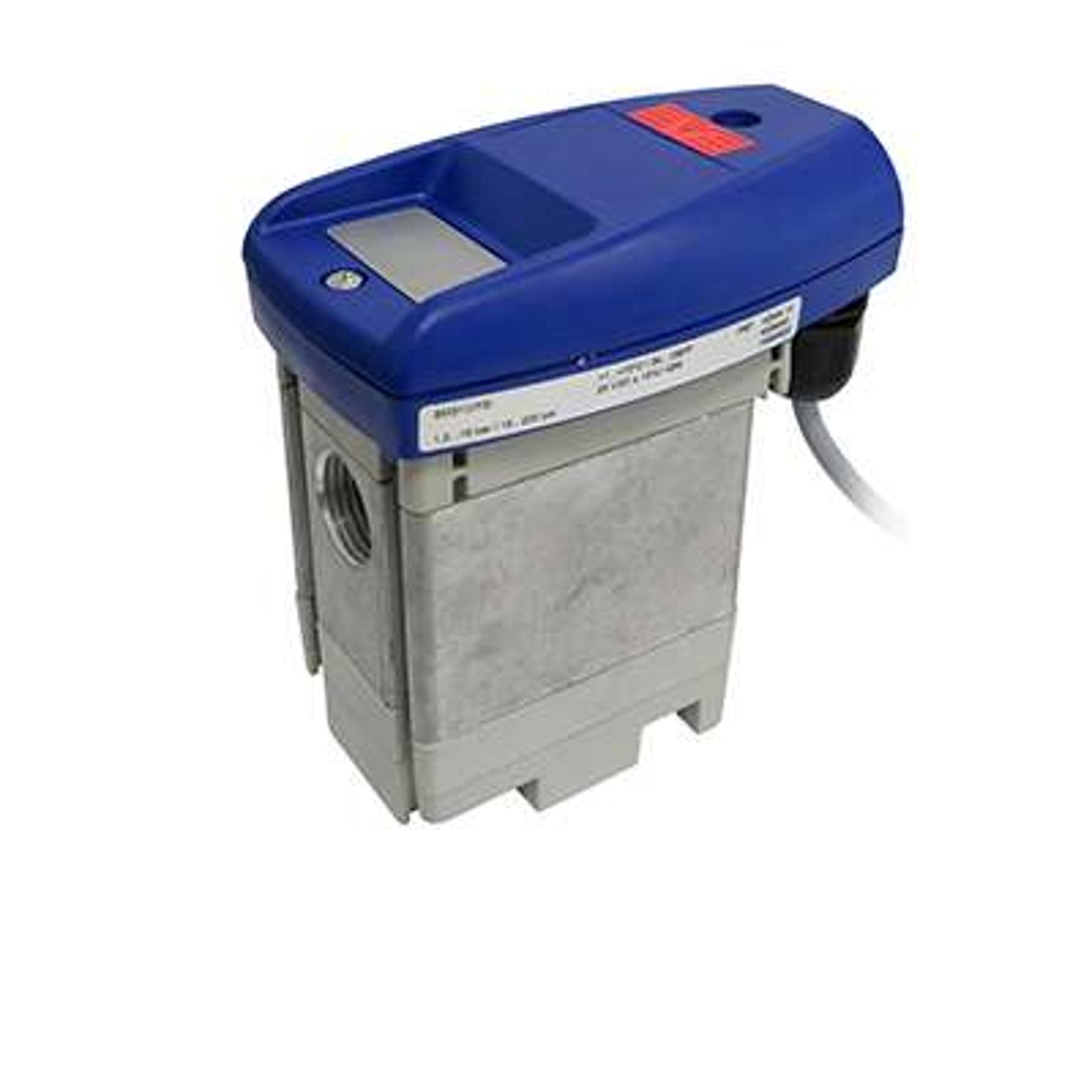

SEC11
Zero Loss Drain

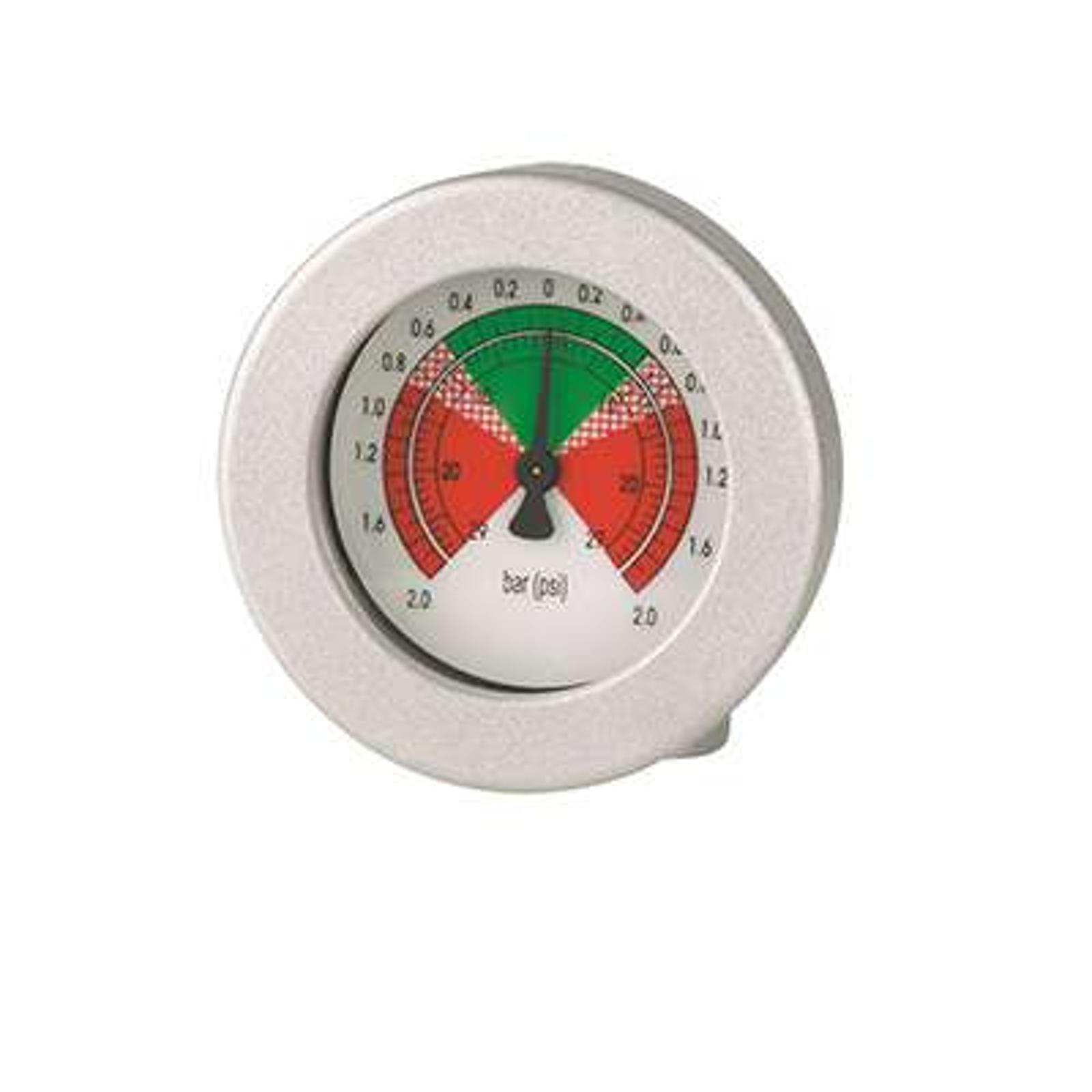

DIG02
High accuracy differential gauge

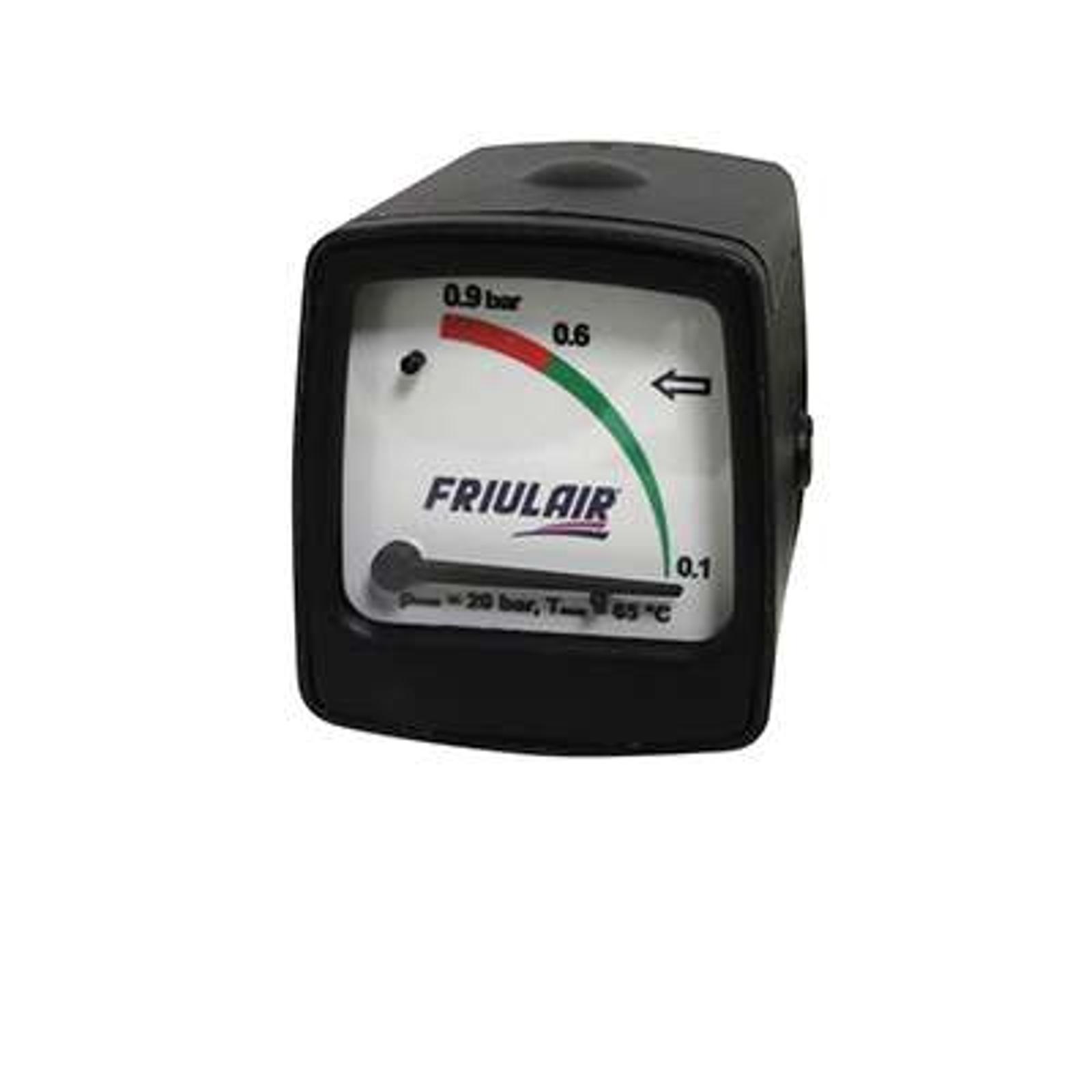

DIG04
Differential gauge

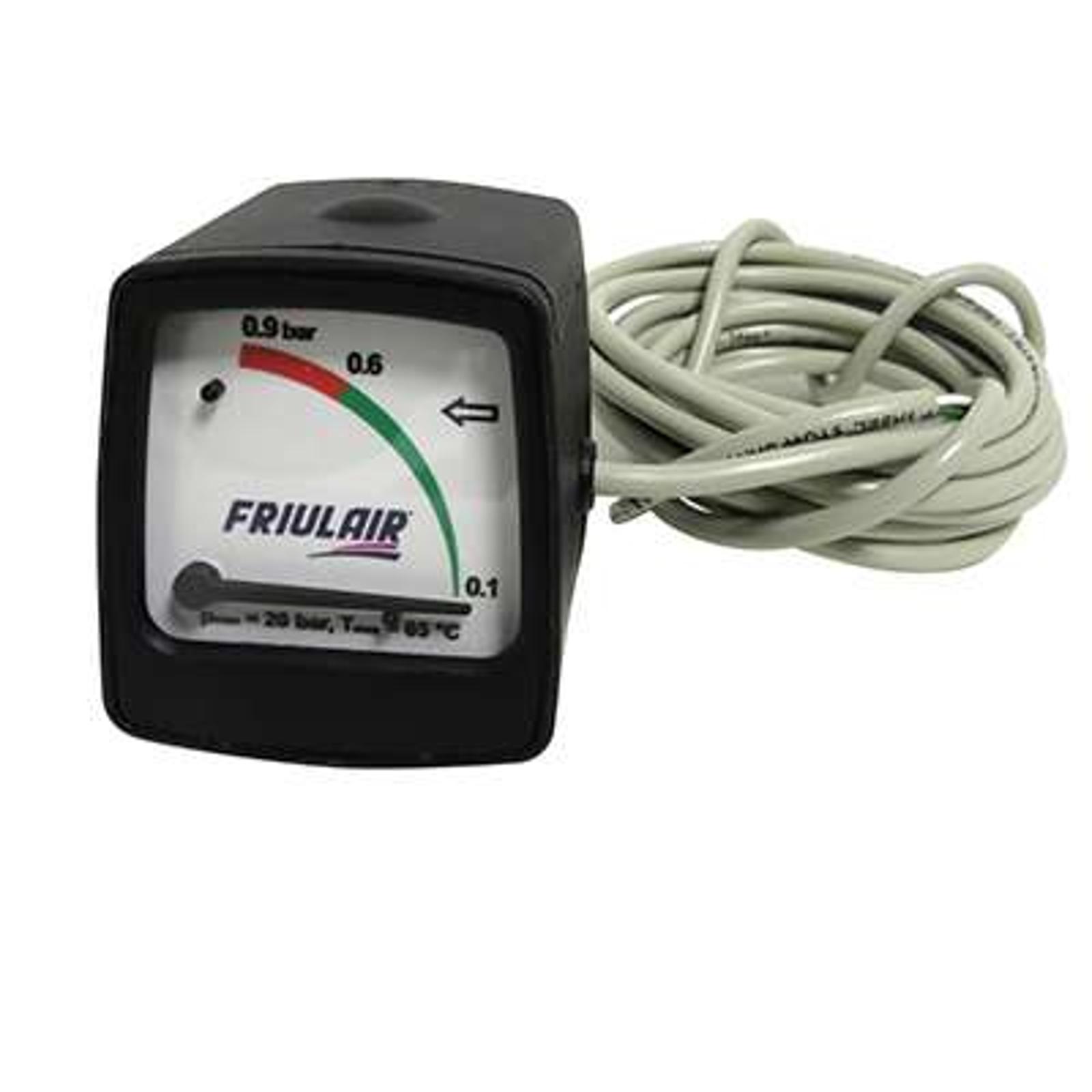

DIG06
Differential gauge with volt free electric contact (cable L. 1,80 m)
