AFR
AIR/AIR AFTERCOOLERS
Flow rate: 66 ÷ 4 500 m3/h
AFR air-to-air coolers are the ideal solution for cooling compressed air to a temperature close to ambient levels...
Share

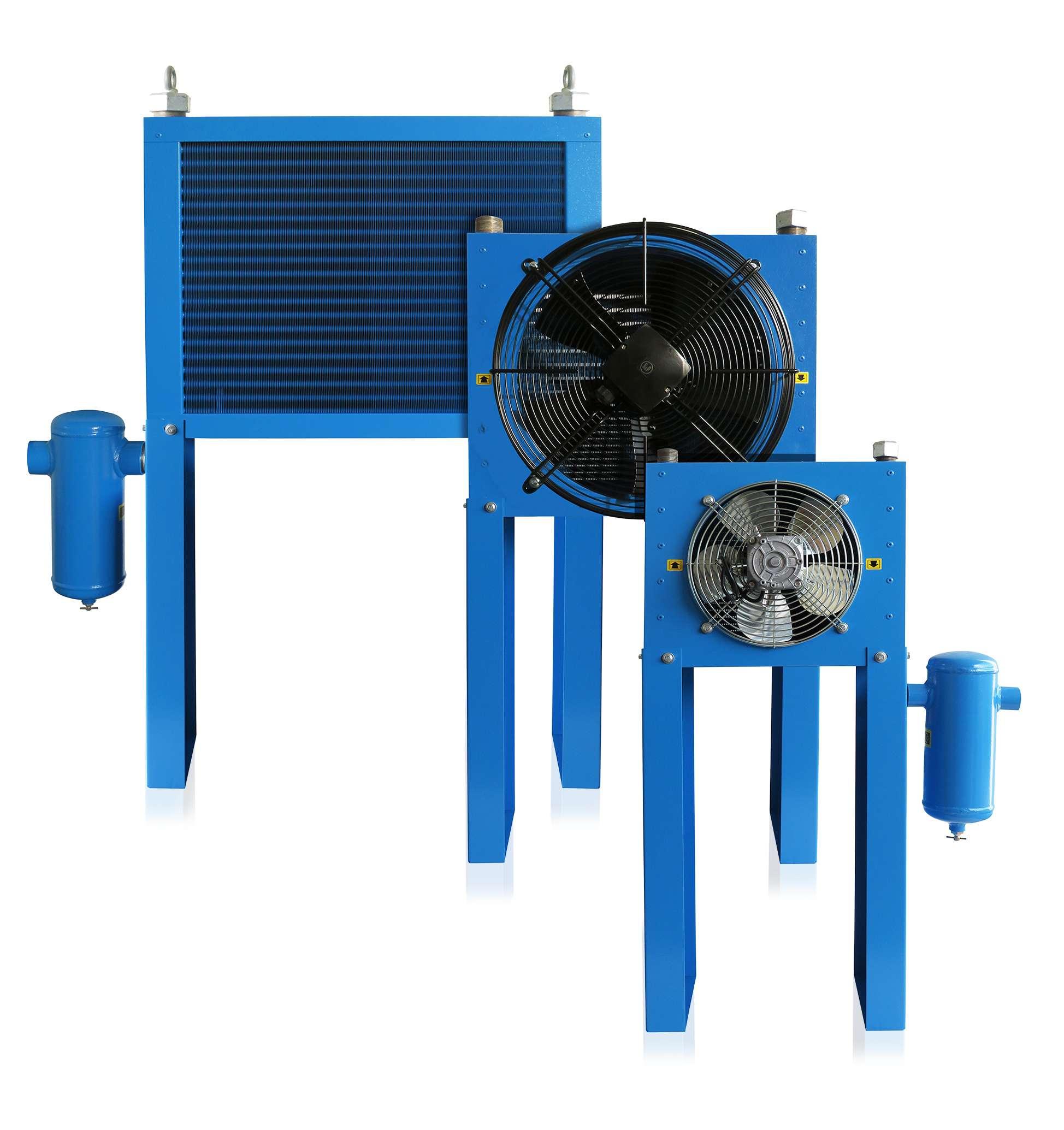

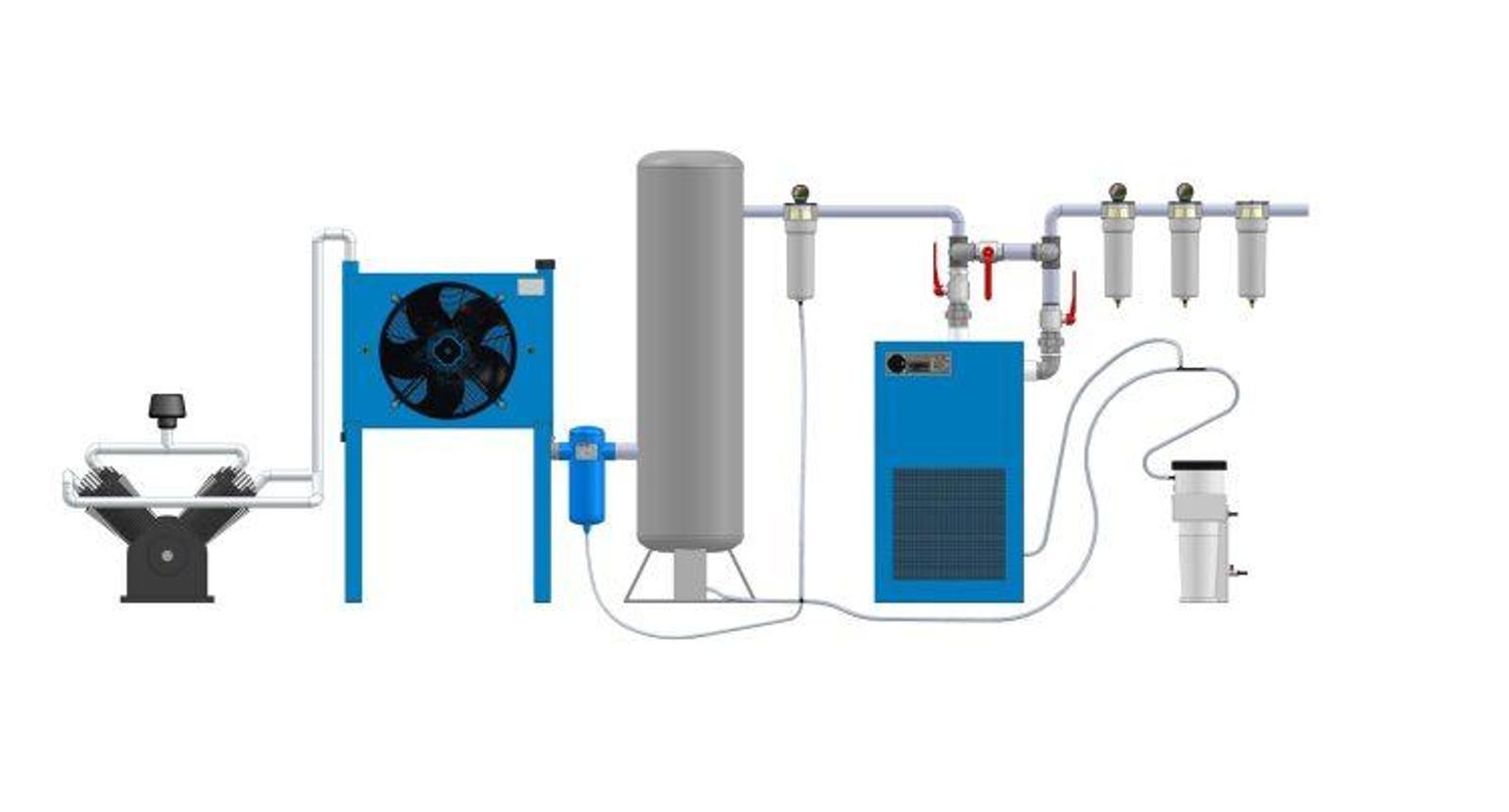

AFR air-to-air coolers are the ideal solution for cooling compressed air to a temperature close to ambient levels (ΔT +10°C under design conditions). AFR consists of a painted support frame, an air-to-air exchanger with copper tubes and aluminium fins suitably sized to optimise heat exchange and minimise pressure drops, one or more fans with electric motor and a CCS to remove condensed water. For situations where an electrical power supply is unavailable, an air motor version can be provided on demand.
MAXIMUM WORKING CONDITIONS
- Inlet air pressure: 15 barg
- Inlet air temperature: + 170°C
Data refer to the following nominal condition: ambient temperature 25°C; inlet air pressure 7 barg: inlet air temperature +120 °C; outlet air temperature approx. +10°C compared to ambient temperature.
- Powder coated support frame
- Air-to-air exchanger with copper pipes and aluminum fins
- Fan/s with electric motor
- CCS condensate separator
- MDR04 manual condensate drain
- For AFR210÷750: counter-flanges and EN 1092-1 gaskets included.
SCG20
Automatic float condensate drain
SCE02
Automatic timed condensate drain
SCE05
Automatic timed condensate drain
Main features
AFR air-to-air coolers are the ideal solution for cooling compressed air to a temperature close to ambient levels (ΔT +10°C under design conditions). AFR consists of a painted support frame, an air-to-air exchanger with copper tubes and aluminium fins suitably sized to optimise heat exchange and minimise pressure drops, one or more fans with electric motor and a CCS to remove condensed water. For situations where an electrical power supply is unavailable, an air motor version can be provided on demand.
MAXIMUM WORKING CONDITIONS
- Inlet air pressure: 15 barg
- Inlet air temperature: + 170°C
Technical Data
Data refer to the following nominal condition: ambient temperature 25°C; inlet air pressure 7 barg: inlet air temperature +120 °C; outlet air temperature approx. +10°C compared to ambient temperature.
Main Components
- Powder coated support frame
- Air-to-air exchanger with copper pipes and aluminum fins
- Fan/s with electric motor
- CCS condensate separator
- MDR04 manual condensate drain
- For AFR210÷750: counter-flanges and EN 1092-1 gaskets included.
Brochure
Options and Accesories
SCG20
Automatic float condensate drain
SCE02
Automatic timed condensate drain
SCE05
Automatic timed condensate drain
