AUTOMATIC TIMED CONDENSATE DRAINS

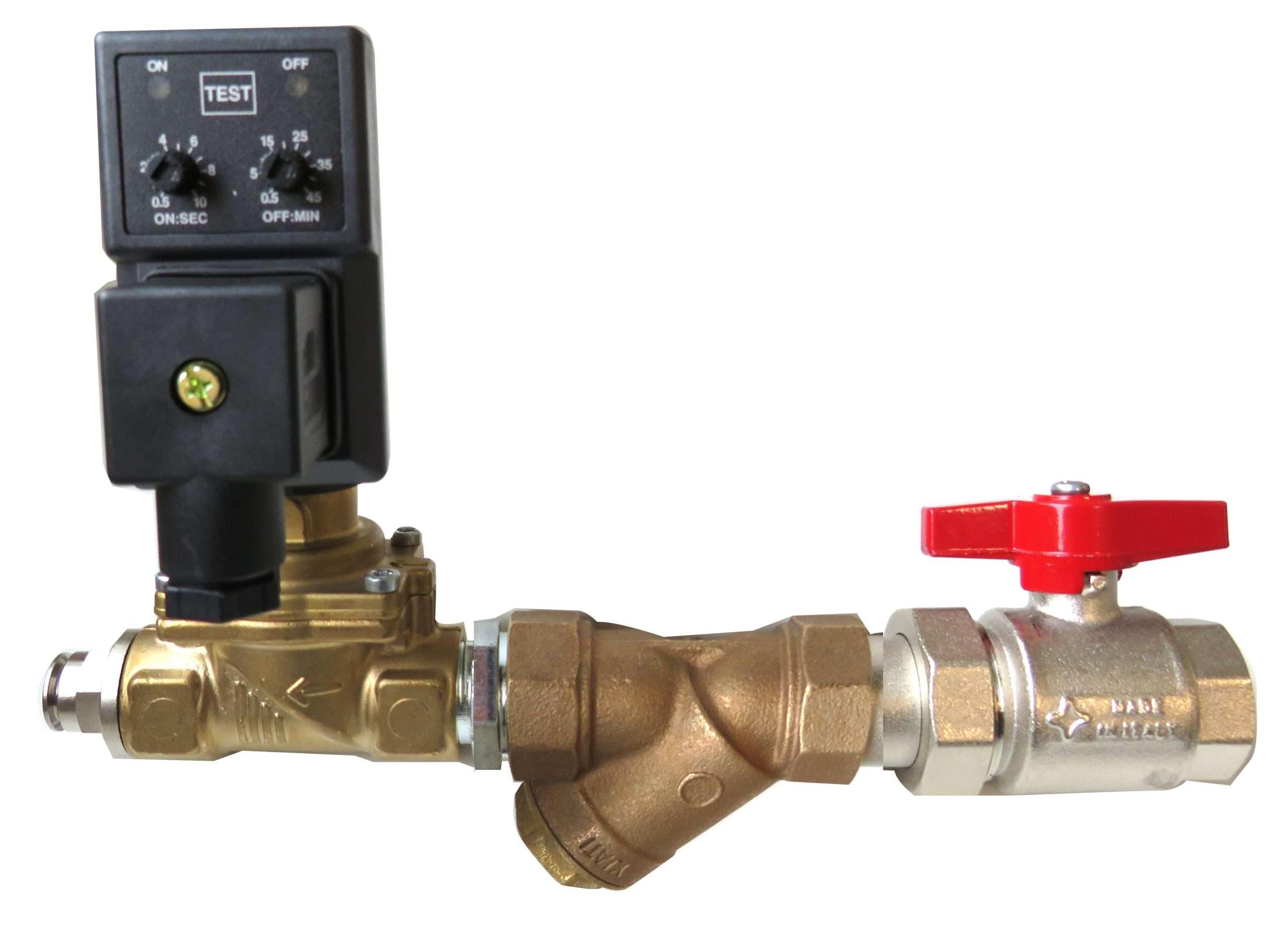

Drain set with electronic timer. Limited overall dimensions. Easy to be installed. Pause and drain times can be adjusted...

Main features

SCE Series is usually used as accessorie of:

FT: Aluminium filters and separators for compressed air
FW: Flanged filters for compressed air
LF: Spin on type filters for compressed air
FH: High pressure filters for compressed air
AFR: Air/Air aftercoolers
CCS: Carbon steel condensate separators
MODEL SCE 01 SCE 02 SCE 03 SCE 04 SCE 05
Timer Double editable Double editable Double editable Single editable Double editable
Air flow [l/min]

Compressor 13000 18500 N.A. 10300 345000
Filtro / Filter 130000 185000 100000 103000 3450000
Orifice [mm] 2.2 2.5 1.8 2 13
Inlet connections [0] G 1/2” BSP-M G 1/2” BSP-M G 1/2” BSP-M G 1/2” BSP-M G 3/4” BSP-M
Drain Connections [0] Rilsan Ø6 x 1 Rilsan Ø6 x 1 Rilsan Ø6 x 1 G 1/8” BSP-F Rilsan Ø6 x 10 x 1
Pressure Max. [barg] 15 14 50 16 16
Power Supply [Ph/V/Hz] 1/220-230/50-60 1/220-230/50-60 1/220-230/50-60 1/220-240/50-60 1/220-240/50-60
