SEC

ELECTRONIC ZERO LOSS DRAINS

As an alternative to timed condensate drains, Friulair offers the cost-effective and reliable SEC...

Main features

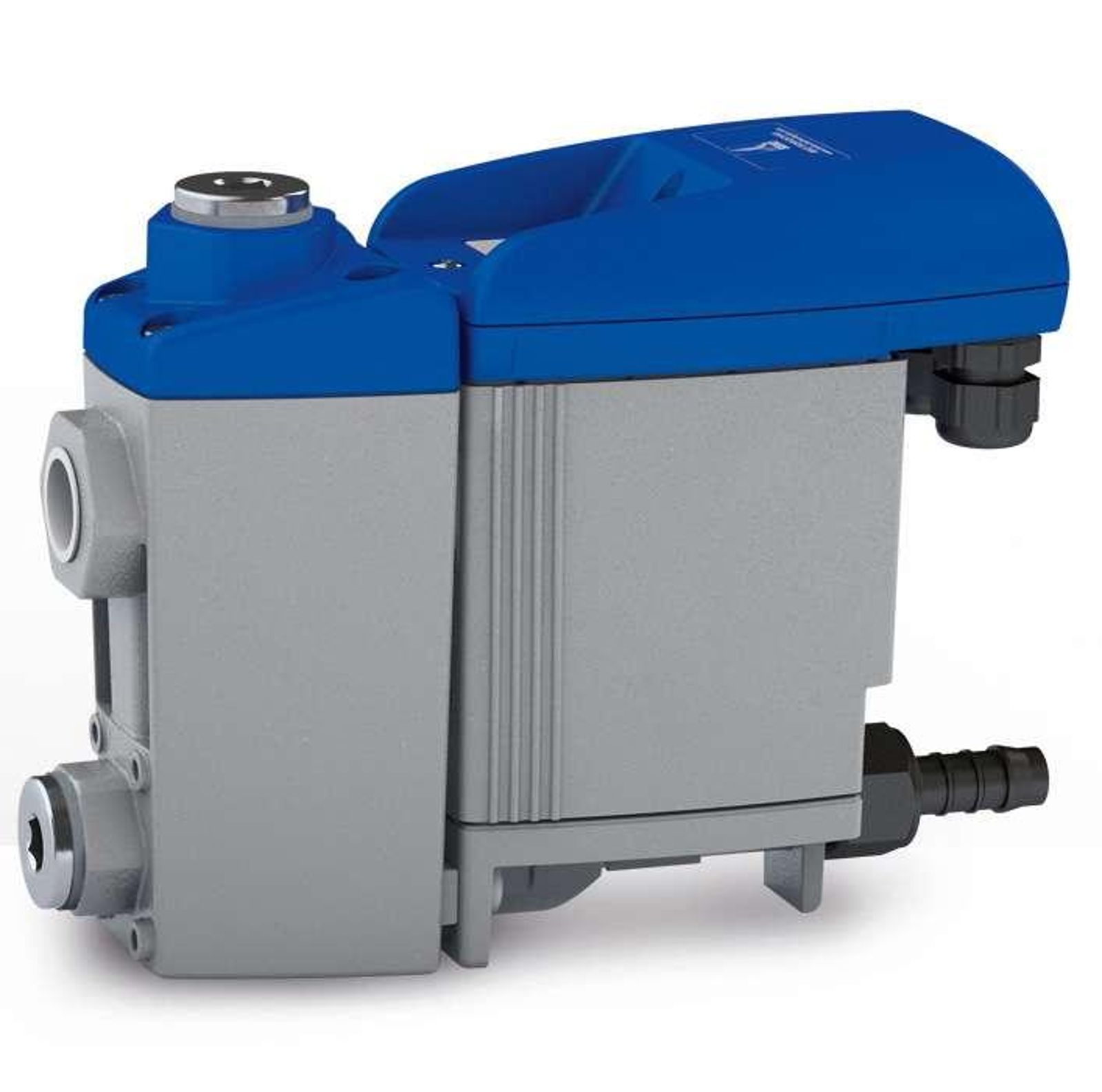

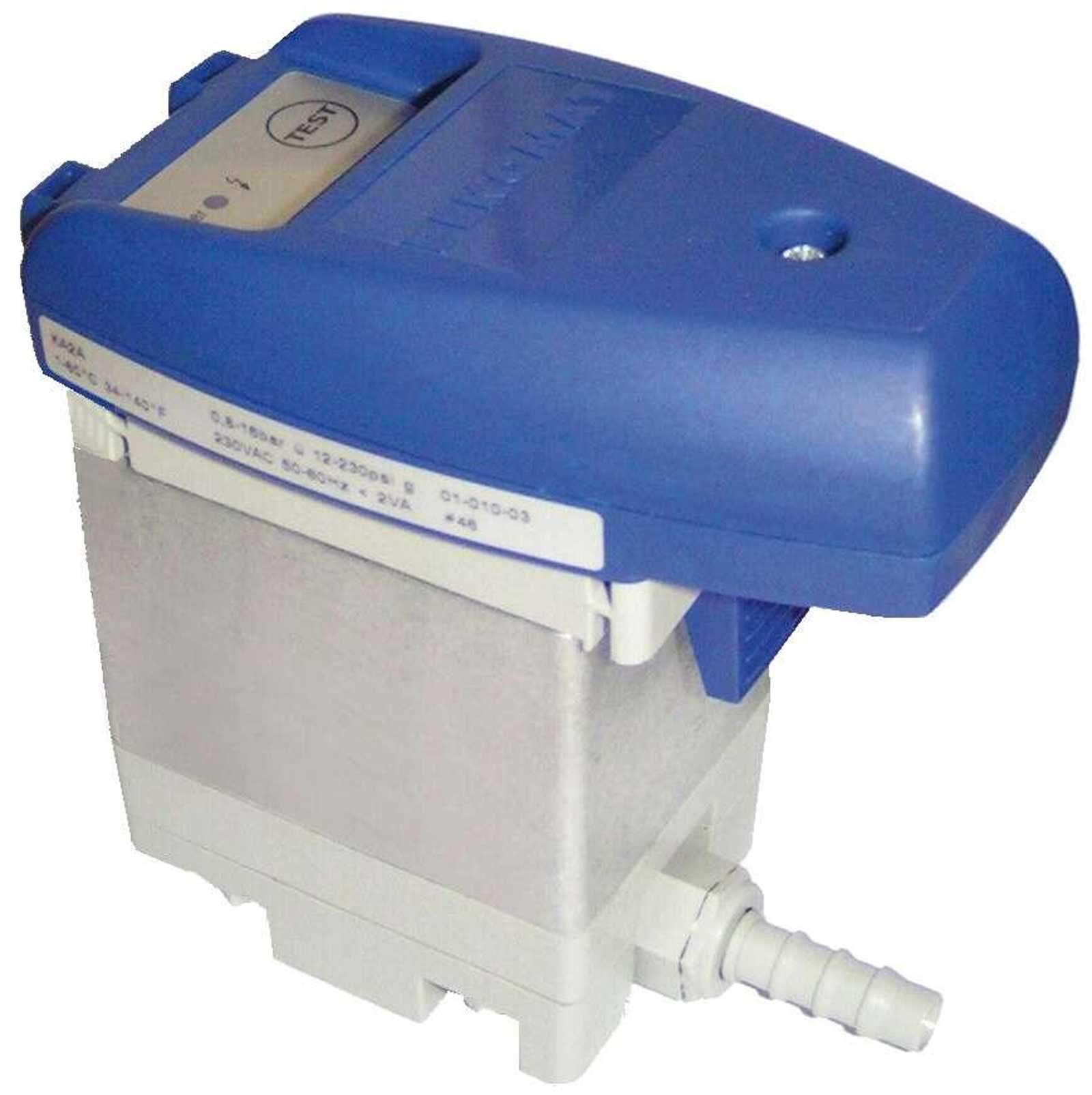

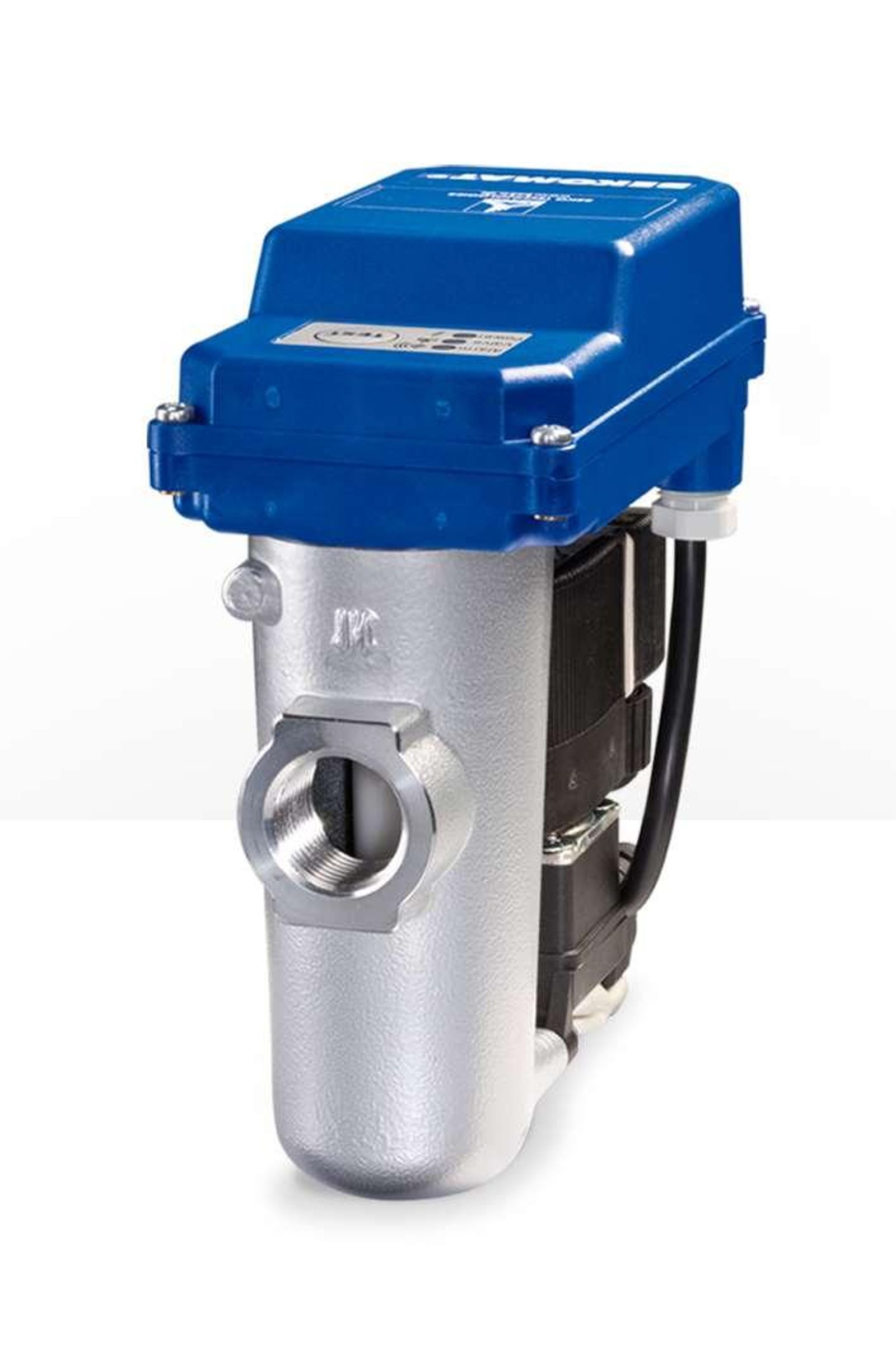

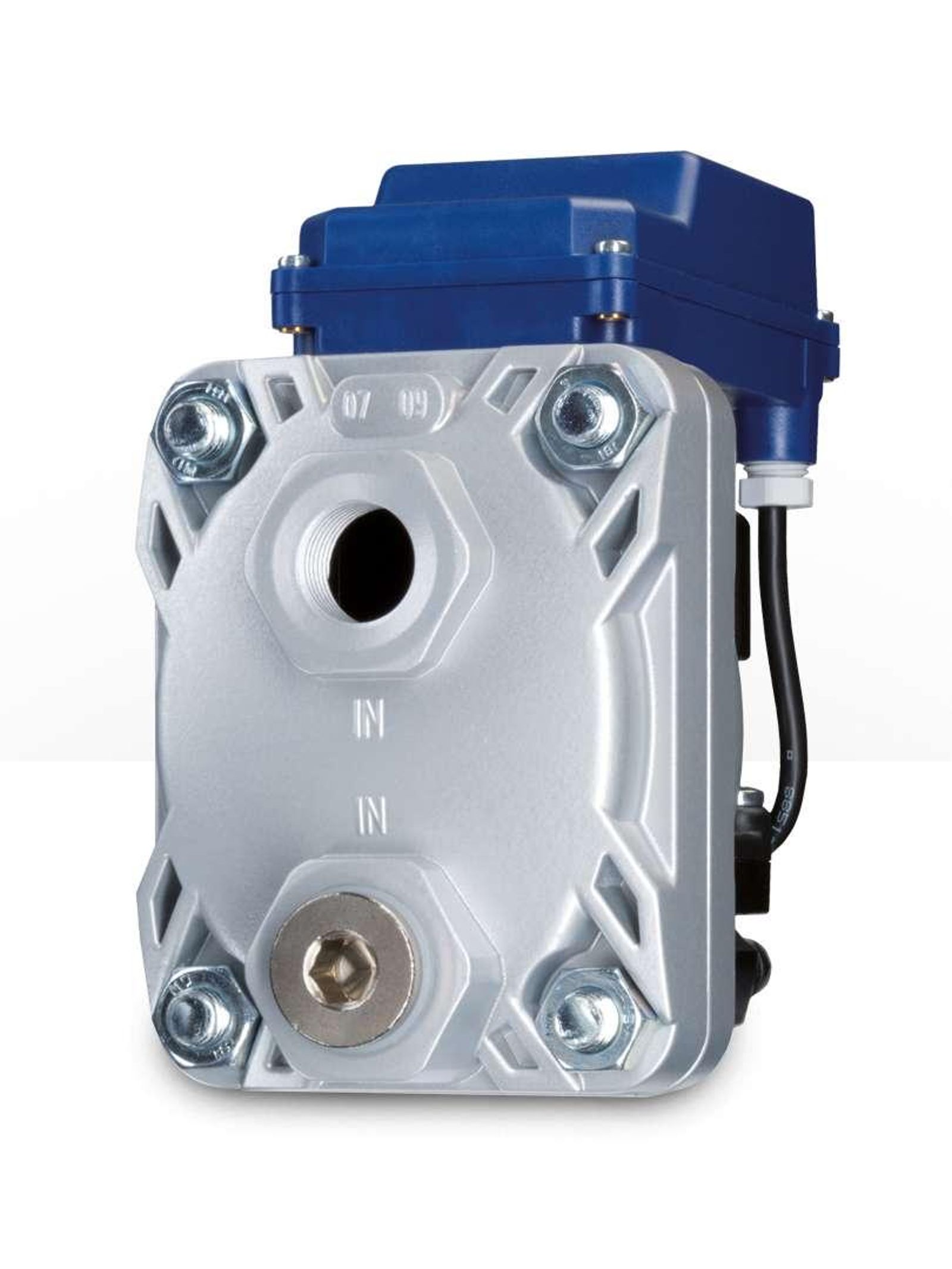

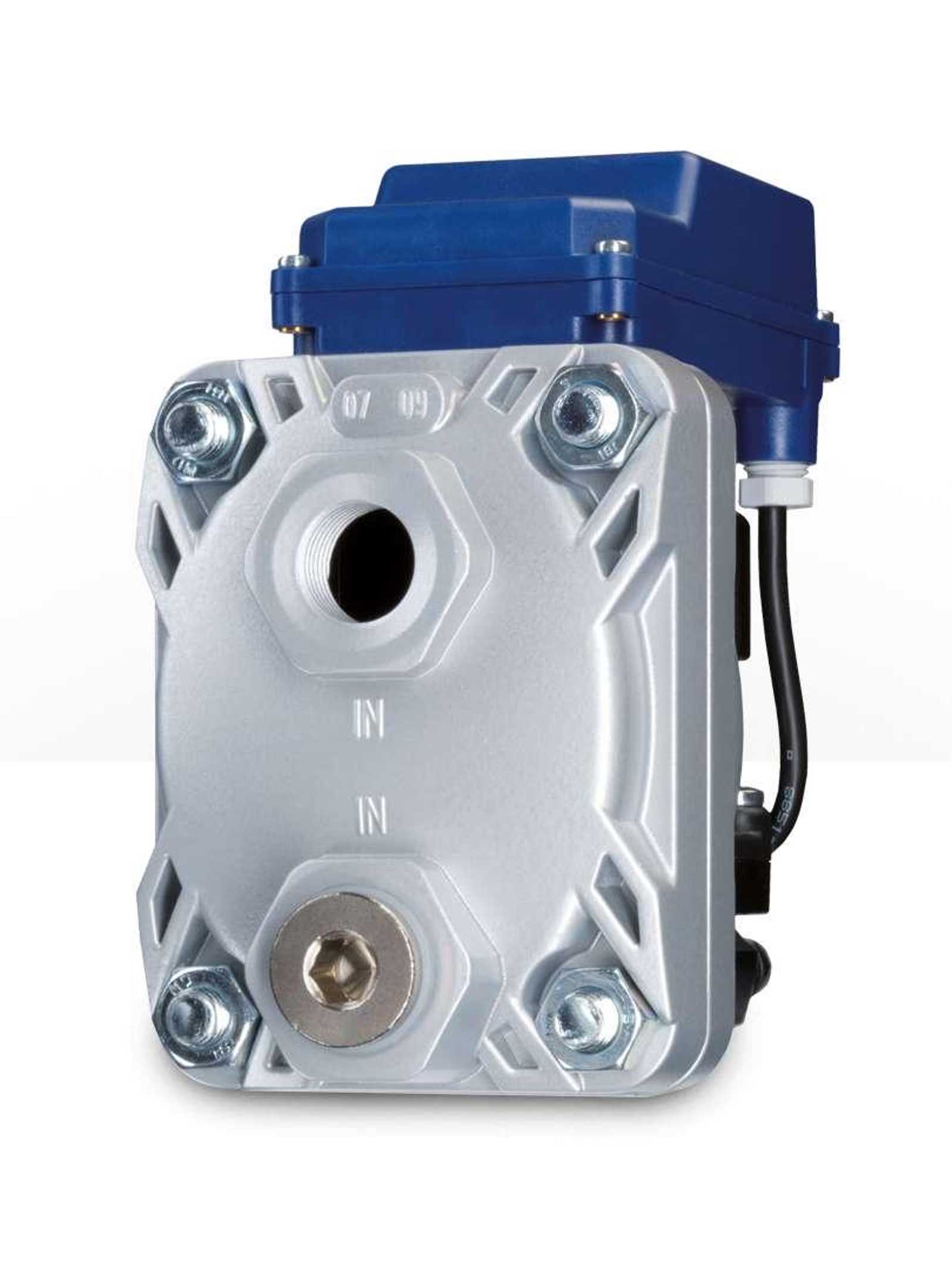

As an alternative to timed condensate drains, Friulair offers the cost-effective and reliable SEC condensate drain with electronic level control. This type of accessory drains accumulated condensate without any loss of compressed air, reducing energy costs and CO2 emissions. This is possible due to the integrated capacitive sensor and intelligent electronic system that manages drainage of the correct amount of condensate.

No loss of compressed air during drainage

Energy and cost savings

High reliability

Robust, durable and resistant to impurities

Easy installation and simplified maintenance

Service Unit

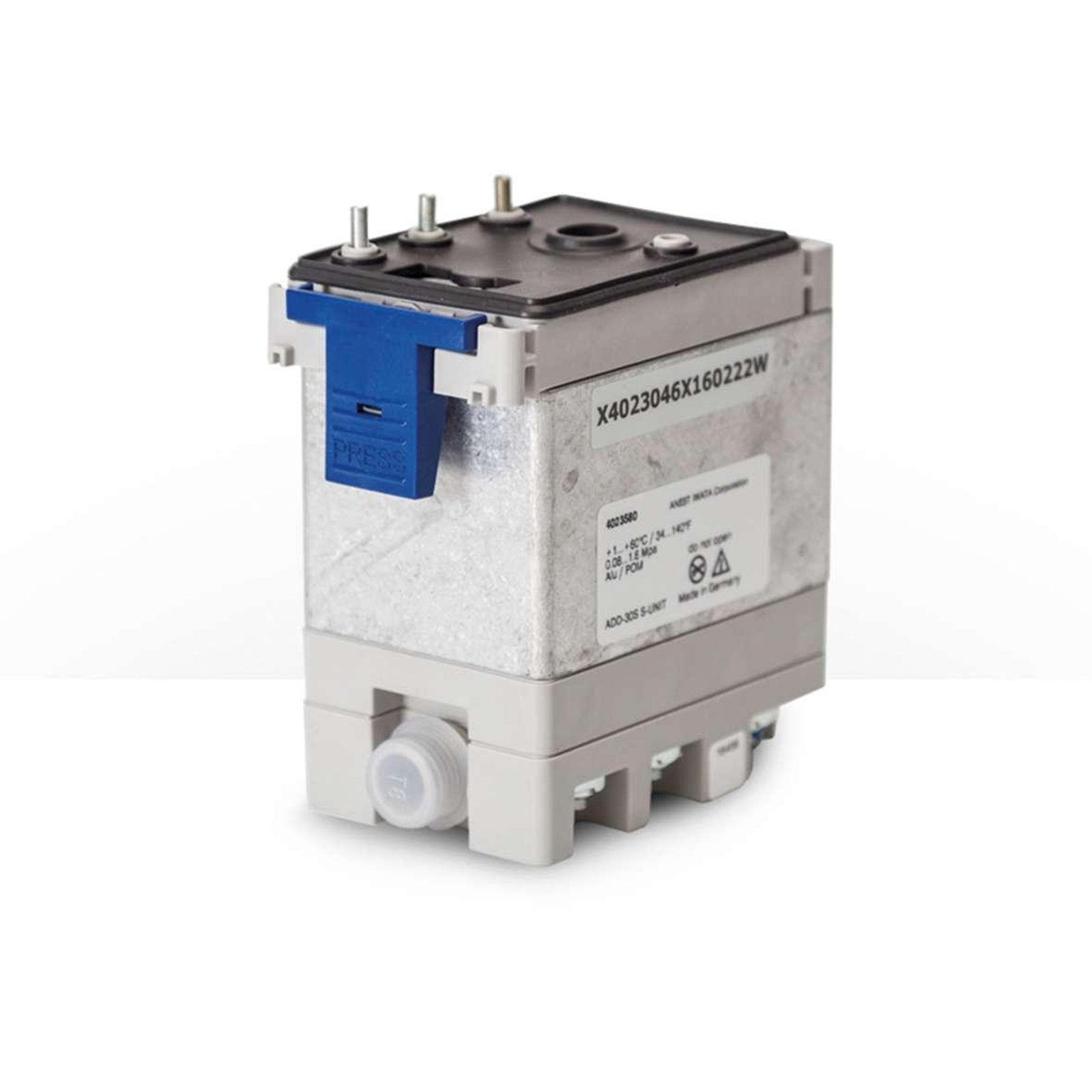

To ensure the correct operation of the electronic level condensate drain (SEC11÷13 models), an easy-to-replace service unit maintenance kit is available. This allows the drain to function correctly for additional 8,000 hours.

The SEC condensate drain is supplied as standard or as an option with all ranges of refrigeration dryers.

SEC Series is usually used as accessorie of:

FT: Aluminium filters and separators for compressed air

FW: Flanged filters for compressed air

LF: Spin on type filters for compressed air

MODEL SCE 01 SCE 02 SCE 03 SCE 04 SCE 05
Timer Double editable Double editable Double editable Single editable Double editable
Air flow [l/min]

Compressor 13000 18500 N.A. 10300 345000
Filtro / Filter 130000 185000 100000 103000 3450000
Orifice [mm] 2.2 2.5 1.8 2 13
Inlet connections [0] G 1/2” BSP-M G 1/2” BSP-M G 1/2” BSP-M G 1/2” BSP-M G 3/4” BSP-M
Drain Connections [0] Rilsan Ø6 x 1 Rilsan Ø6 x 1 Rilsan Ø6 x 1 G 1/8” BSP-F Rilsan Ø6 x 10 x 1
Pressure Max. [barg] 15 14 50 16 16
Power Supply [Ph/V/Hz] 1/220-230/50-60 1/220-230/50-60 1/220-230/50-60 1/220-240/50-60 1/220-240/50-60
MODEL SCE 01 SCE 02 SCE 03 SCE 04 SCE 05
Timer Double editable Double editable Double editable Single editable Double editable
Air flow [l/min]

Compressor 13000 18500 N.A. 10300 345000
Filtro / Filter 130000 185000 100000 103000 3450000
Orifice [mm] 2.2 2.5 1.8 2 13
Inlet connections [0] G 1/2” BSP-M G 1/2” BSP-M G 1/2” BSP-M G 1/2” BSP-M G 3/4” BSP-M
Drain Connections [0] Rilsan Ø6 x 1 Rilsan Ø6 x 1 Rilsan Ø6 x 1 G 1/8” BSP-F Rilsan Ø6 x 10 x 1
Pressure Max. [barg] 15 14 50 16 16
Power Supply [Ph/V/Hz] 1/220-230/50-60 1/220-230/50-60 1/220-230/50-60 1/220-240/50-60 1/220-240/50-60
