AHT

Industry 4.0 Ready
Made in Italy

PREMIUM REFRIGERATION DRYERS FOR HIGH INLET AIR TEMPERATURE

Flow rate: 33 ÷ 630 m3/h

The AHT range incorporates the pre-cooler, three-micron separator filter and refrigeration dryer designed based on the ACT range technology in a single unit.

Main features

The AHT range incorporates the pre-cooler, three-micron separator filter and refrigeration dryer designed based on the ACT range technology in a single unit. This dryer combines a heat exchange coil with copper pipes and aluminium cooling fins, a pre-filter from Friulair’s FT range, equipped with automatic condensate drain, and the aluminium ALU-DRY drying module. The product offers many advantages, which include a layout with vertical development that limits the footprint, high operating limits, machine management electronic controller (Industry 4.0 ready) condensate drainage management through two separate drainage devices managed directly by the control tool.

MAXIMUM WORKING CONDITIONS
   Ambient temperature: + 50°C
   Inlet air pressure: 16 barg (ACT3÷18) - 14 barg
   Inlet air temperature: + 100°C

ModelRefrigerantAir flowPower SupplyConnections
[Type][m3/h][l/min][scfm][Ph/Volt/Fr][ Ø ]
AHT 5R 134.a33550191/230-240/50G 1/2” BSP-F
AHT 8R 134.a51850301/230-240/50G 1/2” BSP-F
AHT 12R 134.a721 200421/230-240/50G 1/2” BSP-F
AHT 18R 134.a1081 800641/230-240/50G 1” BSP-F
AHT 23R 134.a1382 300811/230-240/50G 1” BSP-F
AHT 30R 407C1863 1001091/230-240/50G 1.1/4” BSP-F
AHT 40R 407C2404 0001411/230-240/50G 1.1/4” BSP-F
AHT 55R 407C3305 5001941/230-240/50G 1.1/2” BSP-F
AHT 60R 407C3726 2002191/230-240/50G 1.1/2” BSP-F
AHT 80R 407C4868 1002861/230-240/50G 2” BSP-F
AHT 100R 407C63010 5003711/230-240/50G 2” BSP-F

Data refer to the following nominal condition: ambient temperature + 32 °C; inlet air pressure 7 barg; inlet air temperature +80 °C.

OPTIONS AND ACCESSORIES

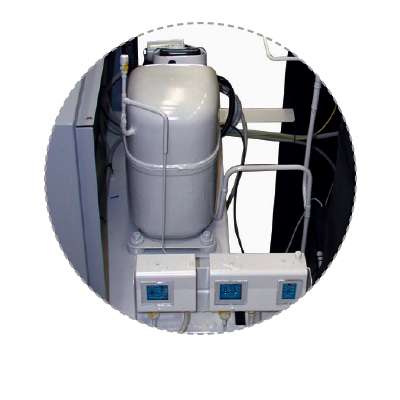

TAC

Anti corrosion treatment

BK

Zero loss drain

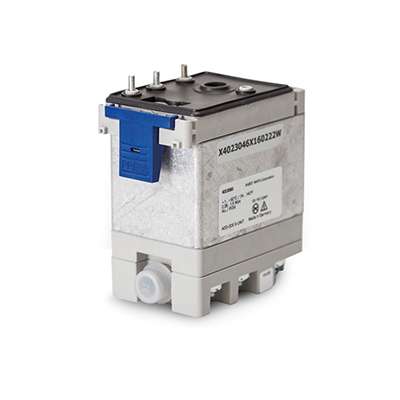

SERVICE UNIT

8.000 hours maintenance kit for BK type electronic drain

BY-PASS

By-pass group


    Scroll the accessories
