CHILLERS

from 100 to 300 kW

The CFT range consists on air cooled water chillers with axial fans...

Main features

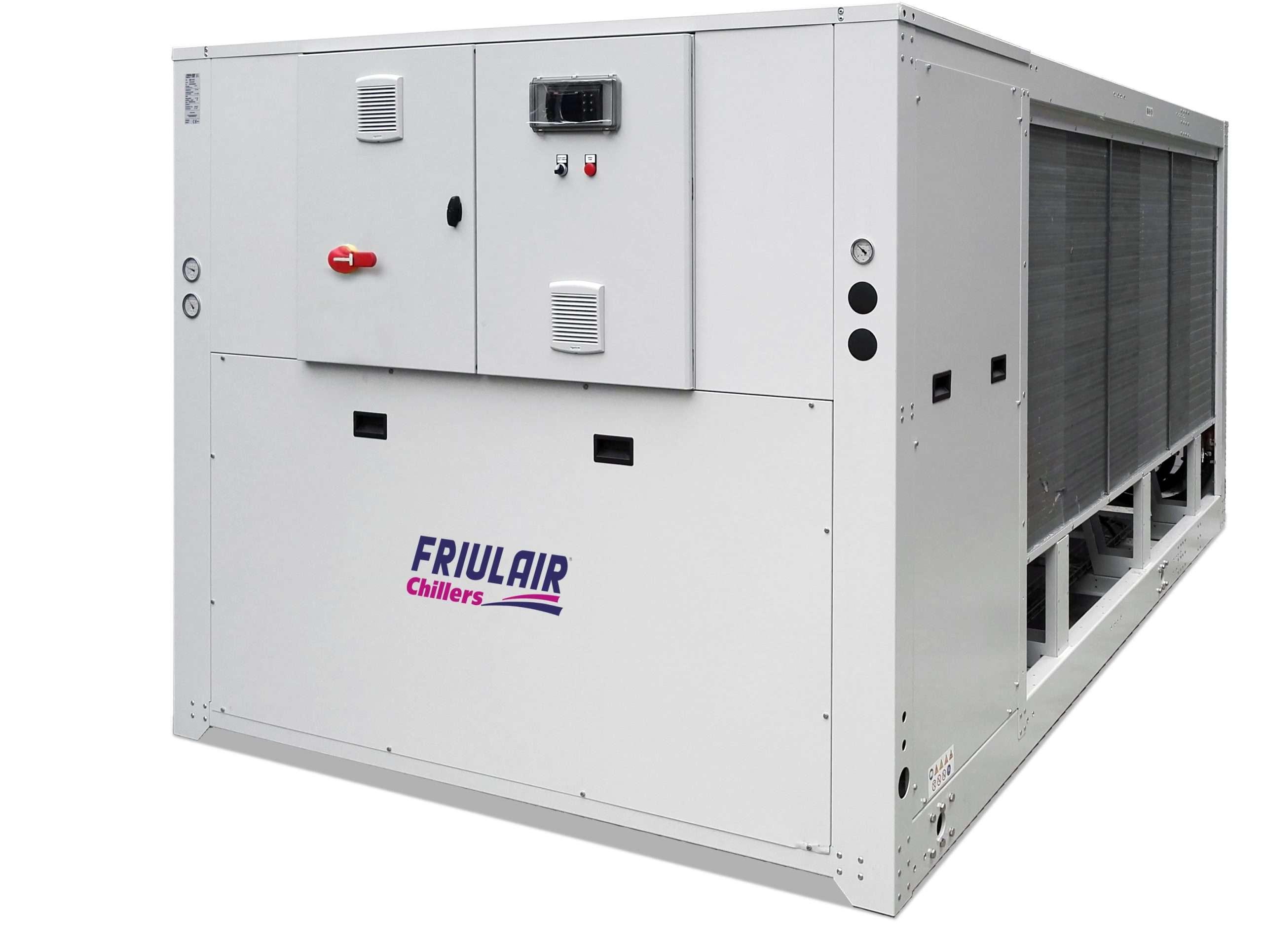

The CFT range consists on air cooled water chillers with axial fans suitable for outdoor installations. The family comprises 8 models with cooling capacities ranging from 100 to 300 kW.

Frame and cabinet are made up of galvanized powder coated steel. This makes CFT suitable for outdoor installations and harsh environments.

All standardunits are equipped with:

The hydraulic circuit is highly customizable according to customer’s requirements.

Units from CFT230 to CFT300 boast a double refrigeration circuit with one hydraulic circuit. T his configuration is very efficient with partial loads compared to independent evaporator versions.

EASY MAINTENANCE

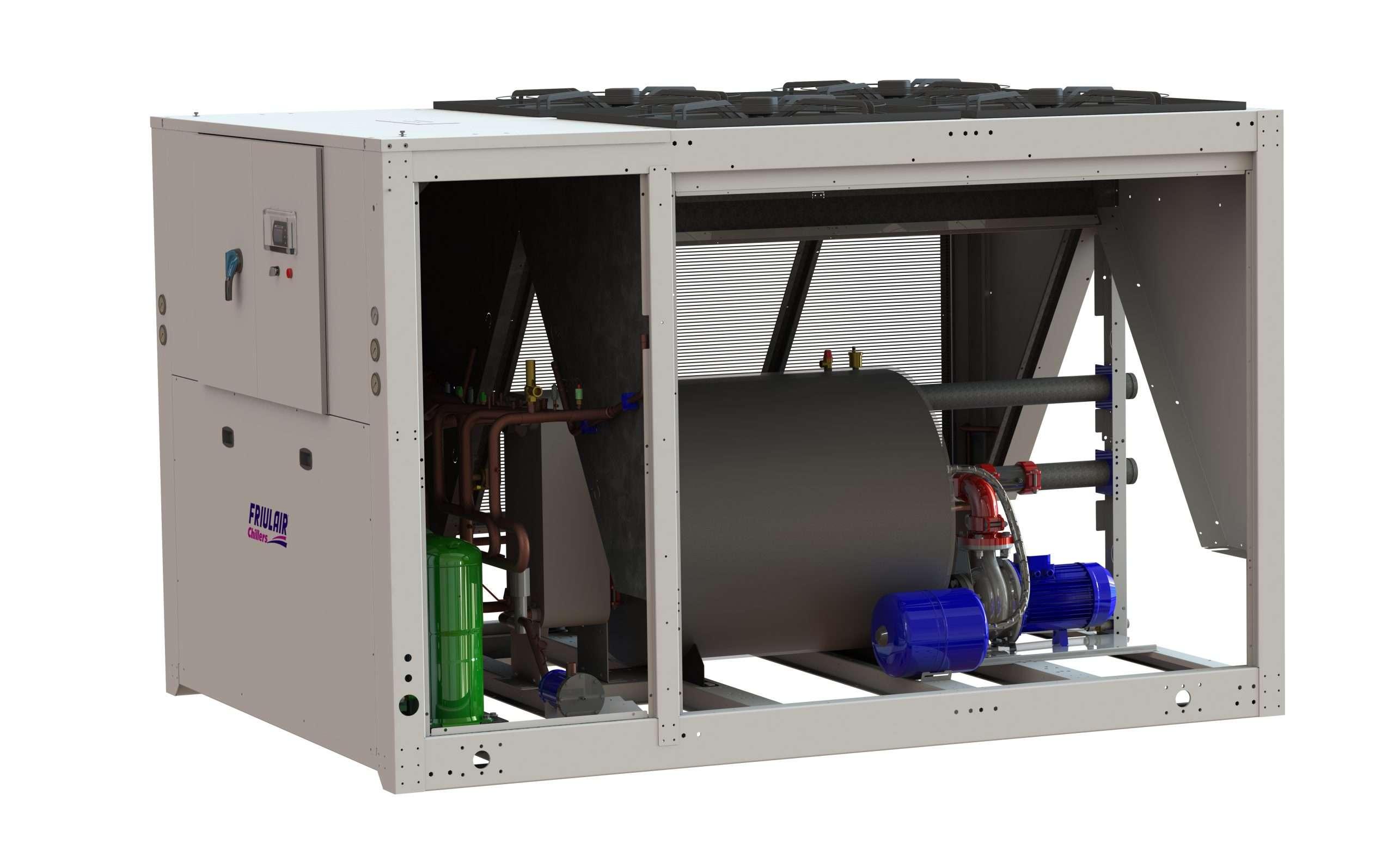

The compressor cabinet is separate from the fan’s section and is accessible on three sides to make control and maintenance easy. The hydraulic section is also easily accessible.

Cooling CapacitySeasonal energy efficiency rating
[kW]SEPR HT
CFT100102.185.00
CFT115118.935.13
CFT130130.235.21
CFT160166.415.11
CFT180179.475.32
CFT200196.155.31
CFT230240.445.54
CFT260257.055.53
CFT280286.665.47
CFT300308.745.32

Data referred to: water temp. in/out: 12/7°C – ambient air temp. 35°C
SEPR HT Data are in accordance with European Regulation (EU) 2016/2281 for eco-design requirements.
The complete technical data can be found in the product brochure.

TheCEN chiller seriesis highly configurable
