cwb

R410A Refrigerant
Cooling mode
SEPR HT Ready
Industry 4.0 Ready
Made in Italy

CHILLERS

from 140 to 570 kW

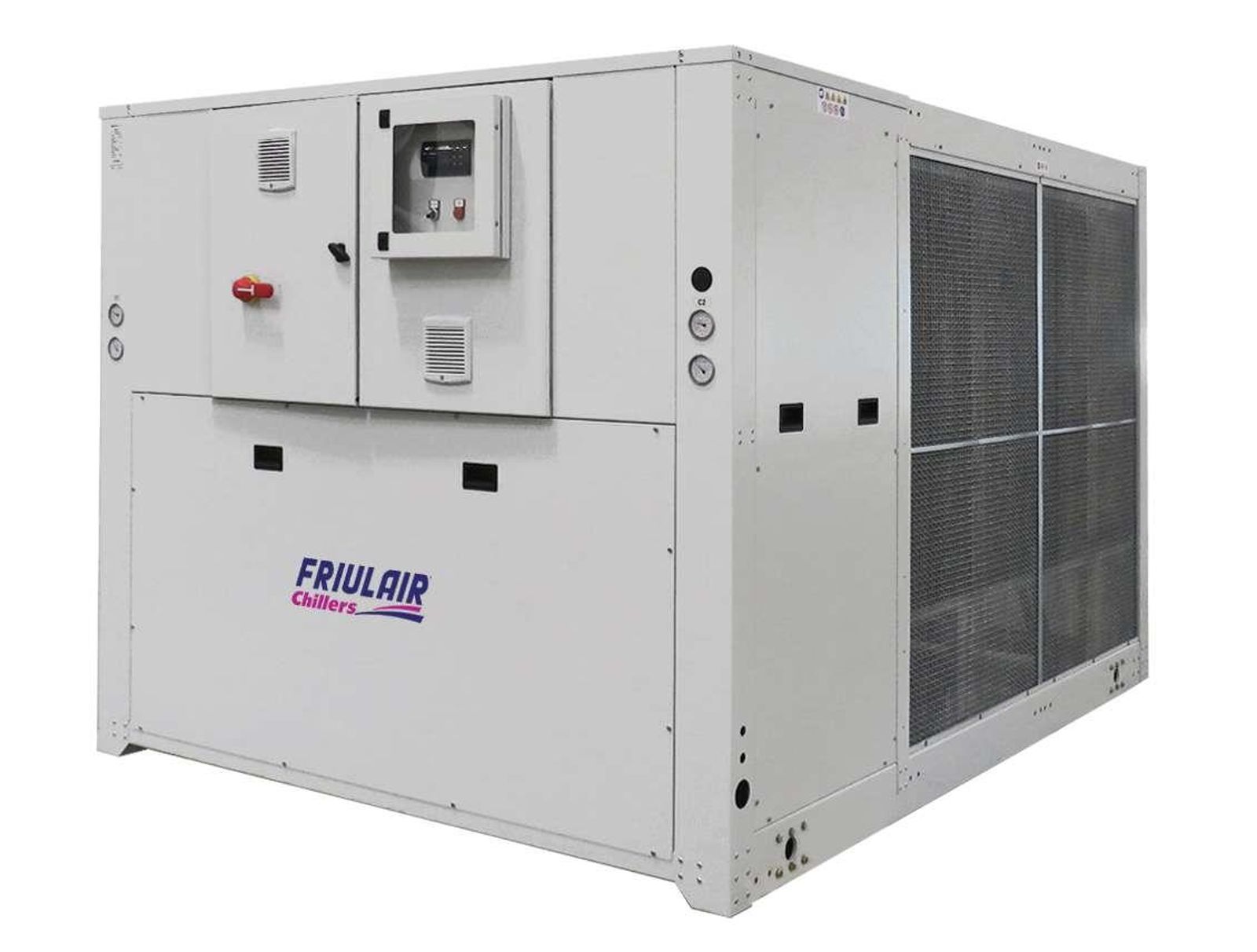

The CWB range consists on air cooled water chillers with axial fans for outdoor installation...

Main features

The CWB range consists on air cooled water chillers with axial fans for outdoor installation. The CWB family comprises 12 basic models with cooling capacities ranging from 140 to 570kW allowing flexibility of the unit configuration and of the related accessories according to the opearting conditions of the final installation. CWB units are particularly suitable for installations where continuous chilled water production is required even for applications in low external ambient temperatures..

All standardunits are equipped with:

The structure is made up of a galvanized steel frame with polyester powder coating,

making the CWB suitable for outdoor installation and for protection in harsh environments.

EASY MAINTENANCE

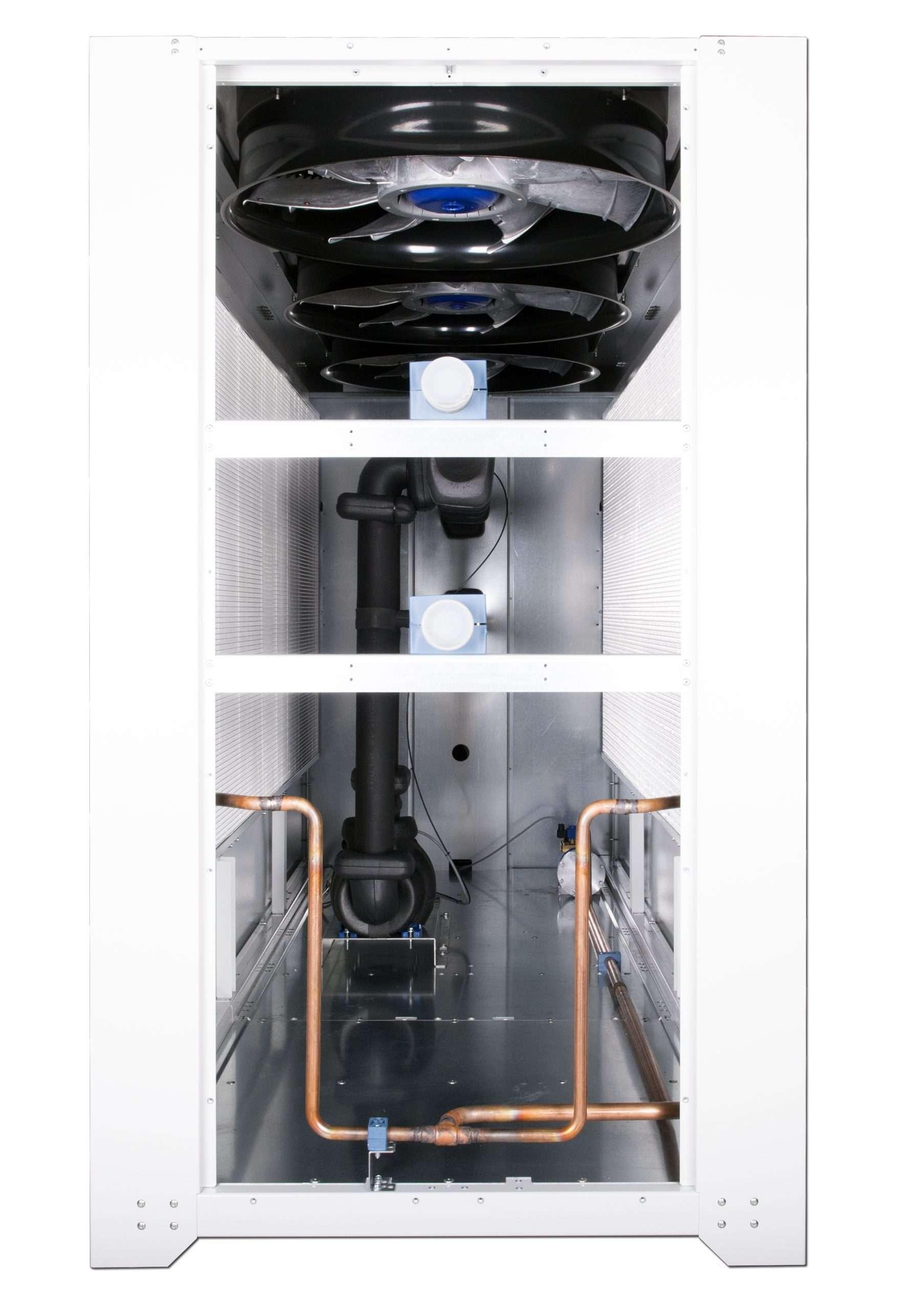

The compressor cabinet is separate from the fan’s section and is accessible on three sides to make control and maintenance easy. The hydraulic section is also easily accessible.

Cooling CapacitySeasonal energy efficiency rating
[kW] SEPR HT
CWB 140106.315.11
CWB 160123.325.14
CWB 190145.435.08
CWB 220170.285.11
CWB 270196.665.19
CWB 300213.675.11
CWB 320235.225.44
CWB 380279.755.35
CWB 420310.155.33
CWB 450337.815.27
CWB 510378.475.21
CWB 570416.185.51

Data referred to: water temp. in/out: 12/7°C – ambient air temp. 35°C
SEPR HT Data are in accordance with European Regulation (EU) 2016/2281 for eco-design requirements.
The complete technical data can be found in the product brochure.
