R410A Refrigerant
Cooling mode
Industry 4.0 Ready
Made in Italy

WATER COOLED MODULAR CHILLERS

from 21 to 115 kW (up to 575 kW in parallel)

The MWC is a modular water cooled chiller with scroll compressors and brazed plates heat exchanger...

Main features

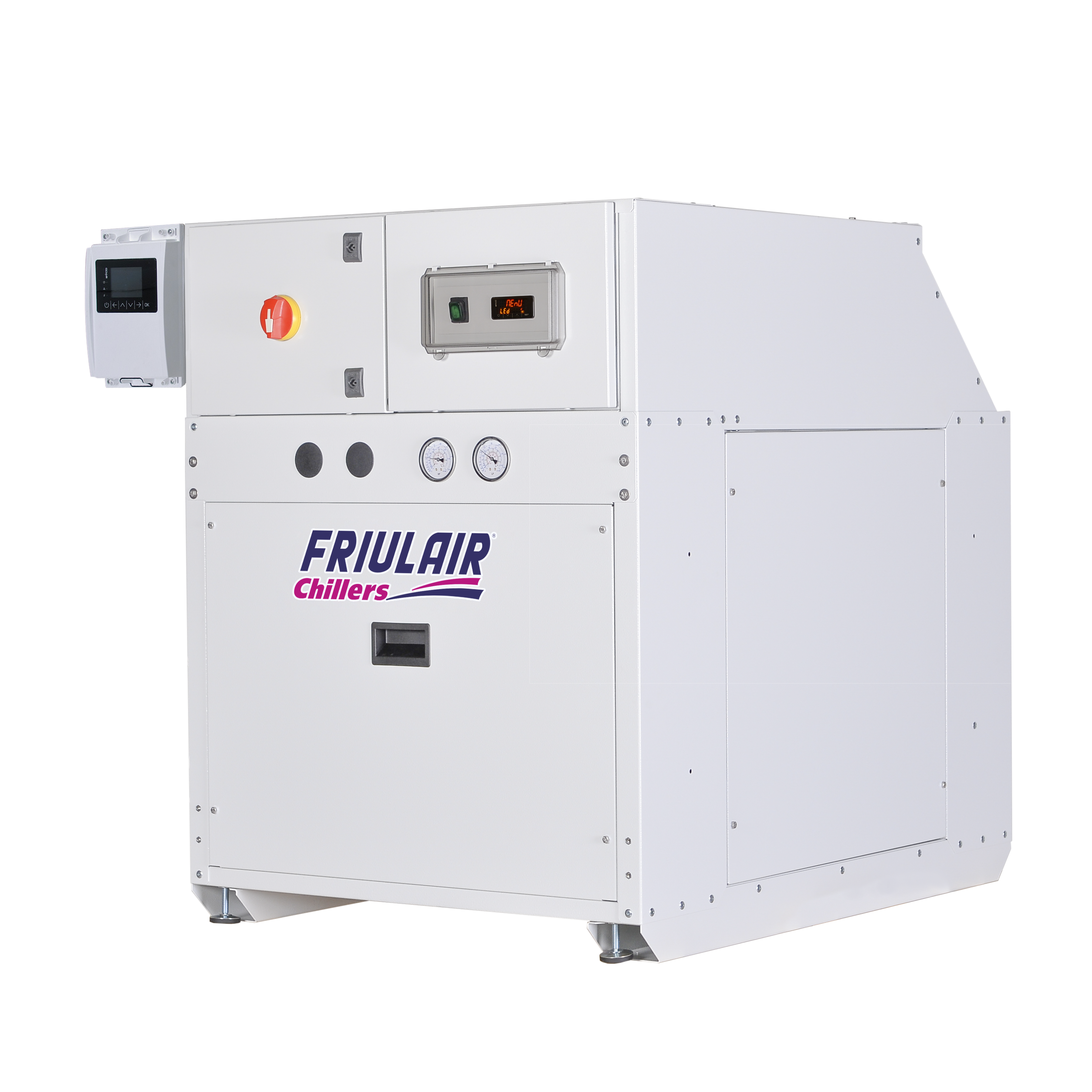

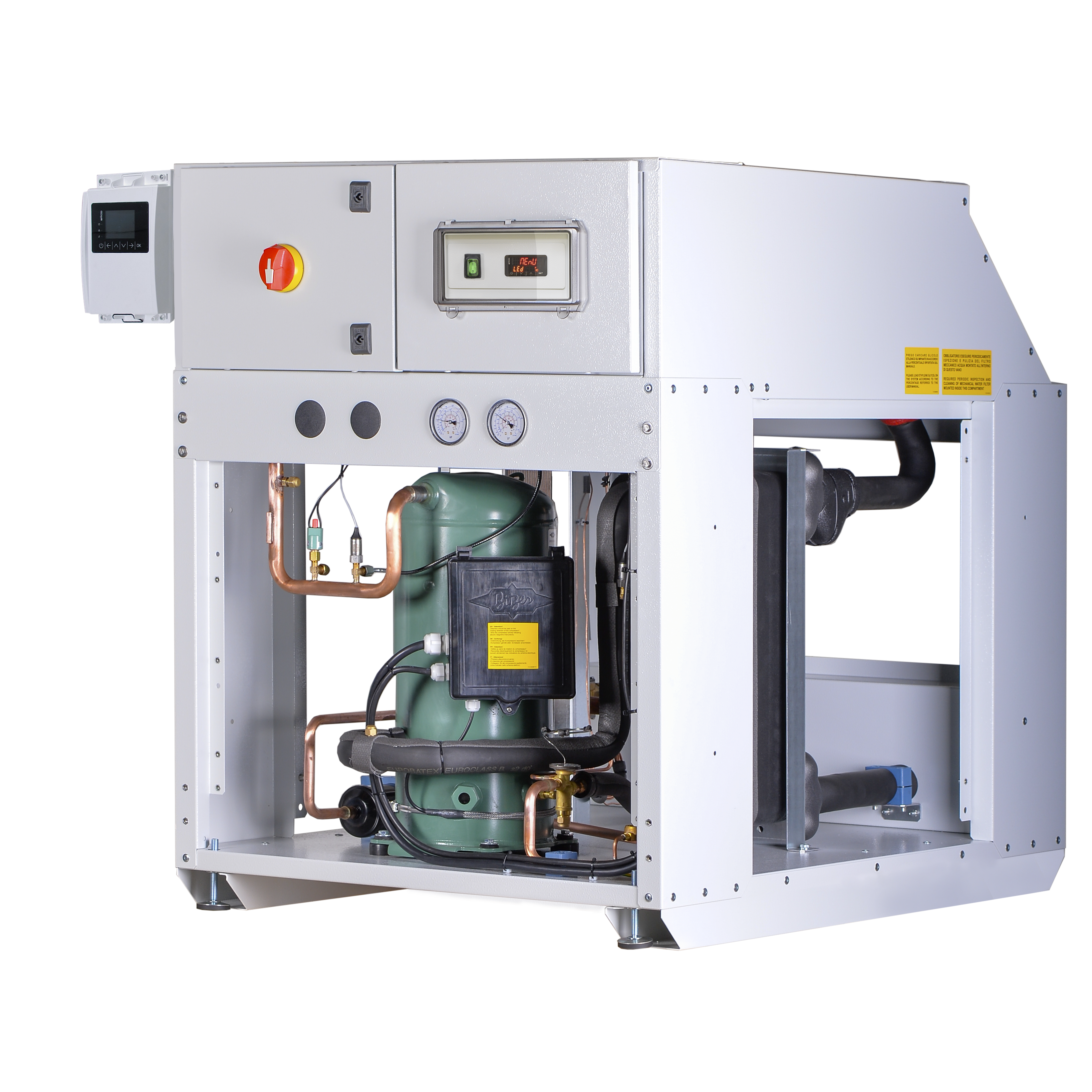

The MWC is a modular water cooled chiller with scroll compressors and brazed plates heat exchanger.

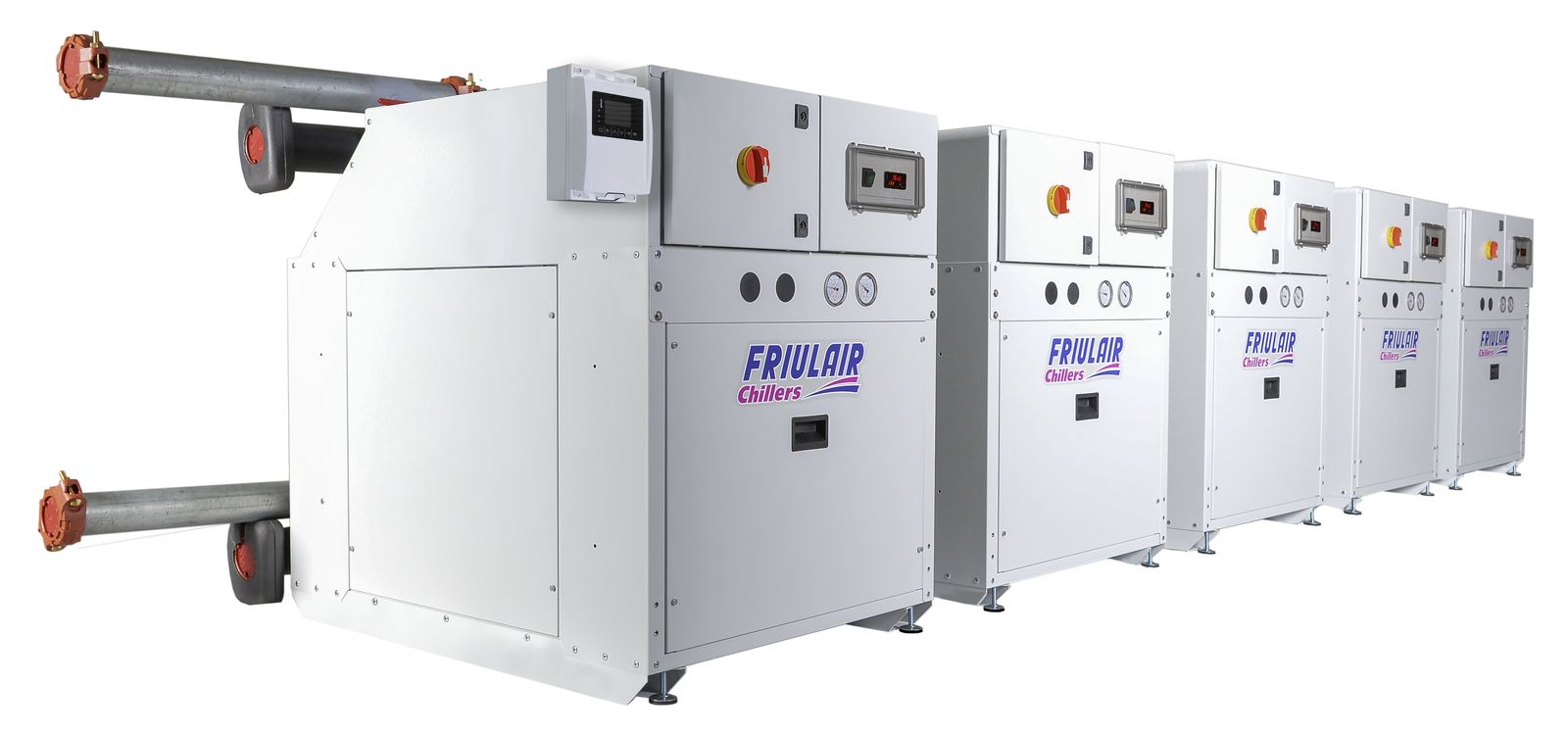

The range includes 7 models with cooling capacities from 21 to 115 kW and the possibility of connecting up to 5 units in parallel, to reach a total cooling capacity of 575 kW.

Thanks to its modular design, the MWC chiller can match existing and future capacity requirements simply adding modules.

It can also be field-assembled in limited-access mechanical rooms, standard doorways and onto typical freight elevators. These are their main characteristics:

ENERGY EFFICIENCY

The modular and water cooled configuration guarantees better EER and SEER ratings than those offered by normal air-cooled chillers.

GREEN SOLUTION

The use of plate heat exchangers and the modular solution of the units reduce the amount of refrigerant charge. Additionally, the R410A (Ozone friendly) refrigerant, is able to provide superior performance comparing to the most other synthetic refrigerants.

MODULAR SYSTEM

Each machine has an independent electronic panel to control and optimize all MWC chiller components and functions. Then, the same controller can be easily connected to a serial chain from the Master Panel (EVG option), to ensure the best performance of the modular system, with minimal field wiring. A maximum of 5 units can be connected in parallel and supervised by our Sequencer. An RS485 connection is available with native Modbus communication.

.Cooling CapacityEnergy efficiency ratingSeasonal energy efficiency rating
[kW]EERSEER
MWC 02116.433.955.20
MWC 04133.884.225.42
MWC 04233.323.986.20
MWC 05343.034.265.37
MWC 07558.444.226.09
MWC 10075.744.336.20
MWC 140114.964.266.04

Data referred to: evaporator water temp. in/out: 12/7°C – condenser water temp. in/out: 35/40°C
SEER Data reported here are in accordance with European Regulation (EU) 2016/2281 for eco-design requirements of cooling products and high temperature process chillers.
The complete technical data can be found in the product brochure.

AVAILABLE OPTIONS FOR SINGLE UNIT:

AVAILABLE OPTIONS FOR MODULAR UNITS (2 or more MWC):
