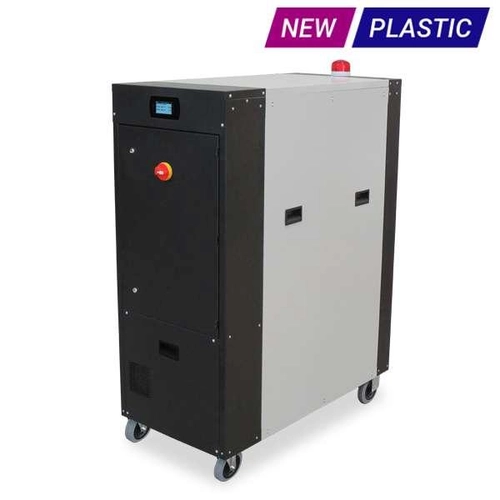

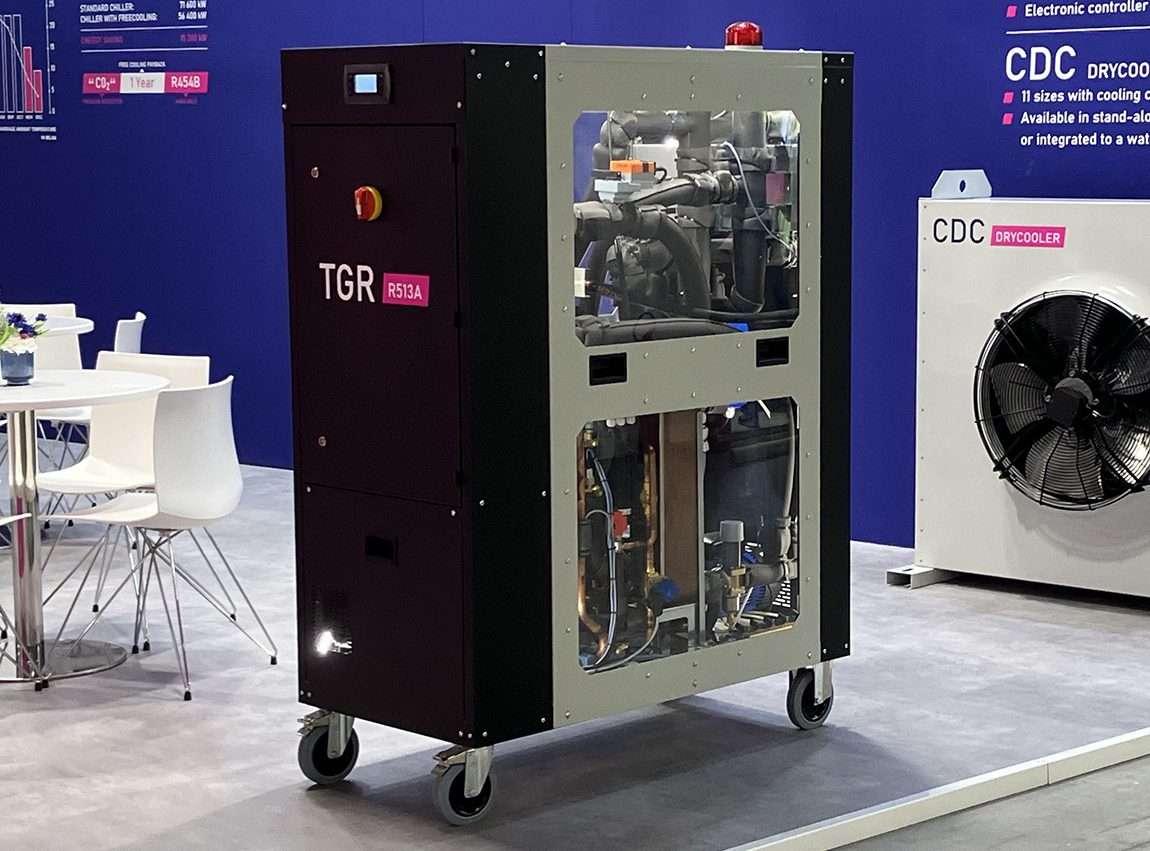

THERMO-CHILERS for injection molding

8 to 60 kW

Eco-friendly specific solution for injection molding. Water-cooled thermo-chiller with integrated freecooling and single or dual zone...

Main features

Eco-friendly specific solution for injection molding. Water-cooled thermo-chiller with integrated freecooling and single or dual zone.

The TGR Thermo-chiller grants precise thermal control of the molds and optimizes the cooling cycle time. TGRs use the environmental friendly refrigerant gas R513A and are engineered with integrated freecooling to achieve the maximum energy saving. Single or dual zone configuration is available along with P4 (std.) or P6 (opt.) high flow pumps; the thermoregulation of each zone is performed by means of a 3-way valve and a heating resistor.

Previous
Next

BENEFITS


ModelsCooling power [1]Compressors power inputTotal water flow rate [2]
[kW][kW][m3/h]
TGR 0088.041.63.46
TGR 01211.422.234.91
TGR 01715.383.376.61
TGR 02121.914.819.42
TGR 03028.536.2512.27
TGR 03532.957.3114.17
TGR 04844.679.7319.21
TGR 06057.0712.0524.54


[1] Data referred to users water temperature 10 °C, delta T 2 °C, condenser water temperature 30/35 °C.
[2] Data referred to the total water flow for single zone version. In each circuit of the dual zone version, the water flow rate is approx the half of the total.
The complete technical data are available in the brochure.
