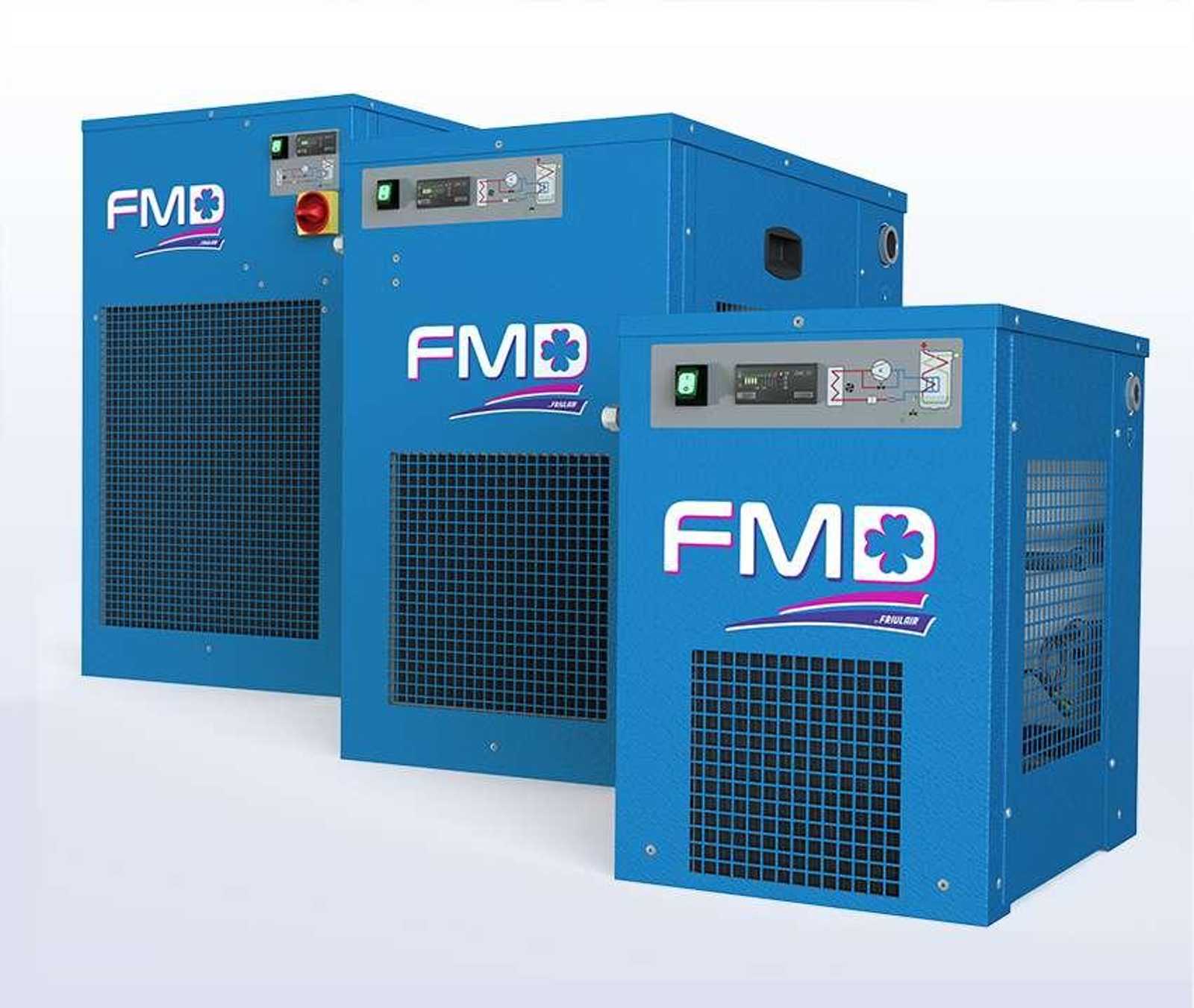

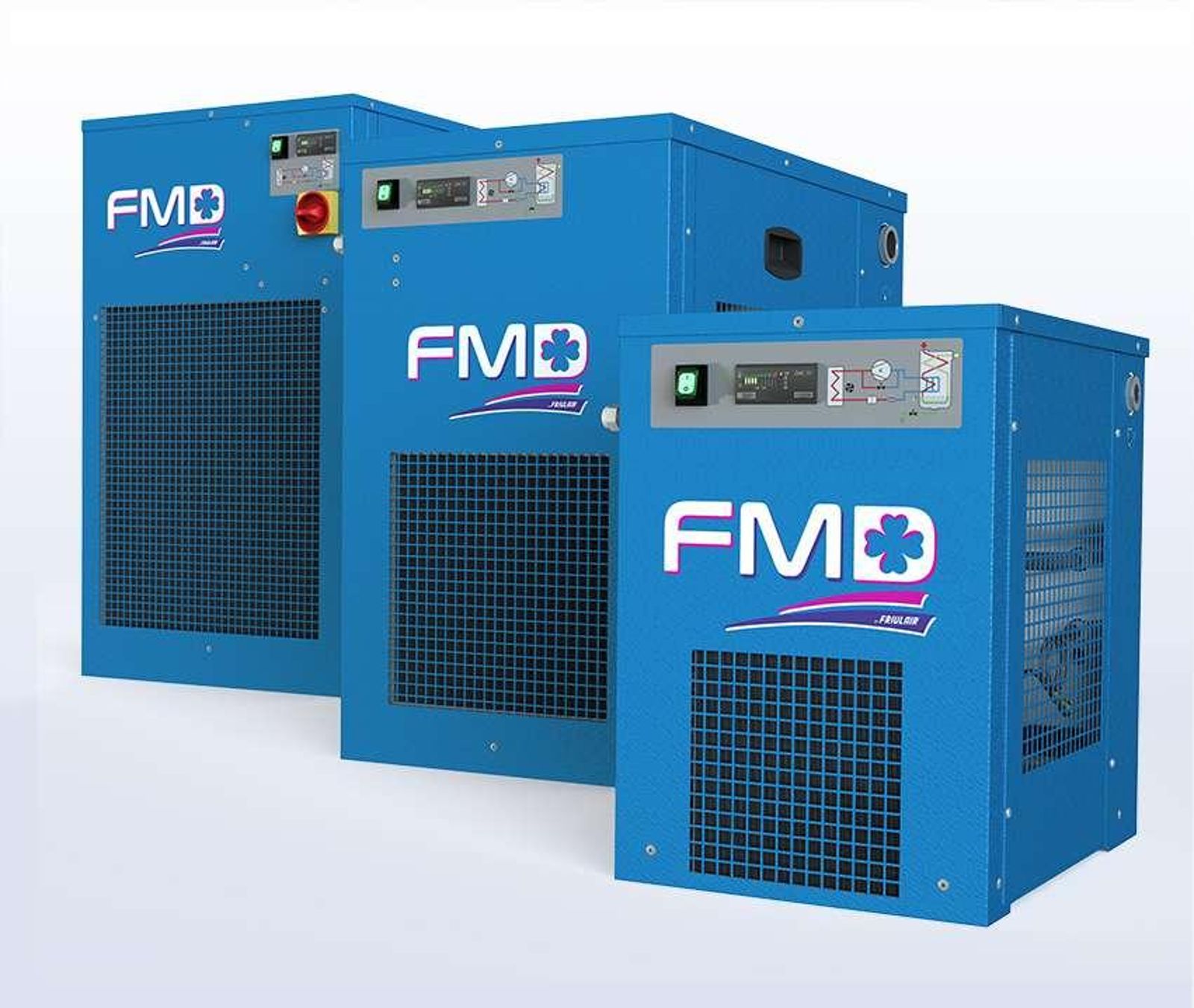

FMD Refrigeration Air Dryers

Refrigeration air dryers with low GWP R513A refrigerant

Flow rate: 21 ÷ 1 320 m³/h

Expanding on their innovative line of compressed air solutions, Friulair introduces the FMD Series, setting a new standard in refrigeration drying technology. Engineered for maximum efficiency and eco-friendliness, these models use R513A refrigerant to minimize global warming potential. They offer excellent dew point control, ensuring reliable operation across varied conditions. With a design a design focused on sustainability and easy maintenance, the FMD series highlights Friulair's commitment to reducing energy consumption while maintaining high levels of performance, even in the face of complex environmental challenges.

The new FMD series of refrigeration dryers replaces the “Original” AMD and has been redesigned considering:

The use of R513A refrigerant gas with very low environmental impact (GWP = 631_CO2 ton/eq);
An improved dew point at 3°C;
New compactness ALU-DRY heat exchangers;

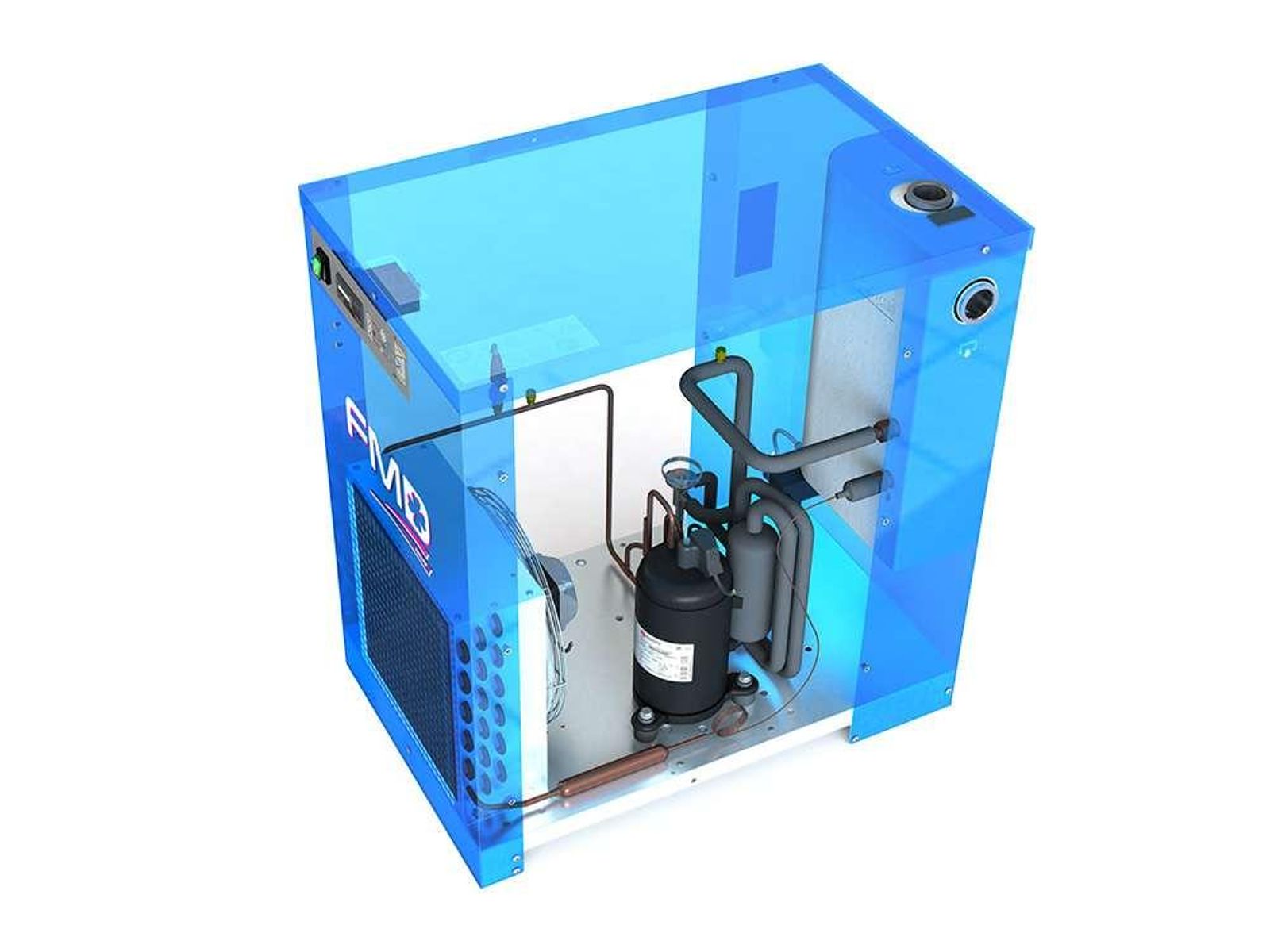

New component layout;
A new frame design for greater strength.

Symbolised by a four-leaf clover, FMDs have four indispensable features for compressed air treatment.

Consistent and guaranteed performance over a wide range of temperature use.
Cost-effectiveness due to their compatibility with the compressor sizes on the market.
Functionality with user-friendly electronic controllers (INDUSTRY 4.0 ready) for managing condensate drainage and condensation, stainless steel hot gas by-pass valve and ALU-DRY heat exchanger on the entire range.
Ecology: the materials used are highly recyclable and R513A refrigerant gas comply with current regulations.

MAXIMUM WORKING CONDITIONS

Ambient temperature: + 45°C
Air inlet pressure: 16 barg
Inlet air temperature: + 55°C

Model	Refrigerant		Air flow		Power Supply	Connections
	[Type]	[m³/h]	[l/min]	[scfm]	[Ph/Volt/Fr]	[ Ø ]
FMD 3	R513A	21	350	12	1/230/50-60	1/2″
FMD 6	R513A	36	600	21	1/230/50-60	1/2″
FMD 9	R513A	57	950	34	1/230/50-60	1/2″
FMD 12	R513A	72	1200	42	1/230/50-60	1/2″
FMD 18	R513A	108	1800	64	1/230/50-60	1/2″
FMD 25	R513A	150	2500	88	1/230/50-60	1″
FMD 32	R513A	192	3200	113	1/230/50	1.1/4″
FMD 43	R513A	258	4300	152	1/230/50	1.1/4″
FMD 52	R513A	312	5200	184	1/230/50	1.1/4″
FMD 61	R513A	366	6100	216	1/230/50	1.1/4″
FMD 75	R513A	450	7500	265	1/230/50	1.1/4″
FMD 105	R513A	630	10500	371	1/230/50	2″
FMD 130	R513A	780	13000	459	1/230/50	2″
FMD 168	R513A	1008	16800	594	1/230/50	2.1/2″
FMD 190	R513A	1140	19000	670	3/400/50	2.1/2″
FMD 220	R513A	1320	22000	777	3/400/50	2.1/2″

Data refer to the following nominal conditions: ambient temperature +25°C; air inlet pressure 7 barg; air inlet temperature +35°C; and a pressure dew point of 3°C.

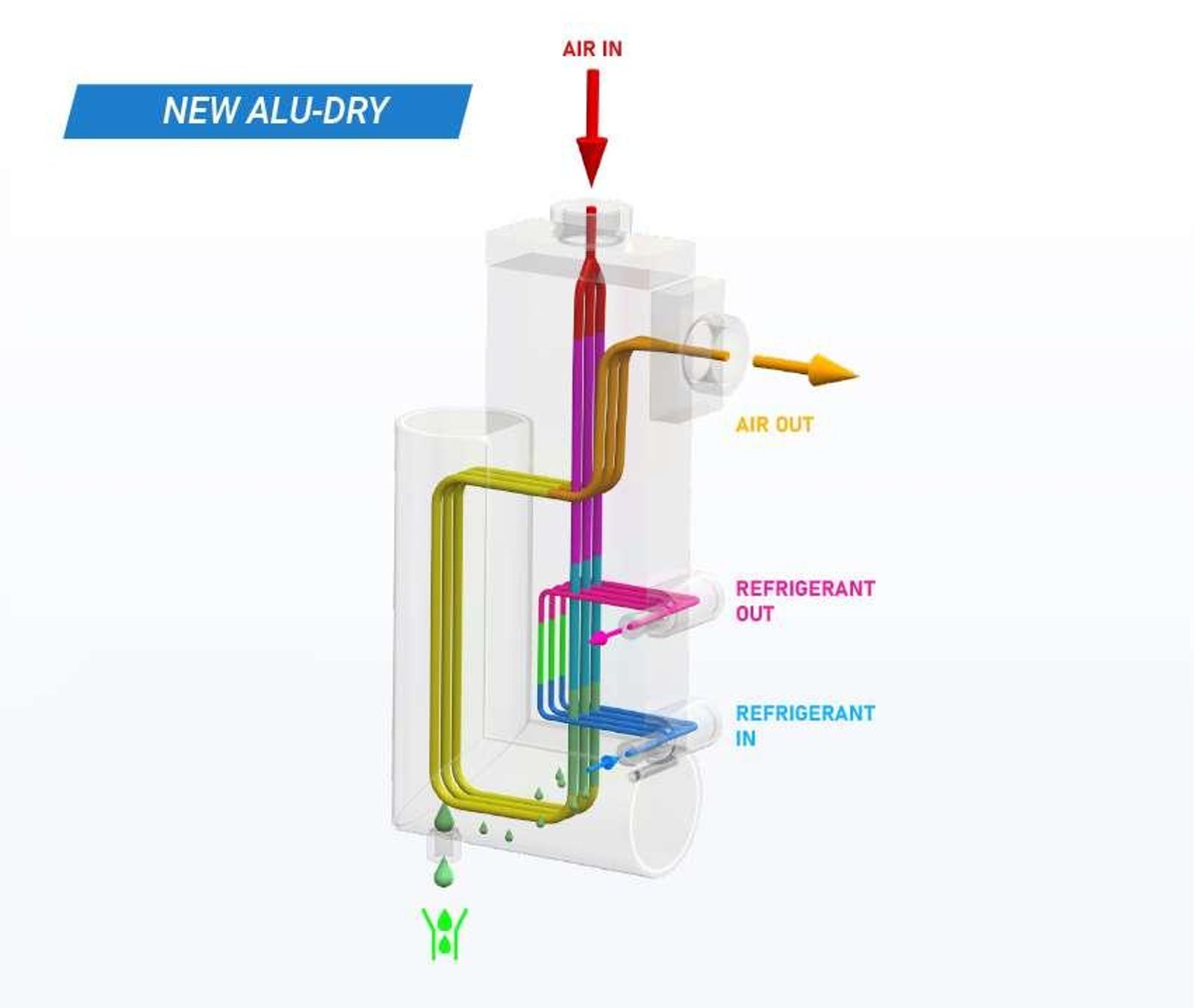

ALU DRY aluminium heat exchanger
High-efficiency compressor
Generously sized condenser unit
DMC35 modbus RS485 digital controller
Refrigerant compressor thermal or thermo-ammeter protection
Automatic condensation pressure control
High compressor discharge temperature protection (from FMD75)
Refrigerant compressor phase sequence relay protection (3ph models)
Refrigerant high- and low-pressure safety pressure switches
Hot gas bypass valve
Timed condensation drain
Compressor crankcase heater (3ph models only)
On request models with different Power Supply and different connections [Ph/V/Hz]
