Air-Cooled Industrial Chillers from 280 to 1200 kW with R513A

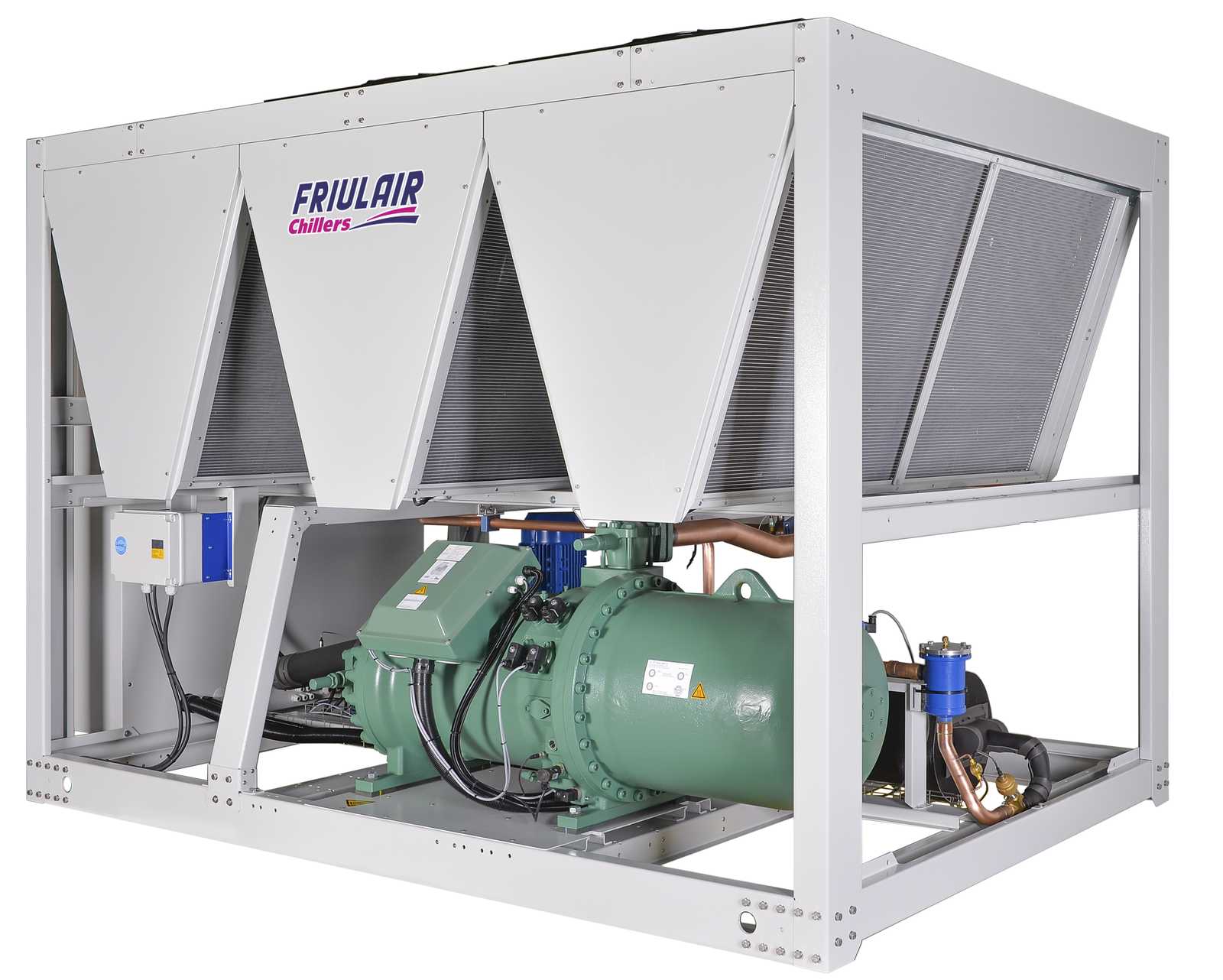

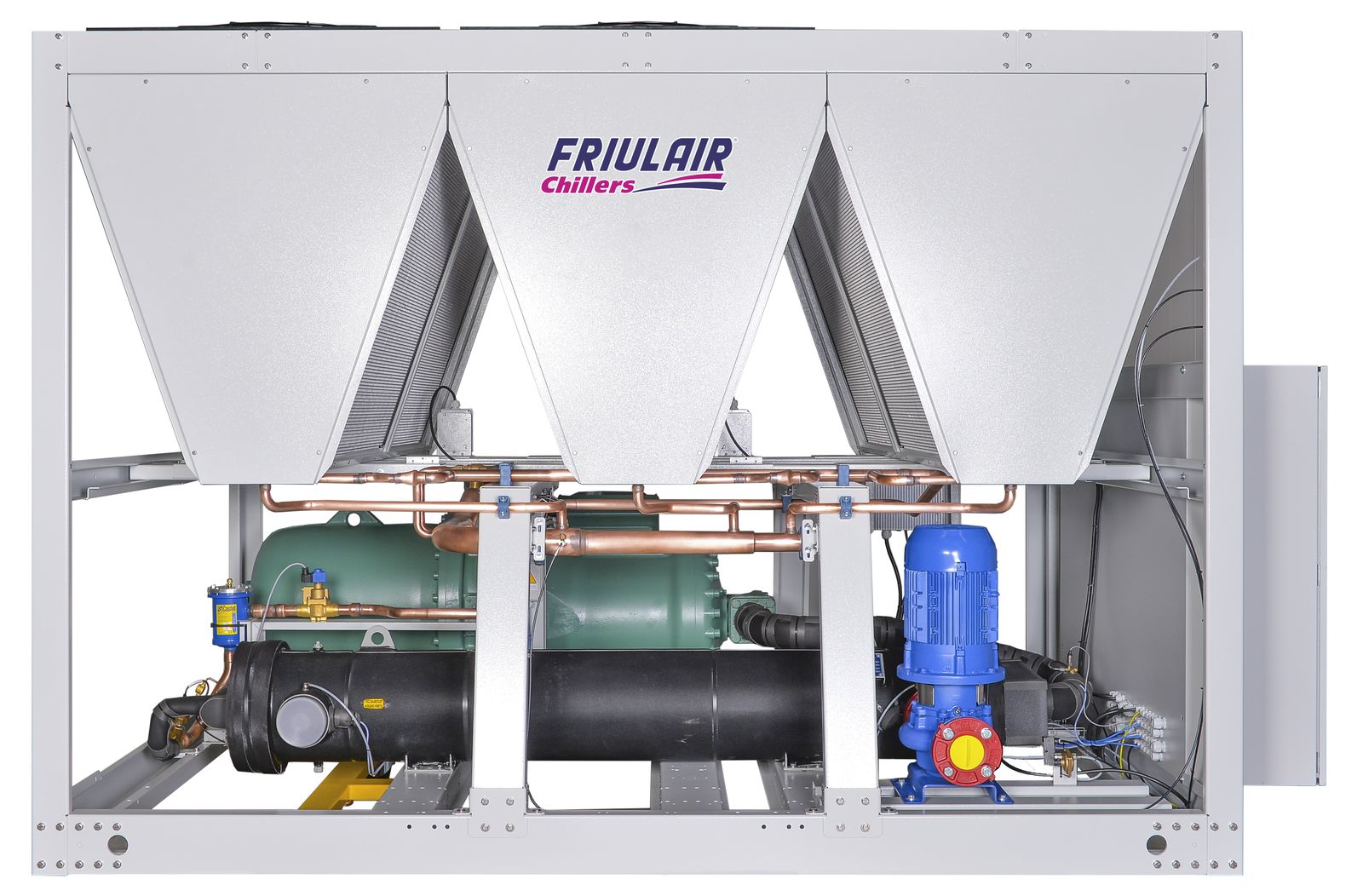

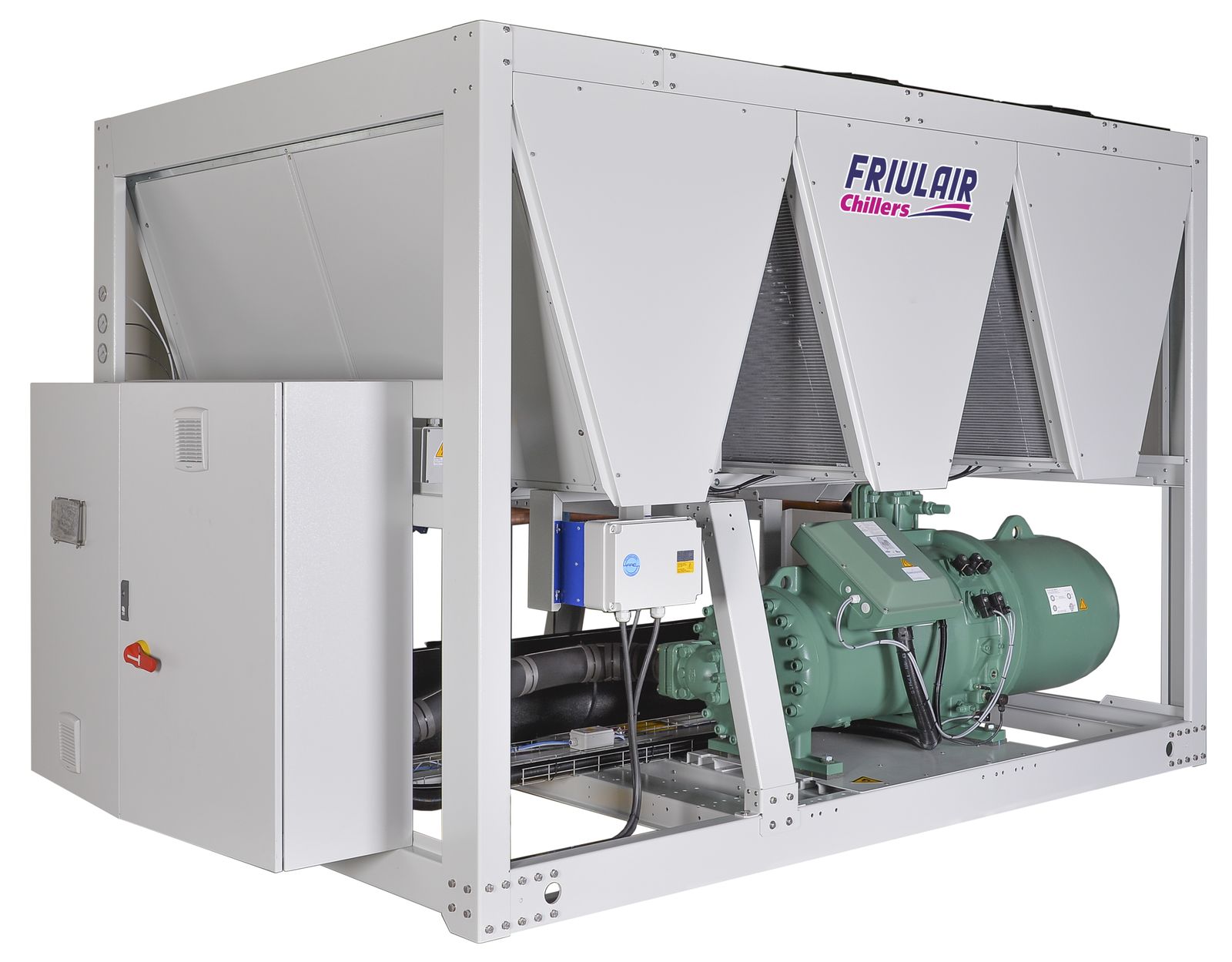

The FCWV Series air-cooled screw compressor chillers deliver cooling capacities from 280 to 1200 kW and represent the evolution of the CWV range. Designed for medium and large-scale industrial applications, these units ensure high performance, energy efficiency, and long-term operational reliability.
The FCWV chillers guarantee precise control of the chilled fluid temperature, even under severe environmental conditions and during extended continuous operation. The entire range is specifically engineered for outdoor installation.
The FCWV Series is available with eco-friendly R513A refrigerant, characterized by a low Global Warming Potential (GWP 631) and reduced environmental impact. This solution complies with current environmental regulations while maintaining excellent thermodynamic efficiency and stable operation.
The FCWV Series has been engineered to ensure high efficiency and reliability in outdoor installations. The range includes 19 models covering cooling capacities from 280 to 1200 kW, making it suitable for a wide variety of industrial cooling applications. All units provide reliable temperature control of the chilled fluid and stable performance over long operating periods, even in demanding ambient conditions.
All standard FCWV units are equipped with high-quality components, selected to ensure performance, durability, and operational stability:
The FCWV Series features a galvanized steel frame with an additional polyester powder coating, providing enhanced resistance to corrosion and harsh outdoor conditions.
All fasteners are made of stainless steel or electro-galvanized steel, ensuring long-term mechanical strength and reliability.
This robust construction makes the FCWV range particularly suitable for continuous outdoor industrial operation.
. | Cooling Capacity | Seasonal energy efficiency rating |
| [kW] | SEPR HT |
CWV 281 | 263.57 | 5.17 |
CWV 282 | 251.47 | 5.03 |
CWV 331 | 314.87 | 5.35 |
CWV 332 | 303.57 | 5.2 |
CWV 381 | 371.97 | 5.49 |
CWV 382 | 370.07 | 5.08 |
CWV 451 | 434.65 | 5.52 |
CWV 452 | 425.03 | 5.54 |
CWV 521 | 501.51 | 5.53 |
CWV 522 | 483.96 | 5.52 |
CWV 601 | 574.36 | 5.56 |
CWV 602 | 557.83 | 5.5 |
CWV 652 | 626.33 | 5.54 |
CWV 702 | 702.86 | 5.6 |
CWV 762 | 755.87 | 5.6 |
CWV 832 | 821.53 | 5.52 |
CWV 902 | 876.23 | 5.51 |
CWV 1052 | 988.44 | 5.52 |
CWV 1202 | 1151.58 | 5.5 |
The data below refers to CWV models with R134a. The complete CWV technical data can be found in the product brochure.
Data referred to: water temp. in/out: 12/7°C – ambient air temp. 35°C
SEPR HT Data are in accordance with European Regulation (EU) 2016/2281 for eco-design requirements.
The FCWV chiller series is highly configurable:
