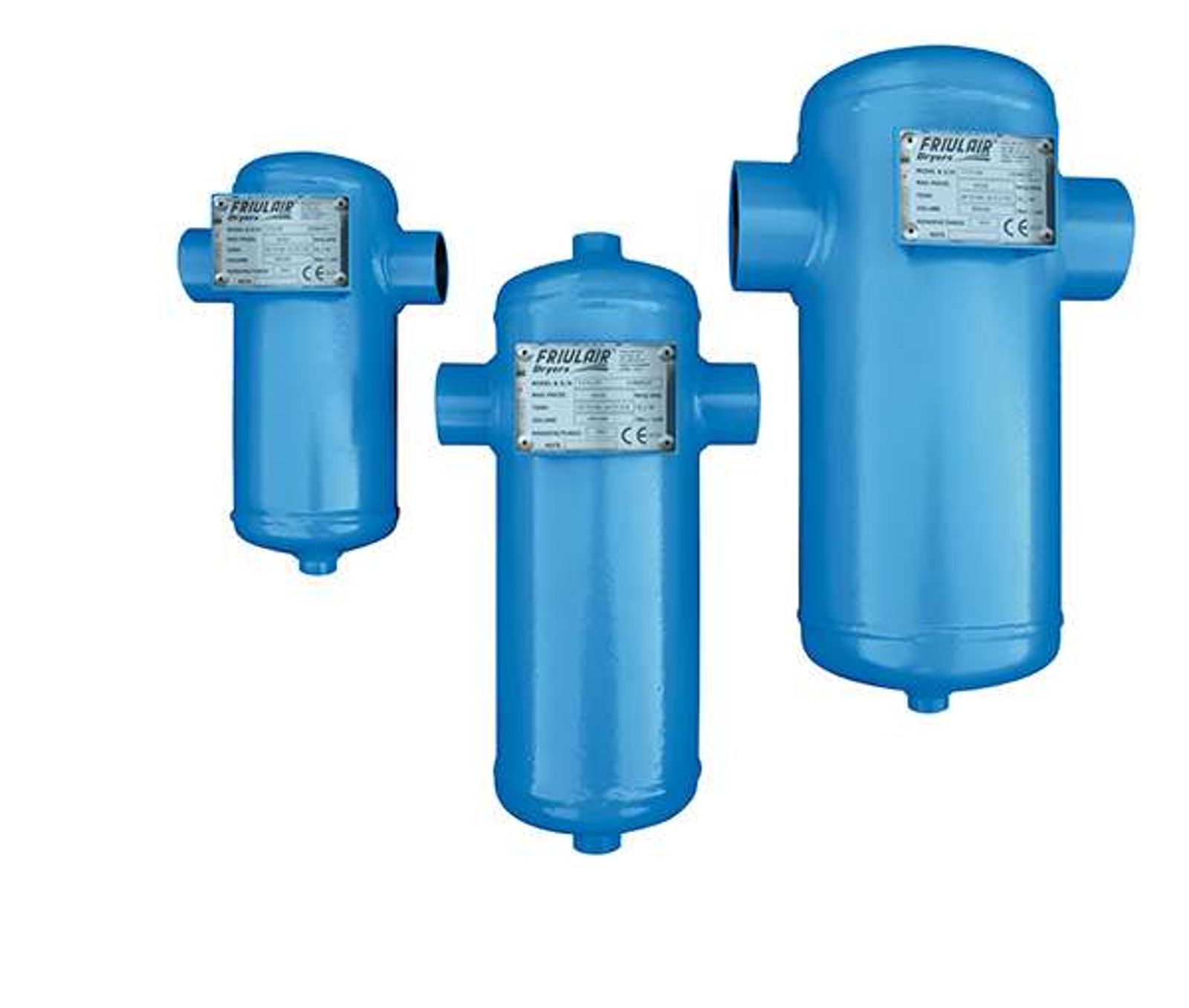

CARBON STEEL CONDENSATE SEPARATORS

Flow rate: 126 ÷ 4 290 m3/h

Centrifugal Condensate Separator is highly efficient even under variable flow rates, does not require maintenance...

Main features

Centrifugal Condensate Separator is highly efficient even under variable flow rates, does not require maintenance, does not clog and can retain solid particles. A finned diaphragm imparts a high-speed rotary motion to the incoming air, so that the condensate particles adhere to the side surface due to the centrifugal force, and then slide to the bottom of the separator. The bottom acts as a storage tank for the separated condensate, which is expelled by a drain. The CCS range is supplied with manual drain or automatic condensate drainage devices.

MAXIMUM WORKING CONDITIONS

Inlet air pressure: 15 barg

ModelAir flowConnectionsDrain
[Nm3/h][Nl/min][scfm][ Ø ][Ø]
CCS 21126210074G 1” BSP-FG 1/2” BSP-F
CCS 492944900173G 1.1/2” BSP-FG 1/2” BSP-F
CCS 12977412900456G 2” BSP-FG 1/2” BSP-F
CCS 16599016500583G 2.1/2” BSP-FG 1/2” BSP-F
CCS 210126021000742DN80 – PN16 G 1/2” BSP-F
CCS 3151890315001112DN100 – PN16 G 1/2” BSP-F
CCS 5153090515001819DN125 – PN16 G 3/4” BSP-F
CCS 7504290750002525DN125 – PN16 G 3/4” BSP-F

Efficiency higher than 99%. Max. inlet air pressure 15 barg.

OPTIONS AND ACCESSORIES

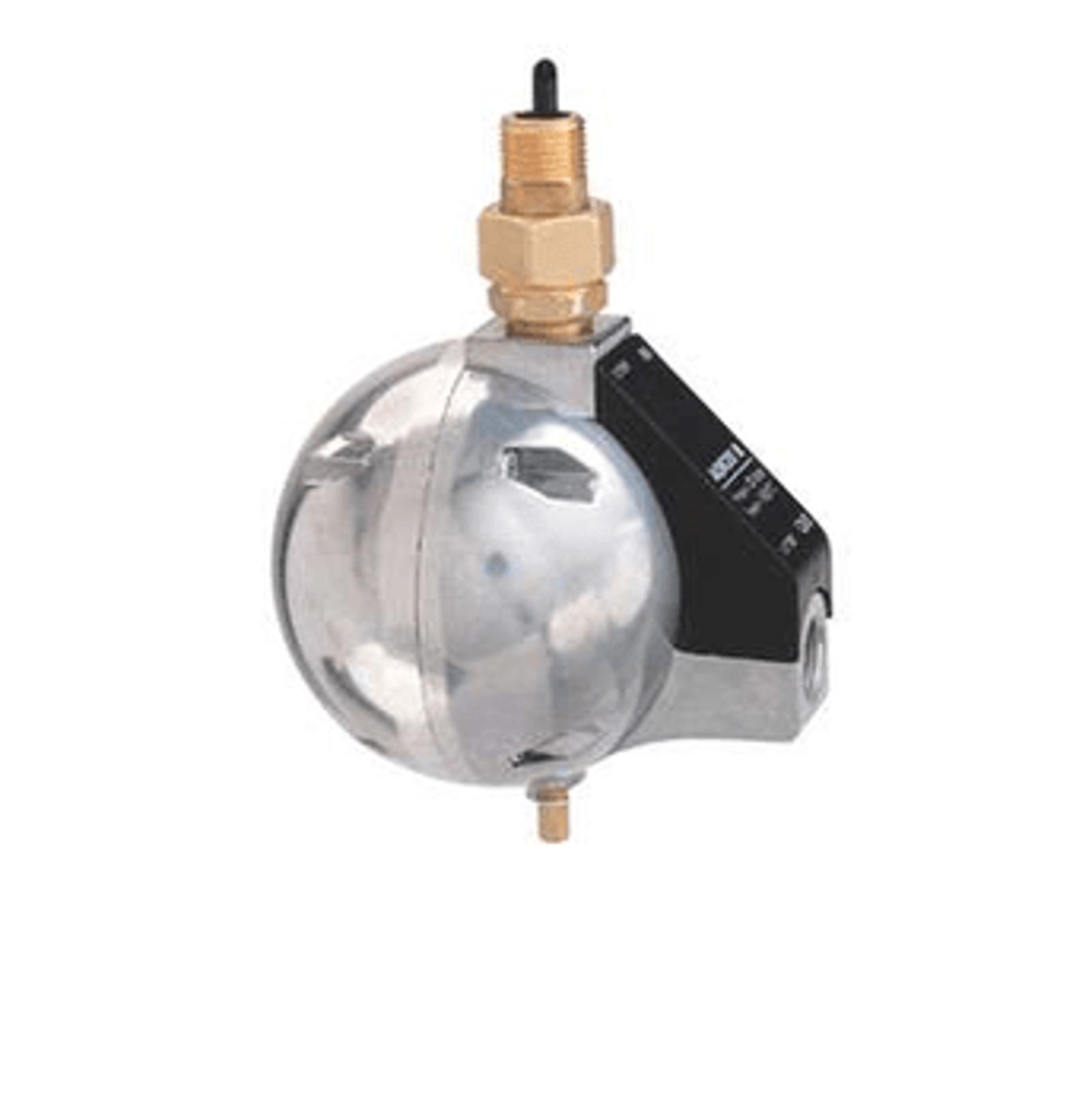

SCG20

Automatic float condensate drain

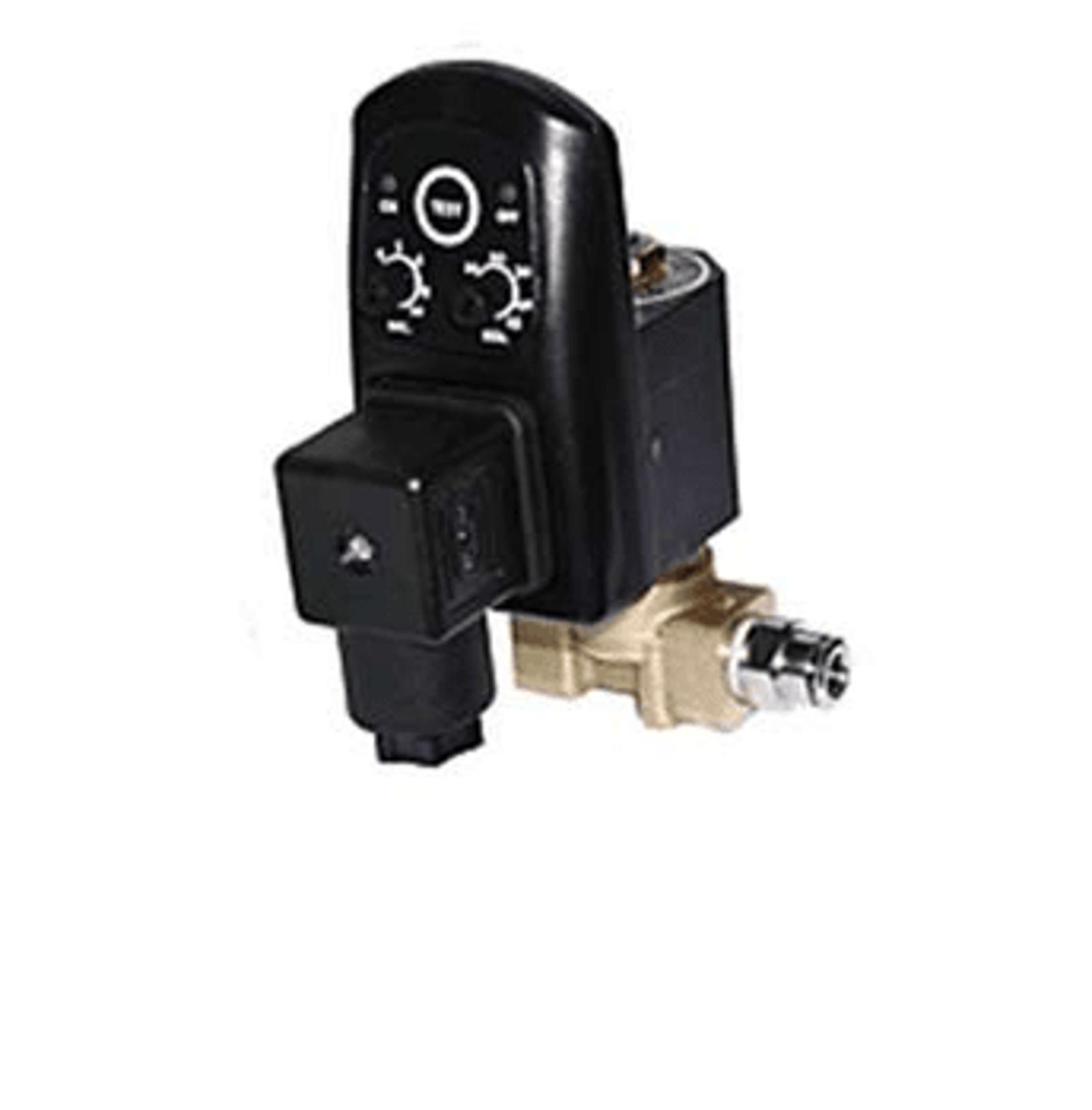

SCE02

Automatic timed condensate drain

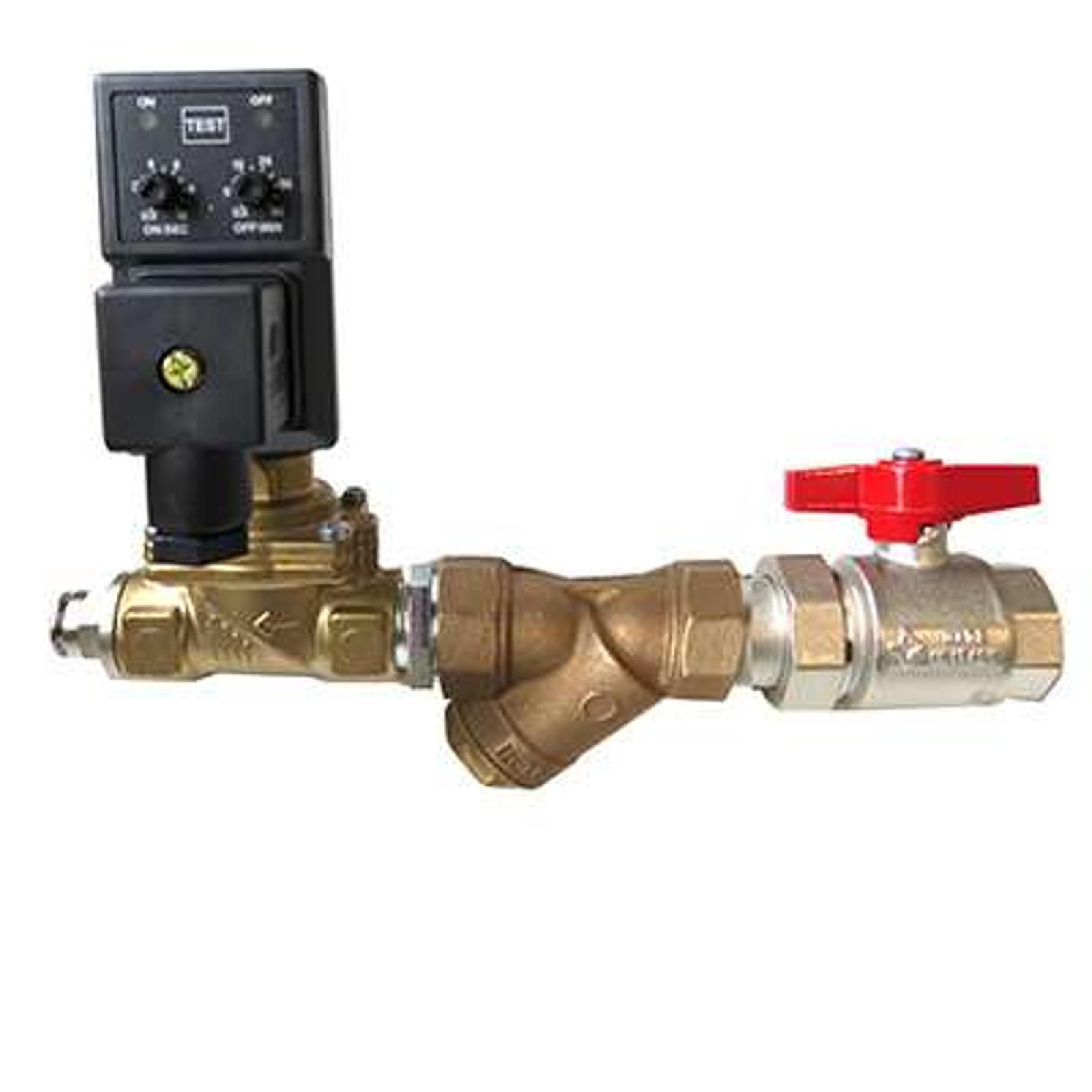

SCE05

Automatic timed condensate drain
