ACT ES

Energy Saving
Industry 4.0 Ready
Made in Italy

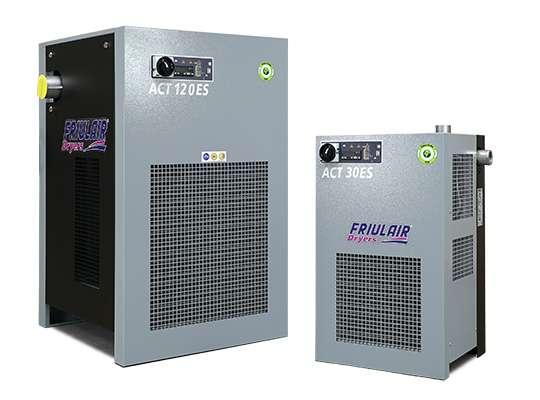

REFRIGERATION DRYERS WITH DIRECT THERMAL MASS

Flow rate: 21 ÷ 960 m3/h

The ACT ES ENERGY SAVING range of dryers was designed to reduce energy consumption.

Main features

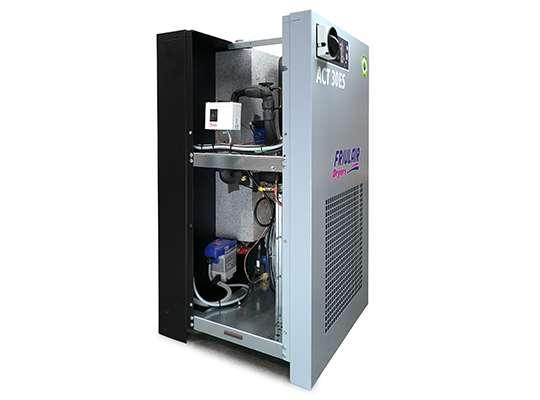

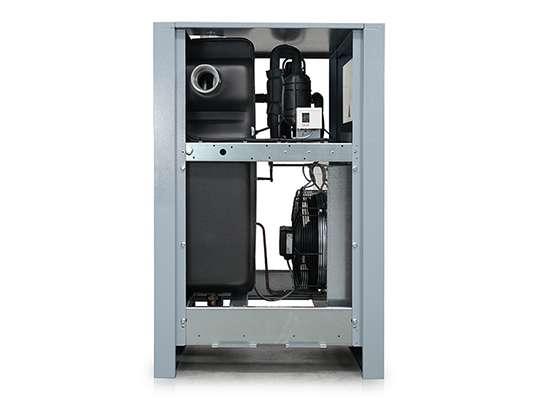

The ACT ES ENERGY SAVING range of dryers was designed to reduce energy consumption. It originates from the ACT range and shares the same construction philosophy and main features. The ACT ES range uses the principle of direct expansion applied to the ALU-DRY exchanger thermal mass. This allows the compressor to switch off when the dryer’s thermal demand is met by the cold mass of the aluminium module and the refrigerant evaporation accumulated in the evaporator. With the machine’s sensors, the electronic controller can manage the compressor and fan on/off cycles, optimising performance and limiting energy consumption, depending on the dryer’s working conditions. To achieve energy savings, the range is equipped with a standard capacitive condensate drain which prevents the expulsion of compressed air together with condensed water. Dedicated selection software calculates energy savings compared to the standard version.

The graph compares the consumption of the ACT ES dryers to the ACT standard model, at the different load conditions.

Graphs_ACTES

MAXIMUM WORKING CONDITIONS
   Ambient temperature: + 50°C
   Inlet air pressure: 16 barg (ACT3÷18) - 14 barg
   Inlet air temperature: + 70°C

ModelRefrigerantAir flowPower SupplyConnections
.[Type][m3/h][l/min][scfm][Ph/Volt/Fr][ Ø ]
ACT 3 ESR 134.a2135012G 1/2” BSP-F1/230/50-60
ACT 5 ESR 134.a3355019G 1/2” BSP-F1/230/50-60
ACT 8 ESR 134.a5185030G 1/2” BSP-F1/230/50-60
ACT 12 ESR 134.a721 20042G 1/2” BSP-F1/230/50-60
ACT 18 ESR 134.a1081 80064G 1” BSP-F1/230/50-60
ACT 23 ESR 134.a1382 30081G 1” BSP-F1/230/50
ACT 30 ESR 407C1863 100109G 1.1/4” BSP-F1/230/50
ACT 40 ESR 407C2404 000141G 1.1/4” BSP-F1/230/50
ACT 55 ESR 407C3305 500194G 1.1/2” BSP-F1/230/50
ACT 60 ESR 407C3726 200219G 1.1/2” BSP-F1/230/50
ACT 80 ESR 407C4868 100286G 2” BSP-F1/230/50
ACT 100 ESR 407C63010 500371G 2” BSP-F1/230/50
ACT 120 ESR 407C75012 500441G 2.1/2” BSP-F1/230/50
ACT 140 ESR 407C87014 500512G 2.1/2” BSP-F1/230/50
ACT 160 ESR 407C96016 000565G 2.1/2” BSP-F1/230/50
ACT 55 ES 3phR 134.a3305 500194G 1.1/2” BSP-F3/400/50
ACT 60 ES 3phR 134.a3726 200219G 1.1/2” BSP-F3/400/50
ACT 80 ES 3phR 134.a4868 100286G 2” BSP-F3/400/50
ACT 100 ES 3phR 134.a63010 500371G 2” BSP-F3/400/50
ACT 120 ES 3phR 407C75012 500441G 2.1/2” BSP-F3/400/50
ACT 140 ES 3phR 407C87014 500512G 2.1/2” BSP-F3/400/50
ACT 160 ES 3phR 407C96016 000565G 2.1/2” BSP-F3/400/50

Data refer to the following nominal condition: ambient temperature + 25 °C; inlet air pressure 7 barg; inlet air temperature +35 °C.

OPTIONS AND ACCESSORIES

TAC

Anti corrosion treatment

BK

Zero loss drain

SERVICE UNIT

8.000 hours maintenance kit for BK type electronic drain

BY-PASS

By-pass group
