ACT VS

Eco-Friendly
Industry 4.0 Ready
Made in Italy

Variable Speed Refrigeration Dryers

Flow rate: 1 260 ÷ 17 664 m3/h

ACT VS ENERGY SAVING is the most advanced Friulair’s refrigeration dryer range.

Main features

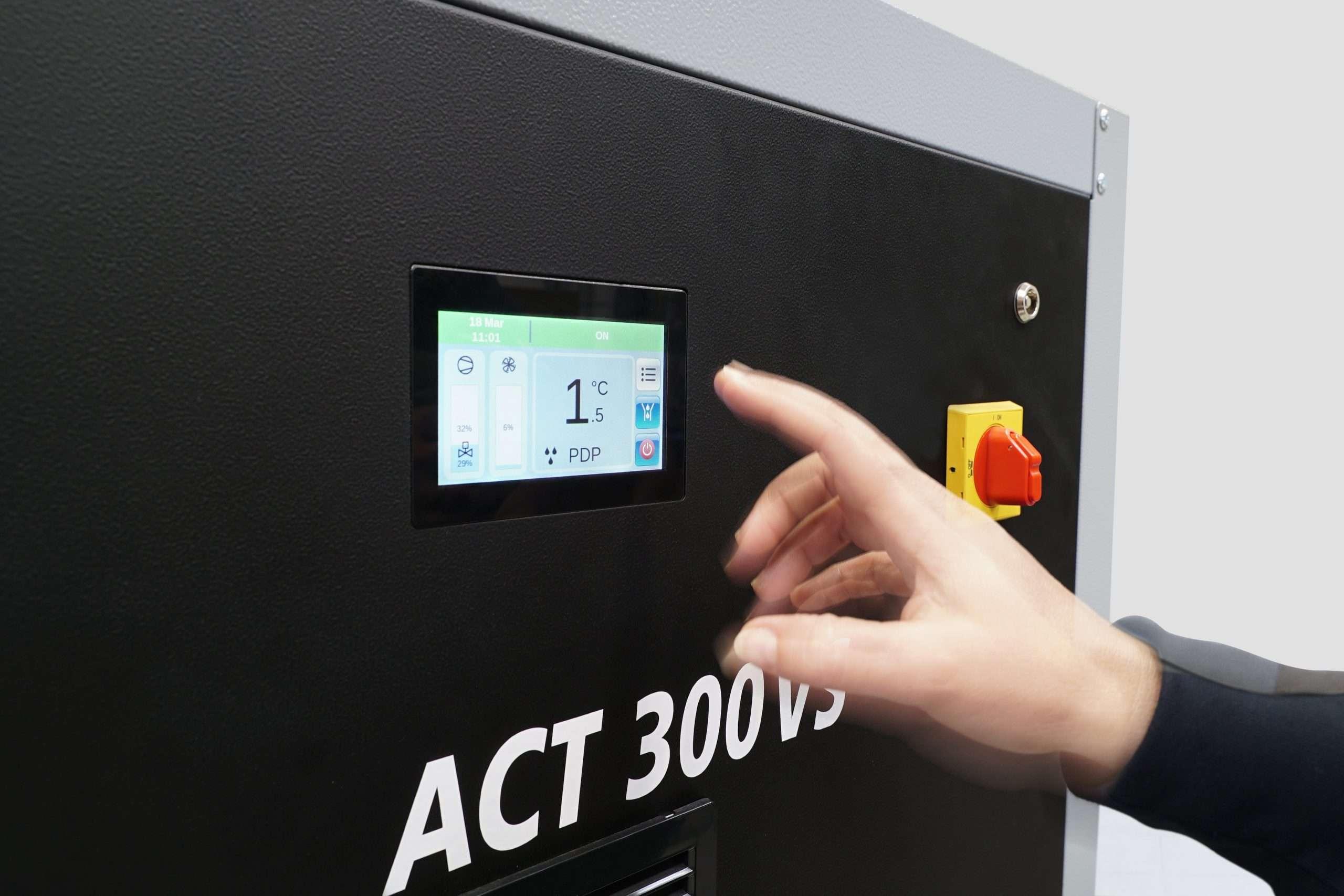

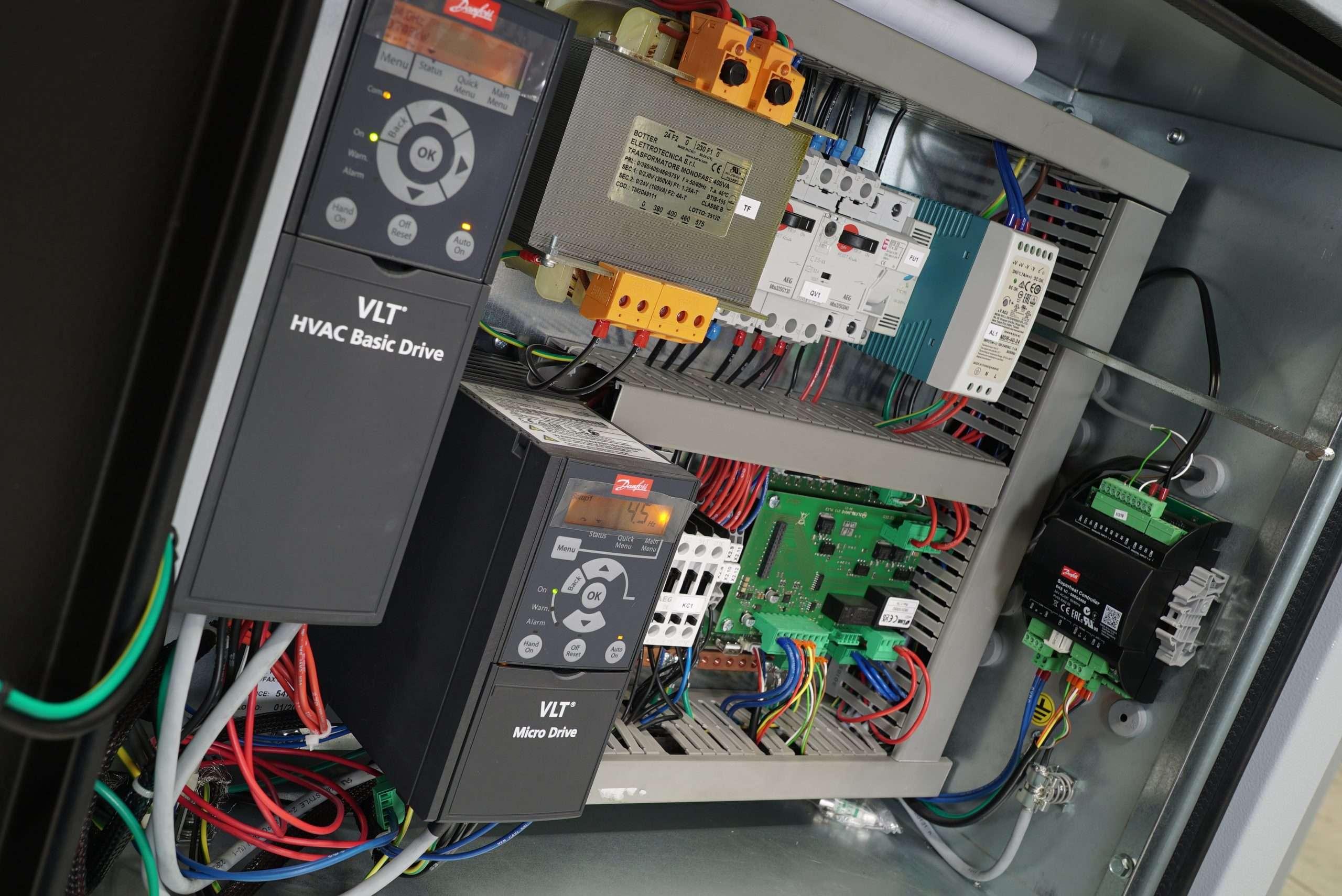

ACT VS ENERGY SAVING is the most advanced Friulair’s refrigeration dryer range. The ACT VS range is equipped with the latest functions and energy saving technology, including a touch screen electronic controller which manages the machine’s operating parameters, controls the refrigerant’s compression and condensation speed using dedicated inverters. This allows the dryer to adapt its operation, and related consumption, to the energy demand to maintain a +3°C dew point. To achieve energy savings, the range is equipped with a standard capacitive condensate drain which prevents the expulsion of compressed air together with condensed water. ACT VS has the advantages of the ACT PREMIUM range, and it lowers running costs compared to the standard version, which can be easily calculated by using the selection software developed for the energy-saving range.

The graph compares the power consumption of the ACT VS dryer to the equivalent standard ACT model at different load conditions. The various operating modes of the ACT VS dryer which can be set directly from the controller display are represented on the right of the graph.

Graphs_ACTVS

MAXIMUM WORKING CONDITIONS
   Ambient temperature: + 45°C
   Inlet air pressure: 14 barg
   Inlet air temperature: + 70°C

ModelRefrigerantAir flowPower SupplyConnections
[Type][m3/h][l/min][scfm][Ph/Volt/Fr][ Ø ]
ACT 210 VSR 134.a1 26021 000742DN80 PN163/400/50-60
ACT 300 VSR 407C1 80030 0001 060DN80 PN163/400/50-60
ACT 360 VSR 407C2 20836 8001 300DN80 PN163/400/50-60
ACT 400 VSR 407C2 40040 0001 413DN100 PN163/400/50-60
ACT 500 VSR 407C3 00050 0001 766DN100 PN163/400/50-60
ACT 600 VSR 407C3 60060 0002 119DN100 PN163/400/50-60
ACT 720 VSR 407C4 41673 6002 600DN100 PN163/400/50-60
ACT 900 VSR 407C5 40090 0003 178DN150 PN163/400/50-60
ACT 1100 VSR 407C6 624110 4003 900DN150 PN163/400/50-60
ACT 1200 VSR 407C7 200120 0004 238DN200 PN163/400/50-60
ACT 1500 VSR 407C8 832147 2005 200DN200 PN163/400/50-60
ACT 1800 VSR 407C10 800180 000 6 3603/400/50DN200 PN16
ACT 2200 VSR 407C13 248220 8007 8003/400/50DN200 PN16
ACT 2400 VSR 407C14 400240 0008 4763/400/50DN250 PN16
ACT 3000 VSR 407C17 664294 40010 4003/400/50DN250 PN16



Data refer to the following nominal condition: ambient temperature + 25 °C; inlet air pressure 7 barg; inlet air temperature +35 °C.

OPTIONS AND ACCESSORIES

TAC

Anti corrosion treatment

BK

Zero loss drain

WC

Water Cooling with plates condenser

WC

Water cooling. Tube bundle condenser

SERVICE UNIT

8.000 hours maintenance kit for BK type electronic drain

BY-PASS

By-pass group
