Industry 4.0 Ready
Made in Italy

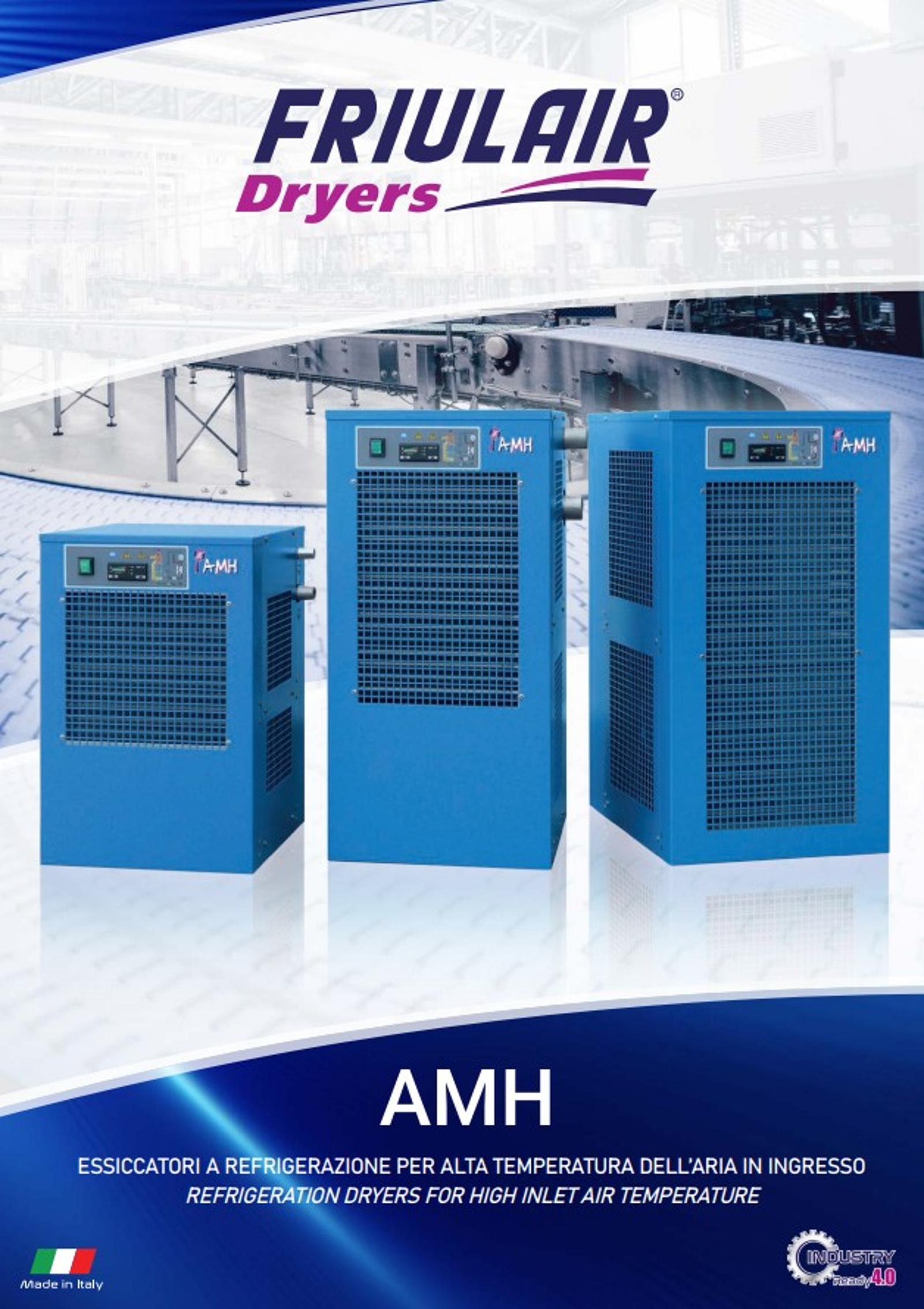

Low Outlet Temperature Refrigeration Dryers

Flow rate: 12 ÷ 720 m3/h

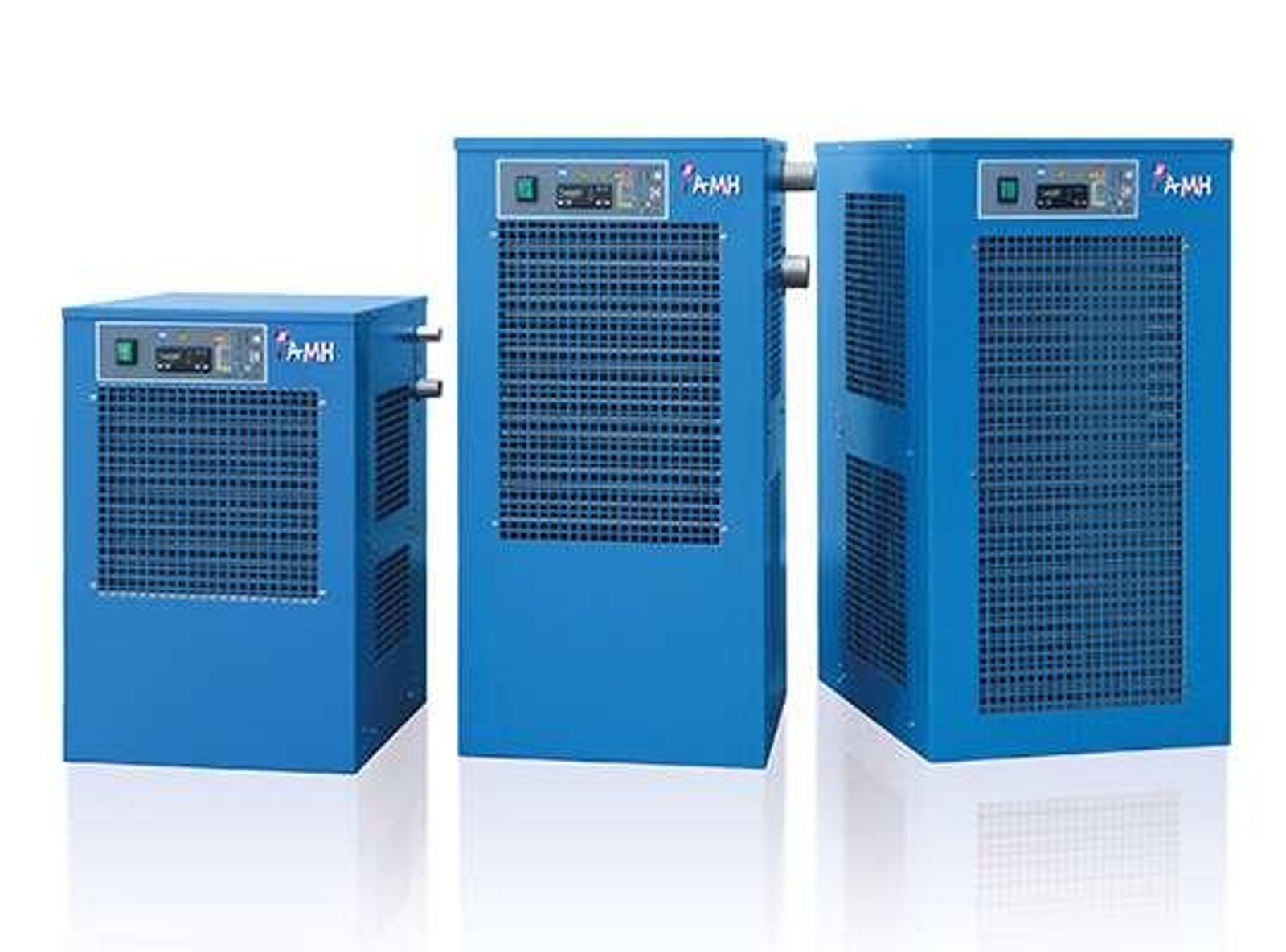

The AMH range of refrigerant cycle dryers is used in situations with high temperature inlet compressed air produced by piston compressors.

Main features

The AMH range of refrigerant cycle dryers is used in situations with high temperature inlet compressed air produced by piston compressors. It is an evolution of the AMD range and synonymous with quality and performance. It incorporates the pre-cooler (air-to-air exchanger with copper pipes and aluminium cooling fins) in a single unit. This lowers the incoming air temperature using ambient air. Subsequently, the cooled compressed air enters the refrigerant cycle dryer and then the ALU-DRY drying module. The functions are managed by the electronic controller (INDUSTRY 4.0 ready). The AMH range advantage is that it encapsulates the latest technologies in a compact and cost-effective design. It guarantees optimum compressed air treatment performance.

MAXIMUM WORKING CONDITIONS
   Ambient temperature: + 45°C
   Inlet air pressure: 16 barg (AMH8÷18) - 14 barg
   Inlet air temperature: + 90°C

ModelRefrigerantAir flowPower SupplyConnections
[Type][m3/h][l/min][scfm][Ph/Volt/Fr][ Ø ]
AMH 8R 134.a48800281/230/50G 1/2” BSP-F
AMH 12R 134.a721 200421/230/50G 1/2” BSP-F
AMH 18R 134.a1081 800641/230/50G 1/2” BSP-F
AMH 25R 134.a1502 500881/230/50G 1” BSP-F
AMH 32R 134.a1923 2001131/230/50G 1.1/4” BSP-F
AMH 45R 407C2704 5001591/230/50G 1.1/4” BSP-F
AMH 8R 134.a48800281/230/50G 1/2” BSP-F
AMH 12R 134.a721 200421/230/50G 1/2” BSP-F
AMH 18R 134.a1081 800641/230/50G 1/2” BSP-F
AMH 25R 134.a1502 500881/230/50G 1” BSP-F
AMH 32R 134.a1923 2001131/230/50G 1.1/4” BSP-F
AMH 45R 407C2704 5001591/230/50G 1.1/4” BSP-F

Data refer to the following nominal condition: ambient temperature + 32 °C; inlet air pressure 7 barg; inlet air temperature +80 °C.

OPTIONS AND ACCESSORIES

TAC

Anti corrosion treatment

BK

Zero loss drain

SERVICE UNIT

8.000 hours maintenance kit for BK type electronic drain
