FCT

Eco-Friendly
Industry 4.0 Ready
Made in Italy

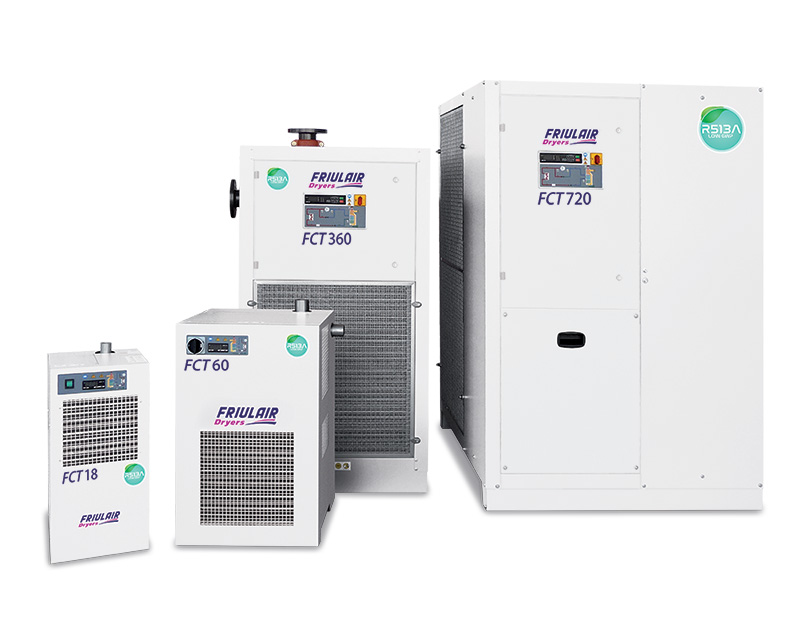

Refrigeration Dryers With Low Gwp R513a Refrigerant

Flow rate: 21 ÷ 8 830 m3/h

The FCT ECO-FRIENDLY range of refrigerant cycle dryers has been developed recently to replace traditional refrigerants with the latest generation.

Main features

The FCT ECO-FRIENDLY range of refrigerant cycle dryers has been developed recently to replace traditional refrigerants with the latest generation. The R513a refrigerant gas has a low environmental impact (GWP = 613 CO2 ton/eq), under applicable European and international regulations. Based on the tried and tested ACT range, it has a low energy consumption, even under extreme load conditions. This is due to the ALU-DRY exchanger reduced pressure drop, latest generation compressors, control valve, hot gas by-pass and capacitive drains (standard from FCT180 and optional for lower sizes). The +3°C dew point is maintained even when operating conditions change.

The range standard electronic controllers are equipped with an RS485 port for connectivity to the company’s management system (INDUSTRY 4.0 ready). Water-cooled version on demand from FCT55.

MAXIMUM WORKING CONDITIONS
   Ambient temperature: + 50°C
   Inlet air pressure: 16 barg (ACT3÷18) - 14 barg
   Inlet air temperature: + 70°C

ModelRefrigerantAir flowPower SupplyConnections
[Type][m3/h][l/min][scfm][Ph/Volt/Fr][ Ø ]
FCT 3R 513A21350121/230/50-60G 1/2” BSP-F
FCT 5R 513A33550191/230/50-60G 1/2” BSP-F
FCT 8R 513A51850301/230/50-60G 1/2” BSP-F
FCT 12R 513A721 200421/230/50-60G 1/2” BSP-F
FCT 18R 513A1081 800641/230/50-60G 1” BSP-F
FCT 23R 513A1382 300811/230/50G 1” BSP-F
FCT 30R 513A1863 1001091/230/50G 1.1/4” BSP-F
FCT 40R 513A2404 0001411/230/50G 1.1/4” BSP-F
FCT 55R 513A3305 5001941/230/50G 1.1/2” BSP-F
FCT 60R 513A3726 2002191/230/50G 1.1/2” BSP-F
FCT 80R 513A4868 1002861/230/50G 2” BSP-F
FCT 100R 513A63010 5003711/230/50G 2” BSP-F
FCT 120 3~R 513A75012 5004413/400/50G 2.1/2” BSP-F
FCT 140 3~R 513A87014 5005123/400/50G 2.1/2” BSP-F
FCT 160 3~R 513A96016 0005653/400/50G 2.1/2” BSP-F
FCT 180R 513A1 08018 0006363/400/50DN80 PN16
FCT 210R 513A1 26021 0007423/400/50DN80 PN16
FCT 250R 513A1 50025 0008833/400/50DN80 PN16
FCT 300R 513A1 80030 0001 0603/400/50DN80 PN16
FCT 360R 513A2 20836 8001 3003/400/50DN80 PN16
FCT 400R 513A2 40040 0001 4133/400/50DN100 PN16
FCT 500R 513A3 00050 0001 7663/400/50DN100 PN16
FCT 600R 513A3 60060 0002 1193/400/50DN100 PN16
FCT 720R 513A4 41673 6002 6003/400/50DN100 PN16
FCT 900R 513A5 40090 0003 1783/400/50DN150 PN16
FCT 1100R 513A6 624110 4003 9003/400/50DN150 PN16
FCT 1200R 513A7 200120 0004 2383/400/50DN200 PN16
FCT 1500R 513A8 832147 2005 2003/400/50DN200 PN16


Data refer to the following nominal condition: ambient temperature + 25 °C; inlet air pressure 7 barg; inlet air temperature +35 °C.

OPTIONS AND ACCESSORIES

TAC

Anti corrosion treatment

BK

Zero loss drain

WC

Water cooling. Tube bundle condenser

SERVICE UNIT

8.000 hours maintenance kit for BK type electronic drain

BY-PASS

By-pass group
