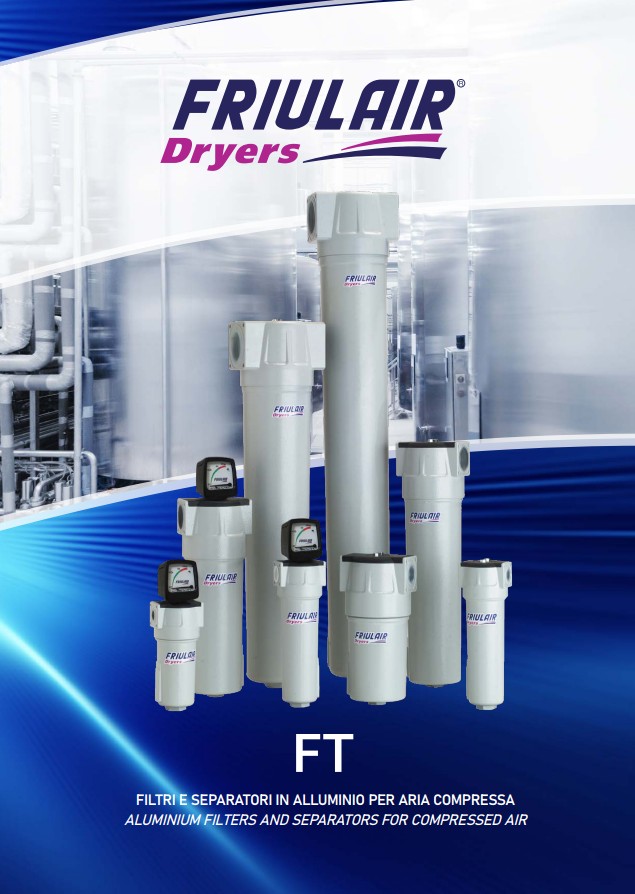

COMPRESSED AIR FILTERS

Flow rate: 51 ÷ 2520 m3/h

The FT range of filters guarantees the filtration of compressed air pollutants or other gases...

Main features

The FT range of filters guarantees the filtration of compressed air pollutants or other gases, such as oil, water vapour and solid particles, originating from corrosion of mechanical parts or present in the atmosphere, avoiding possible problems for pneumatic equipment and installation damage. Robust and durable, with the anti-corrosion and powder coating treatments, FT filters are equipped with a depressurisation safety device for easy removal of the cartridges. Five filtration types are available, or the cyclone separation version. They are clearly identified by the colour of the plastic end caps or shape. The filter cartridges are composed of two cylindrical stainless-steel meshes, with an internal pleated borosilicate filter. The outer non-woven fabric coating can handle compressed air contaminated with mineral or synthetic oil particles. The push-fit cartridge connection with double O-ring ensures quality filtration and easy removal for normal service operations.

Main Components

Filter body in anodized aluminum, easy bowl removal

Filter element with inner and outer supports in stainless steel, double polyester needle felt sock

Condensate drain: standard ATD03, SCG20 or MDR04 according to the model.

Vessel design conditions:

Pressure: 16 barg

Temperature: + 120°C

Recommended working temperature

1,5 ÷ 65°C with cartridge P (3 micron); S (1 micron); M (0,1 micron); X (0.01 micron)

1,5 ÷ 45°C with cartridge Z (carbon attivo)

Installation diagram

Diagramma installazione FT
ModelCartridgeAir flowConnections
[Modello][m3/h][l/min][scfm][ Ø ]
FT * 008T * 0085185030G 3/8”
FT * 012T * 012721 20042G 1/2”
FT * 018T * 0181111 85065G 3/4”
FT * 030T * 0301983 300116G 1”
FT * 055T * 0553305 500194G 1.1/2”
FT * 080T * 0804868 100286G 1.1/2”
FT * 120T * 12075012 500441G 1.1/2”
FT * 160T * 1601 00816 800593G 2”
FT * 250T * 2501 56026 000918G 2.1/2”
FT * 400T * 4002 52042 0001 483G 3”

Data refer to the following nominal condition: inlet air pressure 7 barg; inlet air temperature +35 °C.
[*] Filtration grade: P (5 micron); S (1 micron); X (0.01 micron); Z (Activated carbon).

Filtration gradeAir QualityApplication example

P

3 MICRON

Filter capable to separate emulsion and particles down to 3 micron. Normal installed on the inlet of dryers. Ideal as pre-filter for on-line filters (series S-X-Z), and for vacuum pumps, pneumatic blowing plants.

S

1 MICRON

Filter capable to separate particles down to 1 micron, liquid and oil included. Maximum contents of residual oil 0,1 mg/m3.Normally used on outlet of dryers as (X) grade pre-filter. Used to prevent the deterioration of the pipes of compressed air plants, for surface treatment, on vacuum pumps exhaust, on compressed air motors, and as post-filter for adsorption dryers.


X

0,01 MICRON

Oil removing filter capable to separate residual oil and extremely small particles down to 0,01 mg/m3. It produces air technical free from oil. Used for the protection of control system, pneumatics haulage, painting system and as pre-filter for adsorption dryers.

Z

Carbone Attivo



Activated carbon filter for the elimination of oil vapours and odour. When installed after a (X) grade filter, it lowers the maximum contents of residual oil to 0,003 mg/m3. Used in the pharmaceutical industry, for dental applications, in photographic workshop, packaging and galvanic treatments.

OPTIONS AND ACCESSORIES

MDR04

Manual condensate drain

ATD03

Internal float condensate drain

SCG20

Automatic float condensate drain

ATD02

Automatic mini float condensate drain

SCE02

Automatic timed condensate drain

SCE04

Automatic timed condensate drain

SEC11

Zero Loss Drain

SEC12

Zero Loss Drain

CLI02

Clogging indicators

DIG02

High accuracy differential gauge

DIG04

Differential gauge

DIG06

Differential gauge with volt free electric contact (cable L.1,80 m)


    Scroll the accessories
