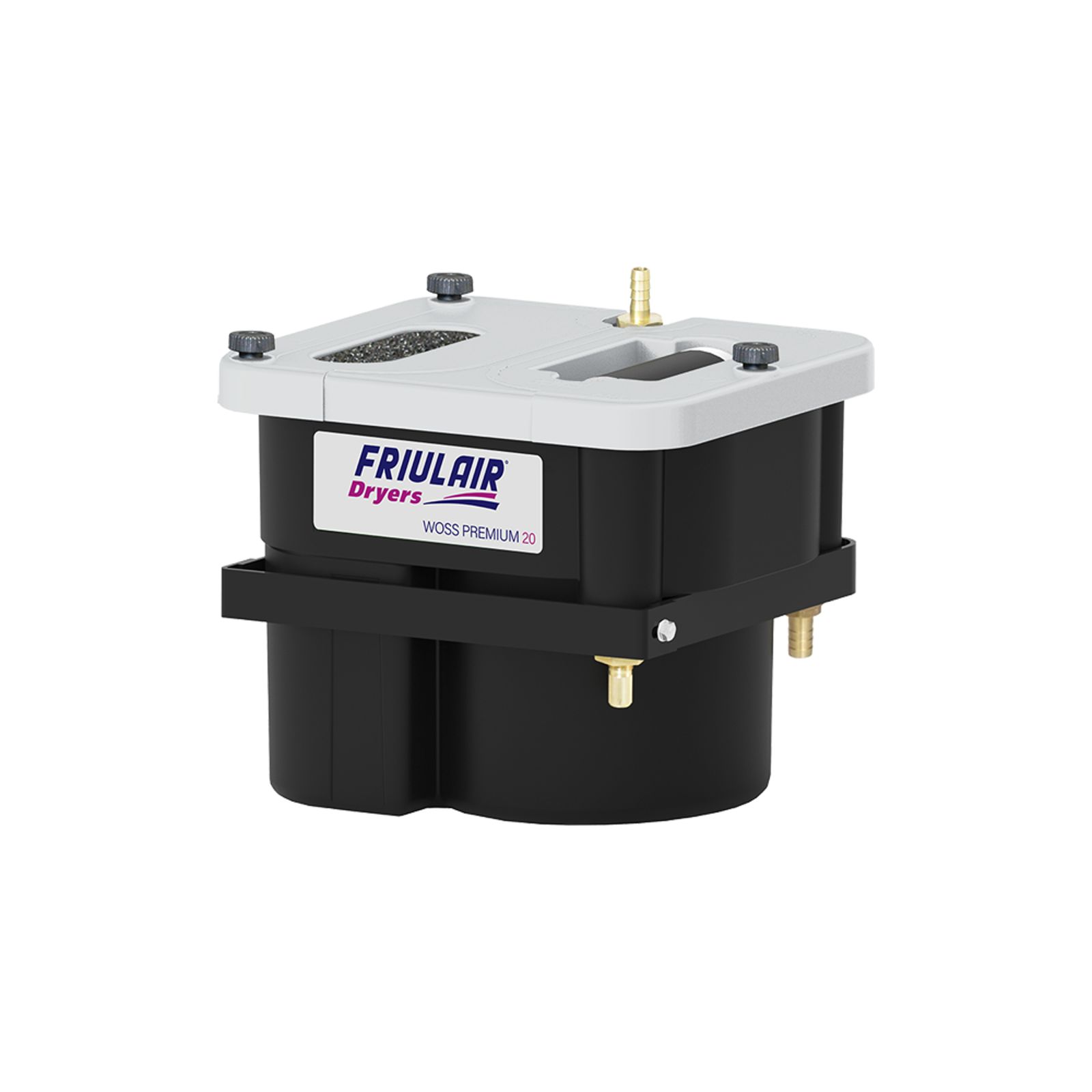

OIL/WATER SEPARATORS FOR CONDENSATE

Water-oil separator of condensates from compressors, dryers, filters and storage tanks...

Main features

Water-oil separator of condensates from compressors, dryers, filters and storage tanks. This device separates oil from the water produced by the compressor system to clean it, under current national regulations. The water can be discharged while the oil is retained by the equipment’s filtering system and disposed of under local regulations. When choosing a WOSS water-oil separator, CONSIDER the type of oil that is used in the compressed air compressor and the geographical area. With these two parameters (and the air volume) we can decide the WOSS condensate separator model.

MAXIMUM WORKING CONDITIONS
   Pressure: 16 barg

CAPACITY AND CLIMATE DATA

It is recommended to select the WOSS oil/water separation syste following the 3 climate zones shown in the colored table of the technical data above to assure separator efficiency.

WOSS_MAP_WEB
Model  Maximum performance of the compressor (m3/min)
Compressor type / Oil typePiston Compressor
OliSynthetic Oil [*]Oli Synthetic Oil [*]
Turbina VDLVCLPAOEsterVDLPAOEster
WOSS 242.82.82.12.11.81.91.61.8
2.42.41.91.91.61.71.41.6
2.12.11.61.61.41.51.21.4
WOSS 495.55.54.24.23.63.83.23.7
4.94.93.83.83.23.42.83.2
4.24.23.23.22.82.92.42.8
WOSS 738.58.56.56.55.55.94.95.6
7.37.35.65.64.85.14.24.9
6.26.24.84.84.04.33.64.1
WOSS 14616.916.913.013.011.111.79.811.2
14.614.611.311.39.610.18.49.7
12.512.59.69.68.28.77.28.3
WOSS 29333.633.625.925.922.023.319.422.3
29.329.322.522.519.120.316.919.4
24.924.919.119.116.317.214.316.5
WOSS 58367.367.351.851.844.046.638.844.6
58.558.545.045.038.340.522.838.3
49.749.738.332.534.428.728.733.0

Synthetic oil: Possible performance deviation PAO: +/- 20% Ester: +/- 40%
