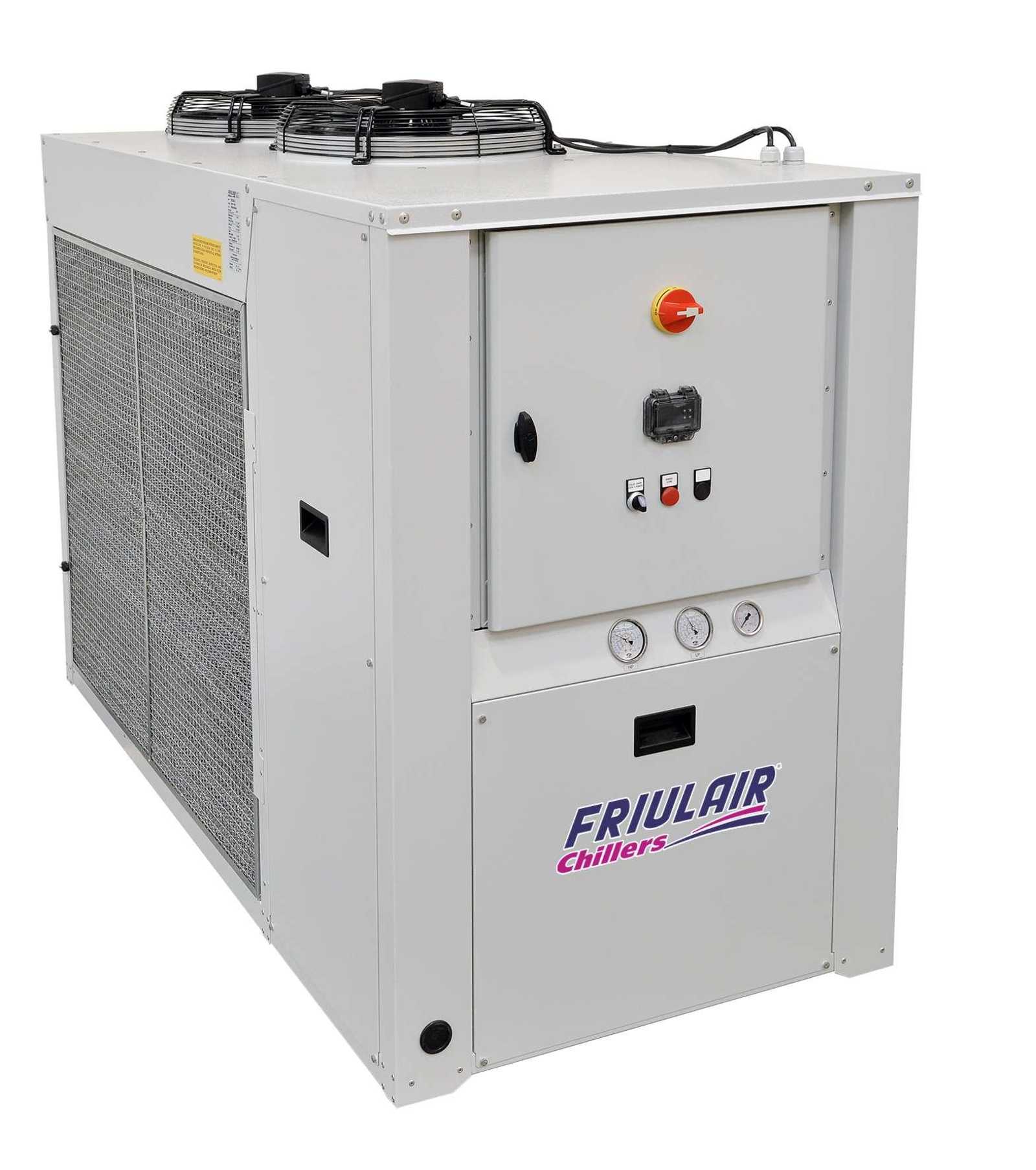

The new CEN range is specifically designed to meet the application requirements of wineries by offering precise control of refrigerated water temperature while operating over long time periods with varying load demands. The range includes 14 models with cooling capacities from 10 to 96 kW. It is designed for outdoor installation, with specific standard components especially indicated at low temperatures.:
EASY MAINTENANCE
All frame and cabinet cover material is made of galvanized steel that is then powder coated, making the CEN suitable for outdoor installation and for protection in harsh environments.

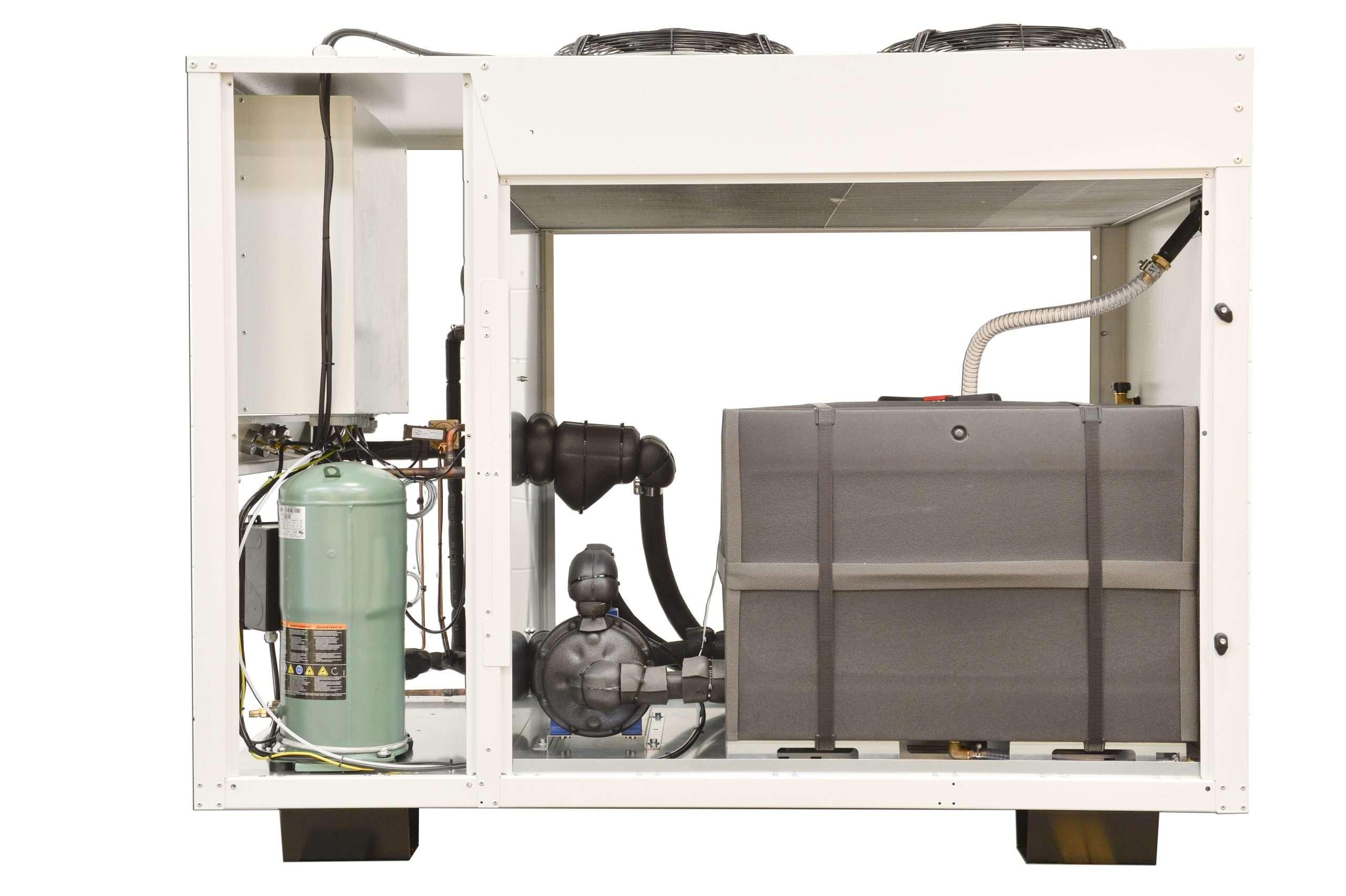

The compressor cabinet is separate from the fan’s section and is accessible on three sides to make control and maintenance easy. The hydraulic section is also easily accessible.
ALTERNATIVE REFRIGERANT GAS
As an alternative to R410A, the CEN range is available with eco-friendly R454B refrigerant gas, with low environmental impact and GWP (global warming potential) of 466.
| Cooling Capacity 12/7 @35 °C * | Seasonal energy efficiency rating | Cooling Capacity -5/-8 @35 °C * | Energy efficiency rating | |
| [kW] | SEPR HT | [kW] | EER | |
| CEN 010 | 11.04 | 5.14 | 6.37 | 1.95 |
| CEN 014 | 15.98 | 5.19 | 9.01 | 1.81 |
| CEN 019 | 19.76 | 5.02 | 11.53 | 1.95 |
| CEN 025 | 28.93 | 5.05 | 16.65 | 2.07 |
| CEN 027 | 32.07 | 5.1 | 18.58 | 2.06 |
| CEN 033 | 35.06 | 5.06 | 20.38 | 2.02 |
| CEN 038 | 39.89 | 5.01 | 23.47 | 1.94 |
| CEN 046 | 49.88 | 5.01 | 29.39 | 1.68 |
| CEN 052 | 51.81 | 5.19 | 30.33 | 1.84 |
| CEN 056 | 55.9 | 5.08 | 32.8 | 1.75 |
| CEN 063 | 62.66 | 5.2 | 36.46 | 1.78 |
| CEN 076 | 74.57 | 5.12 | 43.03 | 1.76 |
| CEN 088 | 88.21 | 5.22 | 50.87 | 1.81 |
| CEN 096 | 95.74 | 5.05 | 55.6 | 1.71 |
* Data referred to: Water Temperature IN/OUT @ Air Air °C
SEPR HT / EER data meet the requirements of the European Regulation (EU) 2016/2281 for eco-design.
The complete technical data can be found in the product brochure.
TheCEN chiller seriesis highly configurable
