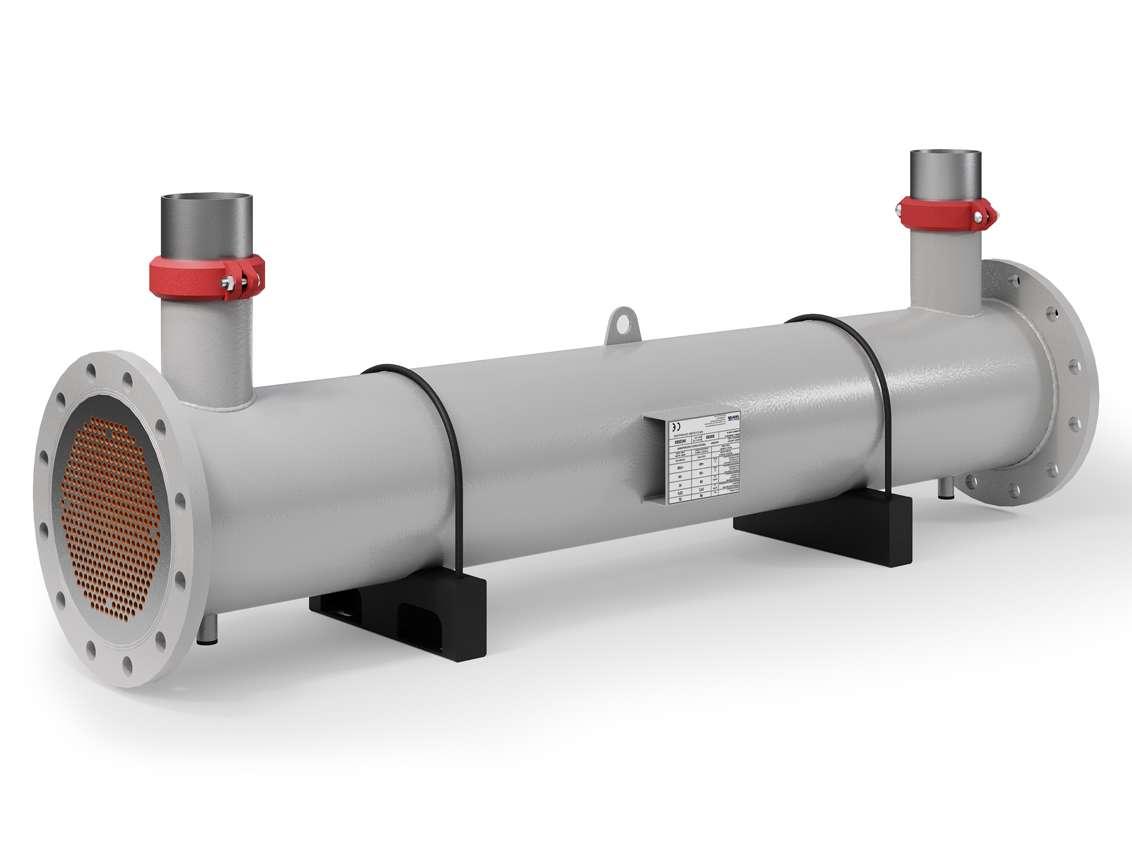

AIR/WATER-COOLED SHELL AND TUBE AFTERCOOLERS

Flow rate: 160 ÷ 11 000 m3/h

Water-cooled shell and tube aftercoolers can be used to cool compressed air easily and effectively...

Main features

The counter-current heat exchanger allows the compressed air temperature to be reduced to the required conditions, optimising the downstream process. This is the case for adsorption dryers which prefer moderate inlet temperatures achievable with the WFR. The air temperature obtained is slightly higher than the water temperature.
Cooling compressed air, which is in most cases humid, leads to the formation of condensate, which can be separated by a cyclone FTC or WCS condensate separator installed at the heat exchanger outlet.

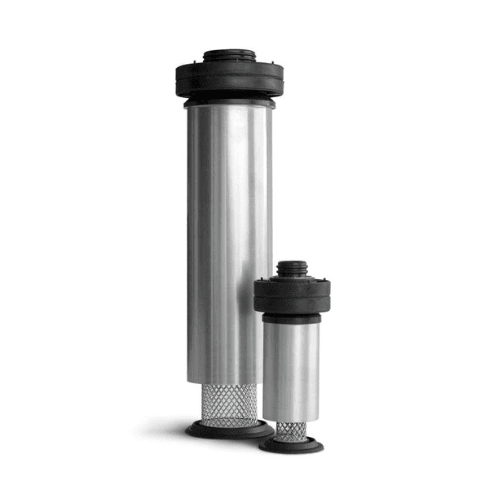

FTC separators in our FT series, have an aluminium body and cyclone cartridge and are equipped with an automatic float-controlled condensate drain.

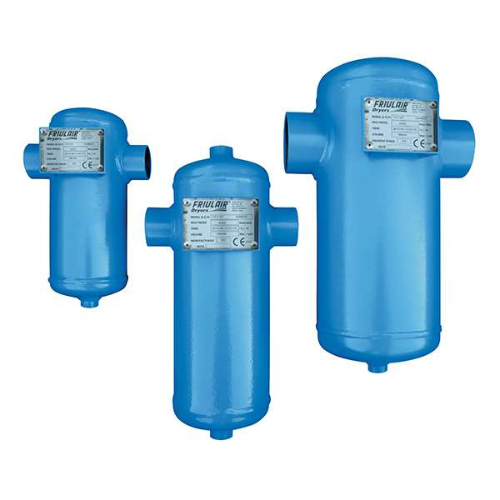

WCS separators have a carbon steel body and a cyclone separator with manual drain.

DESIGN CONDITIONS

Maximum compressed air inlet temperature: 150°C (FTC 120°C)

Maximum compressed air pressure: 16 barg

Maximum water inlet temperature: 90°C

Maximum water pressure: 10 bar

Minimum ambient temperature: 1°C

ModelFlow rate
[m3/h][lt/min][m3/min]
WFR2716026672.7
WFR4225041674.2
WFR7545075007.5
WFR1257501250012.5
WFR16010001666716.7
WFR27016002666726.7
WFR35021003500035
WFR45027004500045
WFR56034005666756.7
WFR80048008000080
WFR10006200103333103.3
WFR12507500125000125
WFR180011000183333183.3

Performance referred to: compressor air intake conditions 25°C/ rh 50%; compressed air inlet temperature 120°C; compressed air inlet pressure 7 barg; water inlet temperature 20°C; compressed air outlet temperature +10°C compared to water inlet temperature; outlet relative humidity 100%.
