SCG - ATD

AUTOMATIC TIMED CONDENSATE DRAINS

Waste of compressed air is limited. Simple and cheap solution to drain condensates...

Main features

Waste of compressed air is limited. Simple and cheap solution to drain condensates.

SCG20 and ATD02 are usually used as accessories of:

FT: Aluminium filters and separators for compressed air

FW: Flanged filters for compressed air

LF: Spin on type filters for compressed air

AFR: Air/Air aftercoolers

CCS: Carbon steel condensate separators

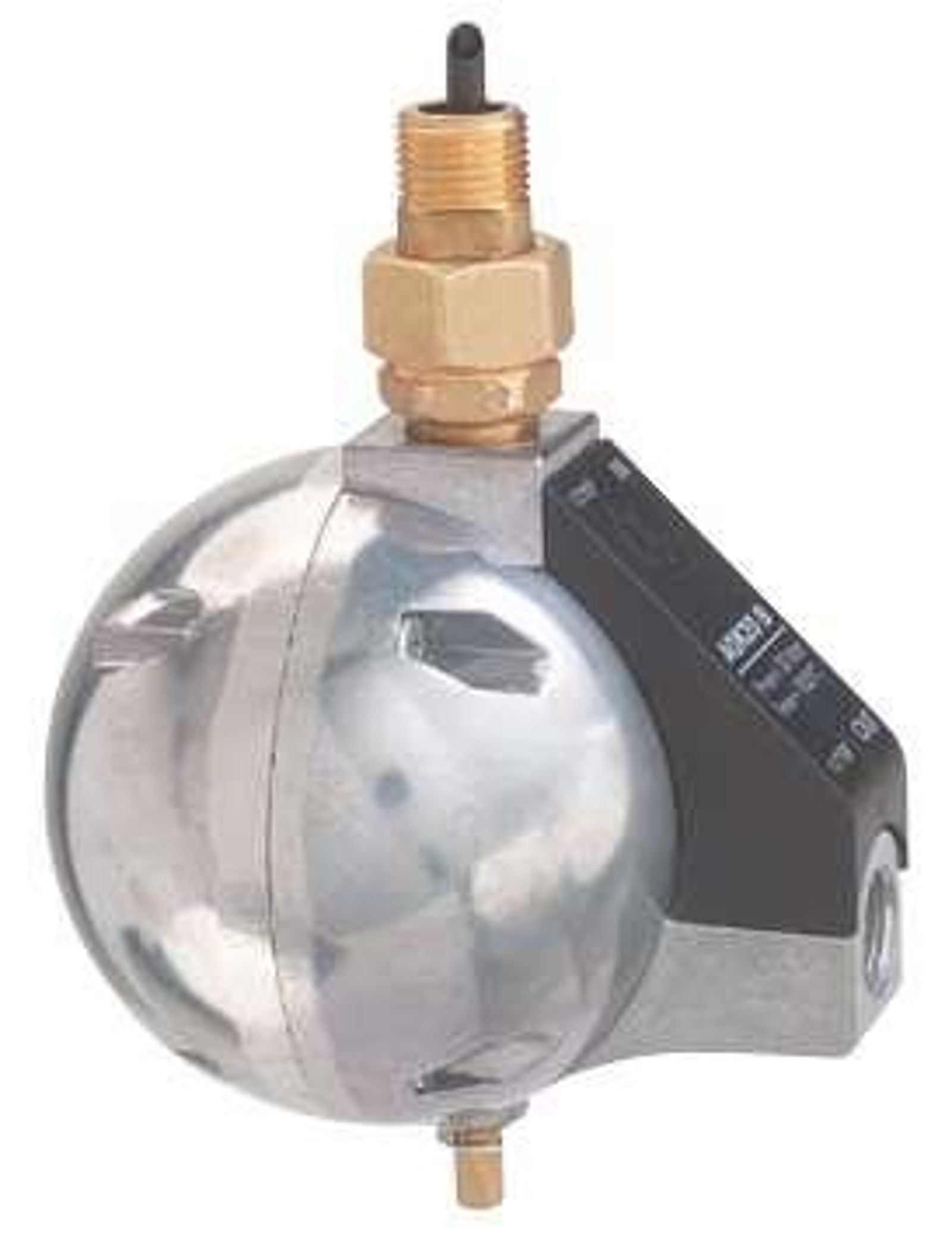

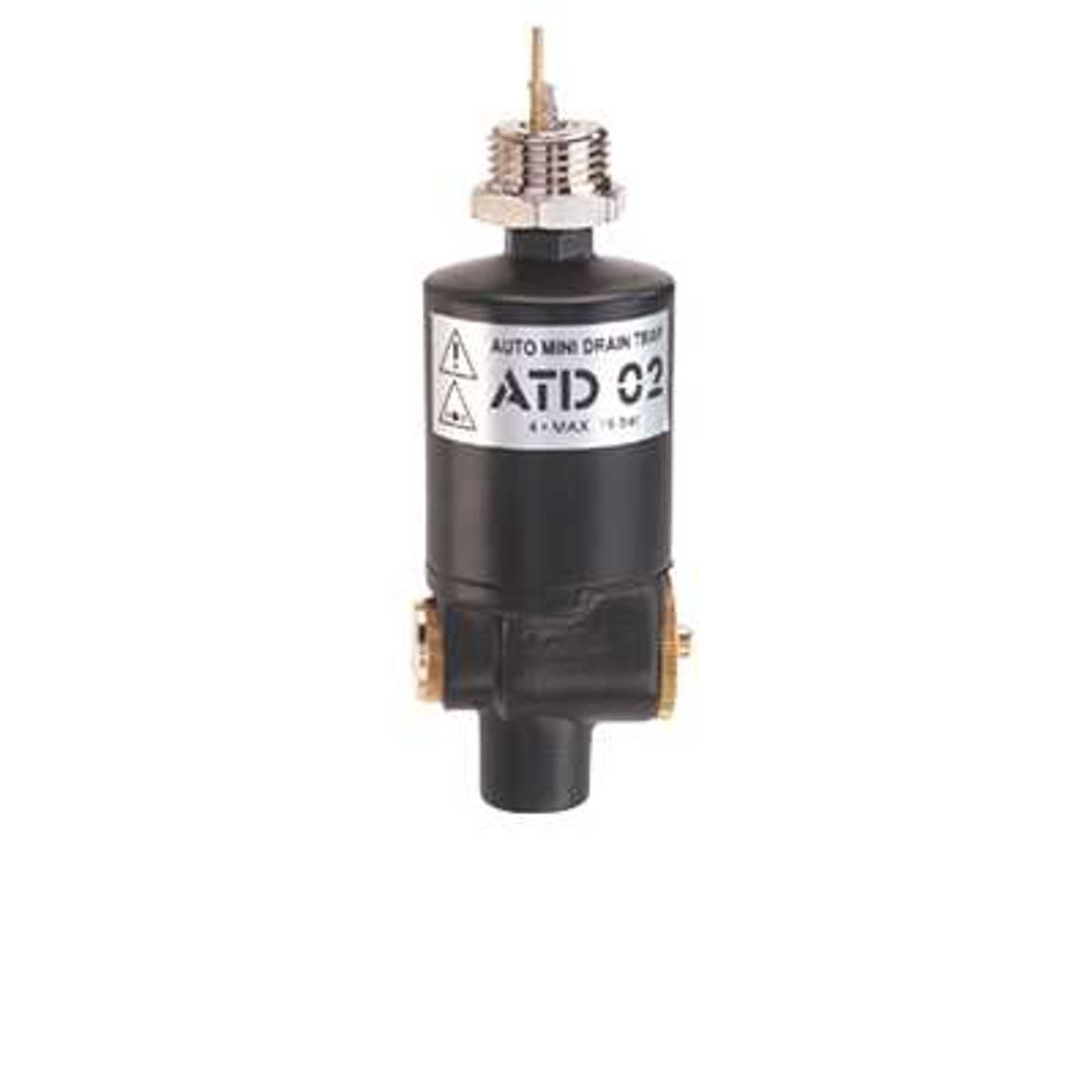

MODELLO / MODEL SCG 20 ATD 02
Air flow [l/min]

Compressor 75000 N.A.
Filter 750000 N.A.
Inlet connections [0] G 1/2” BSP-M G 1/8” BSP-M
Drain Connections [0] G 1/2” BSP-F G 1/2” BSP-M*
Max Pressure. [barg] 20 16
